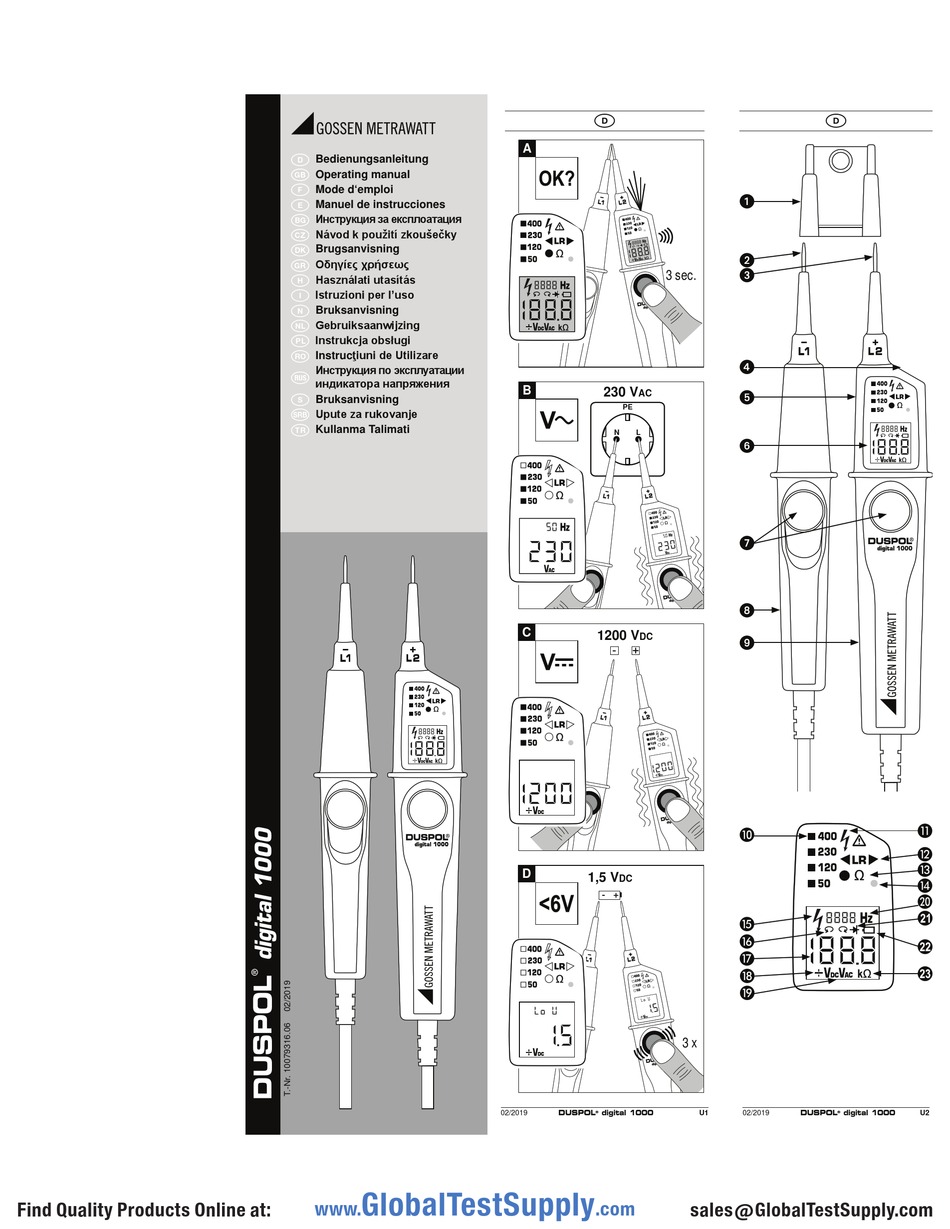

  • Page 1 Bedienungsanleitung Operating manual Mode d‘emploi Manuel de instrucciones Brugsanvisning 3 sec. Bruksanvisning Instruc 230 V Bruksanvisning 1 SRB Kullanma Talimati 1200 V 1,5 V 02/2019 DUSPOL digital 1000 02/2019 DUSPOL digital 1000 ® ® GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 2 230 V 230 V R = 47 k 1 sec. 02/2019 DUSPOL digital 1000 02/2019 DUSPOL digital 1000 02/2019 DUSPOL digital 1000 02/2019 DUSPOL digital 1000 ® ® ® ® GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 3 230 V 200 V Überspannungskategorie: CAT IV 600 V, CAT III 1000 V Schutzart: IP 65 (DIN VDE 0470-1 IEC/EN 60529) 6 - erste Kennziffer: Schutz gegen Zugang zu gefähr lichen Teilen und Schutz gegen feste Fremdkörper, staubdicht 5 - zweite Kennziffer: Geschützt gegen Strahlwasser. Auch bei Niederschlägen verwendbar.
  • Page 4 presence or absence of operating voltage in case of the presence of interference voltage. Low-impedance voltage tester ference voltage is suppressed or reduced: A voltage tester of relatively low internal impedance, compared ence voltages having an original voltage value above the ELV level (50 V AC/ 120 V DC).
  • Page 5 play, all LEDs (running light) as well as the back- ground and measuring point illumination must be functioning. Test the voltage tester with familiar voltage sources, e.g. with a 230 V socket. Do not use the voltage tester, if the voltage indication, the phase indication and the vibration motor are not working properly! Checking the absence of voltage of an installation...
  • Page 6 sure a capacitive coupling to earth. Apply the probe tips L1/- and L2/+ to two external conductors (phases) and check whether the external con- ductor voltage of e.g. 400 V is applied. A clockwise phase sequence (phase L1 before phase L2) dication and the symbol of the phase sequence...
  • Page 7 Make sure that the new batteries are inserted with correct polarity! Place the battery compartment cover onto the display handle L2 and tighten the screw. 14. Technical data regulation: DIN EN 61243-3: 2015, IEC 61243-3: 2014 nominal voltage range: 1 V to 1,000 V AC TRUE RMS/ 1,200 V DC nominal frequency range f: 0 to 1000 Hz* * according...
