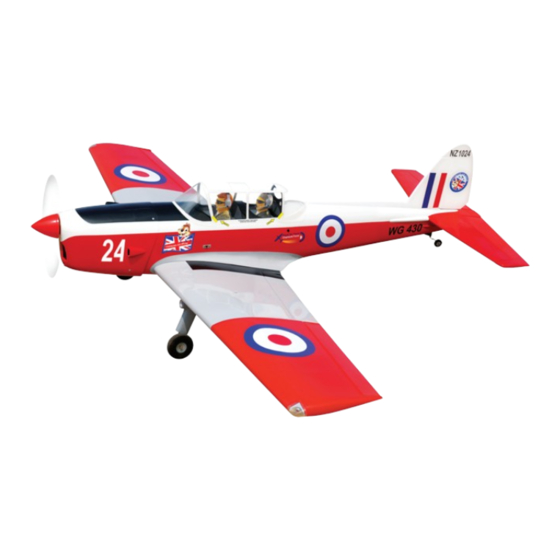

CHIPMUNK
STAINLESS STEEL OLEO STRUTS LANDING GEAR.
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER.
95% ALMOST READY TO FLY
SPECIFICATION:
- Wingspan: 2,170 mm 85.43 in.
- Length: 1,740 mm 68.50 in.
- Weight: 6.6 kg
14.52 lbs.
- Wing area: 74.2dm2.
- Wing loading: 88.95 g/dm2.
- Wing type: Naca Airfoil.
- Servo mount: (42 x 21)mm.
- Gear type: Oleo struts (included).
- Tail gear type: Spring wire for tail gear (included).
- Spinner: 80 mm.
Instruction Manual Book
Item code: BH63
Parts listing required (not included):
- Radio: 06 channels.
- Servo: 08 standard high torque servos
- Engine: 30-35 cc Gas.
- Motor: Brushless outrunner 2500 - 3200W, 250KV.
- Propeller: Suit with your engine.
Recommended Motor and Battery set up
(not included):
- Motor: RIMFIRE.1.60.
- Lipo cell: 12 cells 4,000-5,500mAh.
- Receiver battery: 6V/ 1200mAh.
- ESC: 80A.
Glow and EP
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHIPMUNK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model CHIPMUNK

Summary of Contents for Black Horse Model CHIPMUNK

  • Page 1 Instruction Manual Book Item code: BH63 CHIPMUNK Glow and EP STAINLESS STEEL OLEO STRUTS LANDING GEAR. ALL BALSA - PLY WOOD CONSTRUCTION. COVERED WITH ORACOVER. 95% ALMOST READY TO FLY Parts listing required (not included): SPECIFICATION: - Radio: 06 channels.

  • Page 2: Table Of Contents

    Thank you for purchasing Black Horse Model products. With over 18 years experience in production and fly testing, Black Horse Model is committed to bring the best quality products and good service to customers. Along with a team of creative engineers and skilled workers, we will always accompany with customers by our great experiences, fully enthusiasm...

  • Page 3: Warranty

    In that Black Horse Model has no control over the final assembly or material used for final assembly, SUGGESTION Black Horse Model is not responsible for loss of use , or other incidental or consequential damages. To avoid scratching your new airplane, do not...
  • Page 4 CHIPMUNK Item code: BH63 Instruction Manual FLIGHT WARNINGS ADHESIVES AND REQUIRED TOOLS When ready to fly, first extend the transmitter aerial. Thin CA Switch on the transmitter. 30-minute epoxy Switch on the receiver. 6-minute epoxy Check that the wings are correctly fitted to the Threadlocker thread locking cement fuselage.
  • Page 5 CHIPMUNK Item code: BH63 Instruction Manual • Officially designated AMA Air Show Teams (AST) are authorized to use devices and practices as defined within the Team AMA Program Document. (AMA Document #718.) (j) Not operate a turbine-powered aircraft, unless in compliance with the AMA turbine regulations. (AMA Document #510-A.)

  • Page 6: Parts Listing (Not Included)

    CHIPMUNK Item code: BH63 Instruction Manual PARTS LISTING (NOT INCLUDED). Servo extension leads....2 pcs. 330mm ..2 pcs. 190mm ..4 pcs. Engine: 35 cc gas Propeller. Suit with your engine. Motor: RIMFIRE.1.60 LiPo. 6S - 22.2V- 4,000 - 5,500mAh.
  • Page 7 CHIPMUNK Item code: BH63 Instruction Manual : Fuselage. Wood - motor mount : Wing panel (2a, 2b). : Engine mount. : : Spinner set. : Horizontal stabilizer. : Vertical stabilizer : Aluminium wing dihedral brace. : Cockpit fuselage (6a: Canopy, : Pilot, 6c: Top hatch fuselage).

  • Page 8: Installing The Ailerons And Aps

    CHIPMUNK Item code: BH63 Instruction Manual PREPARATIONS Use a covering iron with a covering sock on high heat to tighten the covering if necessary. Apply pressure over sheeted areas thoroughly bond the covering to the wood. INSTALLING THE AILERONS AND FLAPS...

  • Page 9: Installing The Aileron And Ap Servos

    CHIPMUNK Item code: BH63 Instruction Manual INSTALLING THE AILERON AND FLAP SERVO Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out. When you have pulled the servo lead out, remove the...
  • Page 10 CHIPMUNK Item code: BH63 Instruction Manual Flaps Flaps servos. 2 mm approx.16mm For Flap. For Flap. For Flap. 1.5 mm Screw Flap 3x12mm Tp Screw 3mm Hex Nut For Flap. 3mm Flat Washer 3x12mm Cap Screw 2x10mm Flap Tp Screw...
  • Page 11 CHIPMUNK Item code: BH63 Instruction Manual Aileron Aileron servos. 2 mm approx.16mm 3mm Flat Washer Aileron Aileron 3mm Hex Nut 3x12mm Cap Screw Aileron Aileron 1.5mm Screw 96mm 2x10mm Tp Screw Aileron 1.5mm Cut off shaded portion Drill holes using the stated.

  • Page 12: 3X12Mm Tp Screw

    CHIPMUNK Item code: BH63 Instruction Manual Bottom View 2x10mm Tp Screw 2x10mm Tp Screw Tie the string Pull out servo cord with string. Aileron Aileron Aileron 3x12mm Tp Screw Horn 3x12mm Cap Screw Aileron Aileron Flap Flap Flap 3x12mm 3x12mm...

  • Page 13: Installing The Main Gear

    CHIPMUNK Item code: BH63 Instruction Manual 5mm Flatwasher secure 5x40mm Socket Head Cap Screw 5mm Collar INSTALLING THE MAIN GEAR 3x12mm Tp Screw 4x15mm Tp Screw - - - - 6 - - - - 8 5x60mm Socket Head Cap Screw...

  • Page 14: Installing The Fuselage Servos

    CHIPMUNK Item code: BH63 Instruction Manual Bottom View 5x60mm Socket Head Cap Screw 3x4mm SetScrew 5mm Flat Washer 5mm Collar 3x12mm TP Screw C . A INSTALLING THE FUSELAGE SERVOS 1) Install the rubber grommets and brass collets into the elevator, rudder and throttle servos.

  • Page 15: Installing The Horizontal Stabilizer

    CHIPMUNK Item code: BH63 Instruction Manual Fuselage top view elevator servo rudder servo elevator servo INSTALLING THE HORIZONTAL STABILIZER Ball link 44mm Pinned Hinge - - - - 4 - - - - 8 Horn - - - - 2 2.6x920mm Push rod...
  • Page 16 CHIPMUNK Item code: BH63 Instruction Manual 3x12mm Tp Screw Horn 3x12mm Cap Screw 3x12mm Cap scew Flash washer Push rod Ball link Servo tail 3mm Hex nut Fuselage top view elevator servo rudder servo elevator servo Assemble left and right Drill holes using the stated.

  • Page 17: Installing The Vertical Stabilizer

    CHIPMUNK Item code: BH63 Instruction Manual Elevator servo INSTALLING THE VERTICAL STABILIZER AND TAIL GEAR Ball link 44mm Pinned Hinge 3x15mm Tp Screw - - - - 2 - - - - 2 - - - - 3 Horn - - - - 1 2.6x820mm Push rod...

  • Page 18: 3X15Mm Tp Screw

    CHIPMUNK Item code: BH63 Instruction Manual 3x15mm Tp Screw Top View Make certain the hinges are adequately secured with glue. If they come loose flight accidents may result. Tailgear...

  • Page 19: Cap Screw

    CHIPMUNK Item code: BH63 Instruction Manual 3x12mm Tp Screw Horn 3x12mm Cap Screw 3x12mm Cap scew Flash washer Push rod Ball link Servo tail 3mm Hex nut elevator servo rudder servo elevator servo...
  • Page 20 CHIPMUNK Item code: BH63 Instruction Manual Rudder servo Rudder INSTALLING THE ENGINE MOUNT May be you also need to trim some wood from the tri-angle Using plate of plywood (supplied with the kit) mark the holes wood for the installation is easy.

  • Page 21: Installing The Engine

    CHIPMUNK Item code: BH63 Instruction Manual OS-33CC Throttle hole Φ 6mm DLE-35CC Mark Line Plate of plywood Throttle hole Φ 6mm DLE-35CC 6.2mm 6.2mm INSTALLING THE ENGINE 16x5mm Rubber Washer 12x45mm Aluminium 5mm Spring Washer - - - - - - - 4...

  • Page 22: Installing The Stopper

    CHIPMUNK Item code: BH63 Instruction Manual Pushrod Gas INSTALLING THE STOPPER...

  • Page 23: Installing The Fuel Tank

    CHIPMUNK Item code: BH63 Instruction Manual Cut off shaded portion 5. When satisfied with the alignment of the stopper INSTALLING THE FUEL TANK assembly tighten the 3mm x 20mm machine screw until the rubber stopper expands and 1. Using a modeling knife, cut one length of silicon seals the tank opening.

  • Page 24: Installing The Throttle

    CHIPMUNK Item code: BH63 Instruction Manual Clunks Fuel Tank INSTALLING THE THROTTLE direction. When the throttle stick is moved forward from idle to full throttle, the throttle barrel should Connector - - - - 1 also open and close using this motion. If not, reverse the direction of the servo, using the transmitter.

  • Page 25: Mounting The Cowl

    CHIPMUNK Item code: BH63 Instruction Manual Adjust the throttle input (trans- Connector mitter throttle stick), throttle trim movement and the carburattor 2x10mm opening to the suitable position 4x4mm and screw in the 4x4mm set Linkage screw. stopper Pushrod wire Screw...
  • Page 26 CHIPMUNK Item code: BH63 Instruction Manual 3x12mm Tp Screw plastic 01 3x12mm Tp Screw plastic 02...

  • Page 27: Installing The Switch, Receiver And

    CHIPMUNK Item code: BH63 Instruction Manual 3x12mm Tp Screw INSTALLING THE SWITCH, RECEIVER AND BATTERY 1) Plug the servo leads and the switch lead into INSTALLING THE SWITCH the receiver. You may want to plug an aileron 1) The switch should be mounted on the fuselage...

  • Page 28: Installing The Wings To Fuselage

    CHIPMUNK Item code: BH63 Instruction Manual INSTALLING THE WINGS TO FUSELAGE 32x857mm Aluminium tube. - - - - 1...

  • Page 29: Installing Cockpit Fuselage

    CHIPMUNK Item code: BH63 Instruction Manual INSTALLING COCKPIT FUSELAGE Position the canopy so the rear frame on the canopy is aligned with the rear edge of the cockpit opening. Use canopy glue to secure the canopy to the canopy hatch. Use low-tack tape to hold the canopy in position until the glue fully cures.
  • Page 30 CHIPMUNK Item code: BH63 Instruction Manual Adhesive tape...

  • Page 31: Installing The Propeller And Spinner

    CHIPMUNK Item code: BH63 Instruction Manual INSTALLING THE PROPELLER AND SPINNER 3x12mm TP Scew - - - 4 3x12mm TP Screw 6.2mm...

  • Page 32: Installing The Electric Motor

    CHIPMUNK Item code: BH63 Instruction Manual INSTALLING THE ELECTRIC MOTOR (EP MOTOR) M4 Blind Nut 10x20mm Aluminium 4x40mm Socket Head Cap Screw - - - - - 4 - - 4 M4 Blind Nut 4mm Flat Washer - - - - - 4...
  • Page 33 CHIPMUNK Item code: BH63 Instruction Manual 5mm Rubber Washer 5mm Flat Washer 5mm Spring Washer 12x60mm 5mm Flat Washer 5x90mm 160mm...

  • Page 34: Balancing

    CHIPMUNK Item code: BH63 Instruction Manual BALANCING LATERAL BALANCE 1. It is critical that your airplane be balanced correctly. After you have balanced a plane on the C.G. Improper balance will cause your plane to lose You should laterally balance it. Doing this will control and crash.

  • Page 35: Control Throws

    CHIPMUNK Item code: BH63 Instruction Manual In order to obtain the CG specified, reposition the receiver and other equipment. If not obtain the CG specified, add a weight and adjust. CONTROL THROWS 15mm We highly recommend setting up a plane using the control throws listed.
  • Page 36 CHIPMUNK Item code: BH63 Instruction Manual FOR YOUR RADIO INSTALLATION BASIC CONNECTION FOR AIRPLANE AND ADJUSTMENT OF SERVOS Example of connection For more information, refer to radio system instruction manual. Follow instruction manual of Engine and Battery. Aileron Servo Aileron...
  • Page 37 CHIPMUNK Item code: BH63 Instruction Manual...
  • Page 38 CHIPMUNK Item code: BH63 Instruction Manual I/C FLYING WARNINGS Always operate in open areas, away from fly near power lines,aerials or AL WAYS adjust the engine from behind NEVER factories, hospitals, schools, buildings the propeller, and do not allow any part of other dangerous areas including airports, and houses etc.
  • Page 39 CHIPMUNK Item code: BH63 Instruction Manual I/C FLYING GUIDELINES Operate the control sticks on the ALWAYS land the model INTO When ready to fly, first extend transmitter and check that the the wind, this ensures that the the transmitter aerial.
