luminii Optic Arts CH-MD-LS-SF Series Installation Instructions

CH-MD-LS-SF & CH-MD-TL-SF Channel
Models CH-MD-LS-SF-XX & CH-MD-TL-SF
Please read all instructions prior to installation and keep for future reference!
1. Product to be installed by a qualied electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
1
fixture
1.1
mounting
bracket
4"
every 30"
surface
Note:
Prior to install, 24VDC power must be present for wiring. Also
review and account for all parts necessary to install properly.

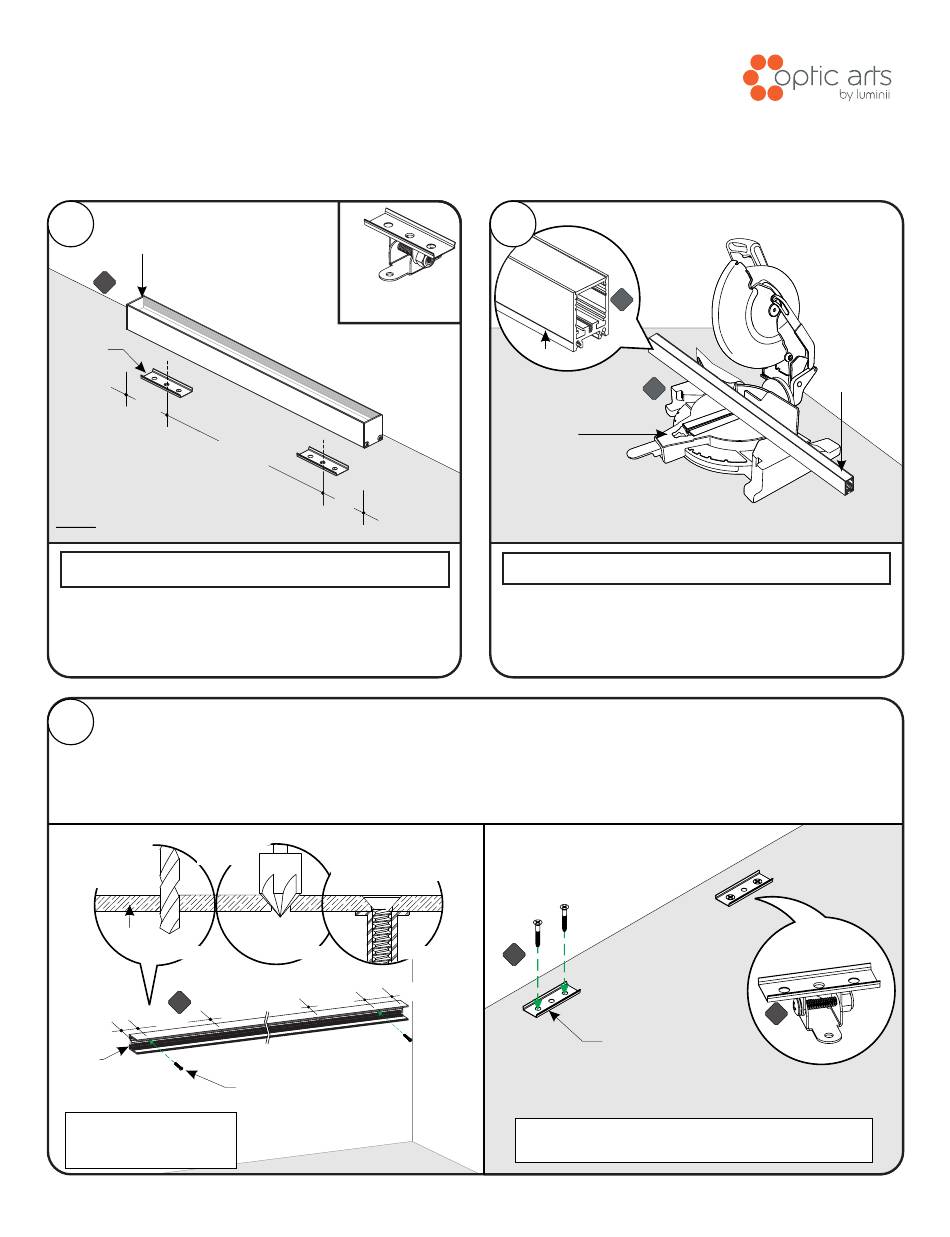

1.1 Snap the lens into the channel, then align & center the channel to the
determined location. Then make any reference marks if needed to install
the channel, reference step 3 for mounting options.
3
3.1 Secure the channel to the surface by either mounting directly with screws or using mounting brackets.
a. If mounting channel with screws:
b. If mounting channel with brackets :
screwing through the bracket to the surface. For
Secure in place by screwing through the bracket to the surface. If necessary loosen the screw on the side & rotate to the desired position, followed by
tightening the screws.
drill through countersink
channel for the holes
mounting
holes
channel
STEP A
a
30.0"
4.0"
channel
MOUNT CHANNEL
WITH SCREWS
*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE
adjustable mounting
bracket
4"
Make counter sunk holes through the channel followed by screwing directly to the surface.
For fixed mounting brackets
adjustable mounting brackets
tighten screws below
channel surface
before installing LineLED
STEP B STEP C
4.0"
30.0"
install #4 flat head wood
screws a maximum 30"
apart minimum of 2
screws per channel.
-
Installation Instructions
2
lens
2.1
channel
miter saw
Caution:
Safety equipment is recommended, when modifications are being
made to the channel & lens.
2.1 Extrusion & lens can be cut in the field. Using the proper blade for
aluminum, cut to the desired length.
, install a bracket 4" from each end, followed by installing one every 30". Then secure, by
, install a bracket 4" from each end, followed by installing one every 30".
b
fixed mounting
bracket
MOUNT EXTRUSION WITH FIXED OR
ADJUSTABLE BRACKETS
Page 1 of 2
channel
2.1
adjustable
mounting bracket
b
REV0.0 03092020
