luminii Matrix Plus MP-DO-DW-22K-60K Installation Instructions

Matrix Plus Dynamic White
Models MP-DO-DW-22K-60K & MMP-DO-DW-22K-60K
Please read all instructions prior to installation and keep for future reference!
1. Product to be installed by a qualied electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
1

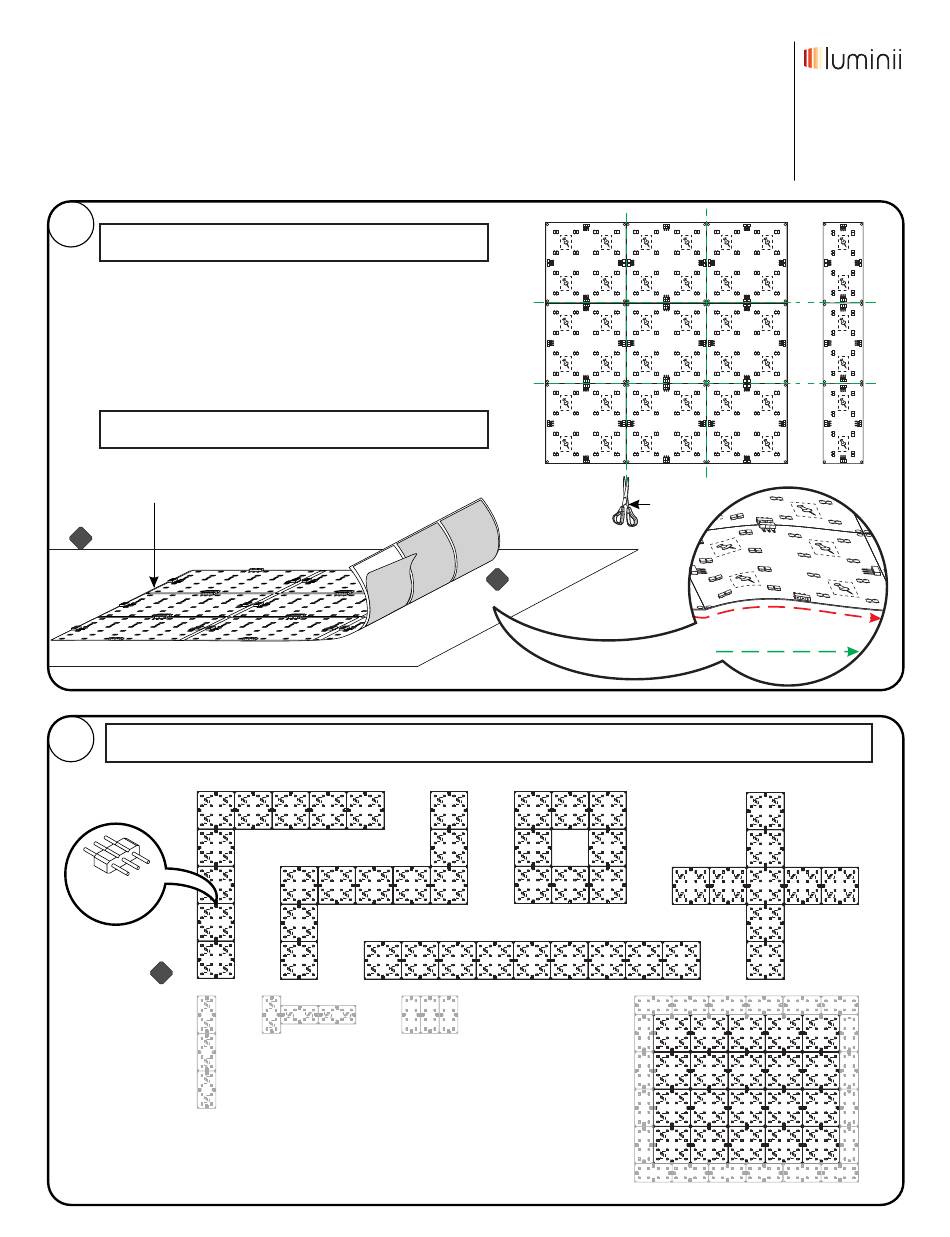

Note:
Matrix can be cut along the dashed lines to configure into
varies configurations. Reference step 2 for additional information.
1.1 Clean the area thoroughly from any dust and or adhesive residue where
the Matrix will be installed. Reference the sample layout on page 3 for
additional information.
1.2 Remove the paper backing from the Matrix. Carefully stick onto the
surface firmly. Make sure there are no air bubbles or ripples that can cause
irregularities and affect from sticking on correctly. If adhesive not sticking
well to the surface. Reference step 4 to use mounting hardware
(not included).
Note:
When removing the backing & placing the Matrix to the
surface, avoid any ripples. As shown in FIG.1.
Matrix Plus
1.1
2
Note:
Matrix Plus & Matrix Mini Plus can be installed in multiple configuration. 1 male adapter must be connected from 1 section to
the next to work properly.
Matrix Plus configurations
male
adapter
2.1
Matrix Mini Plus configurations
*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE
-
Installation Instructions
1.2
Page 1 of 5
Matrix Plus
Scissors
or shears
FIG.1
Matrix Plus & Matrix Mini Plus used togther
7777 Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
info@luminii.com
www.luminii.com
Matrix Mini Plus
NOT CORRECT
CORRECT
REV0.0 11012019
