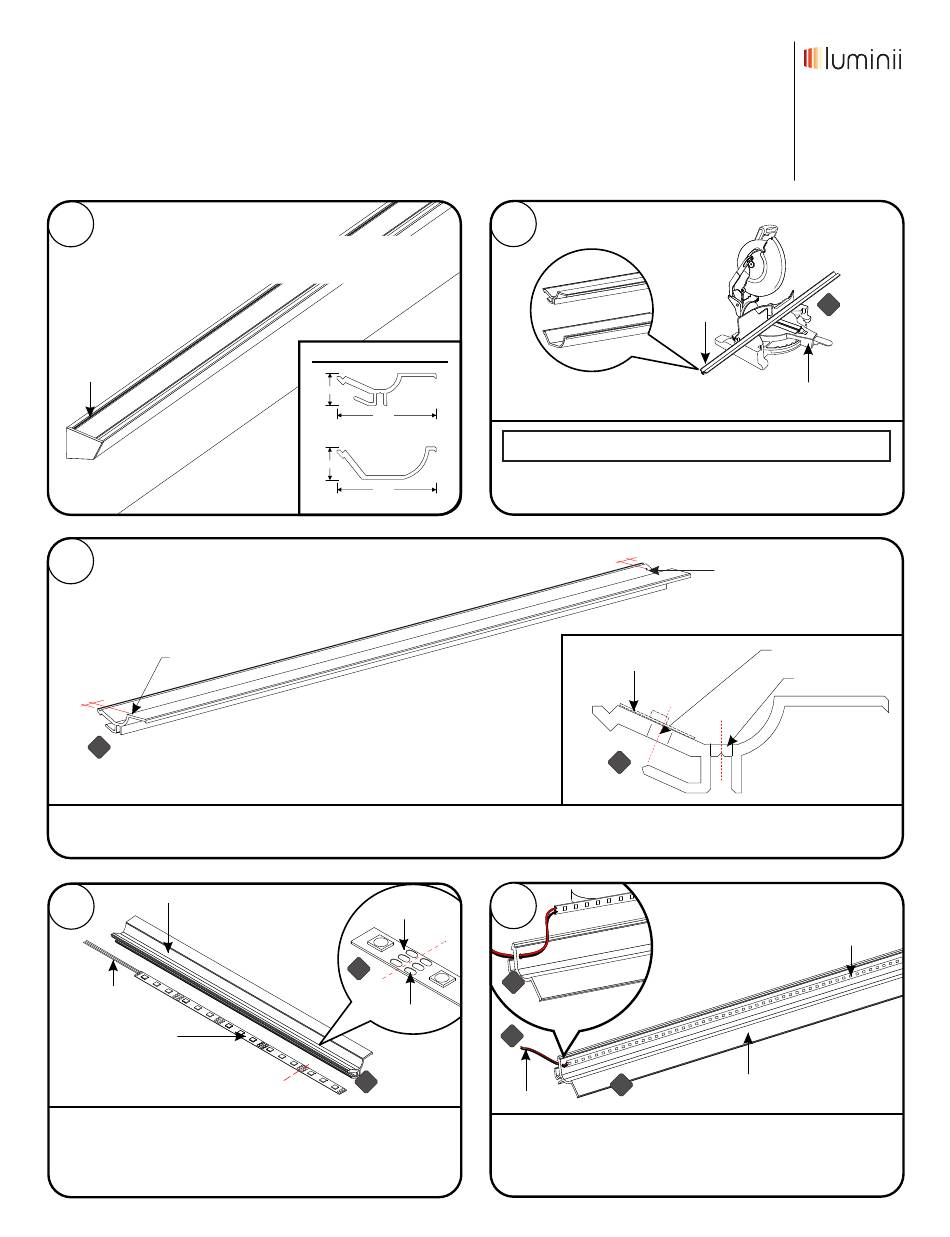

luminii CLTC Series Installation Instructions

Cove Channel extrusion
Models CLTC-XX & CTTC-XX
Please read all instructions prior to installation and keep for future reference!
1. Product to be installed by a qualied electrician.
2. Prior to installation ensure power is off at fuse box to prevent electrical shock.
1
1.1 The pre-made or purchased cove, must take reflector
profile dimensions into consideration prior to beginning
the installation.
cove
3
9/64" hole
for mouting
1/2"
3.1
3.1 Holes will also have to be made to the reflector, Refer to drawing above to make all necessary holes to the reflector.
- Drill two 9/64" hole, 1/2" from each end of the extrusion, to secure reflector to extrusion.
- Drill a 1 1/64" hole, 1/4" from one end of the reflector for the LineLED wires to connect to the power feed wire.
4
extrusion
wire leads
LineLED
4.1 LineLED can be shortened by cutting along the dashed lines in between
the solder pads. Make sure the cut is made on the side of the LineLED
without the wire leads. LineLED cannot touch the metal endcap which will
shorten the circuit.
*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATION & INSTRUCTION WITHOUT NOTICE
-

Installation Instructions

Reflector profile dimensions
0.6"
1.8"
CTTC-XX-XX
0.6"
1.8"
CLTC-XX-XX
LineLED
4.1
cut
solder pads
cut
4.1
2
CTTC-XX-XX
or
CLTC-XX-XX
Caution:
Safety equipment is recommended, when modifications are being
made to the extrusion & lens.
2.1 If necessary extrusion can be cut in the field, using the proper blade for
aluminum. Cut the extrusion to the desired length.
1/4"
LineLED LOCATION
3.1
5
5.2
5.2
5.1
wire leads

5.1 Prior to installing the LineLED to extrusion, clean extrusion from any debris.

5.2 Remove the paper backing from the adhesive tape on the LineLE
feed the wire leads through the pre-made hole. Gently push LineLED onto
aluminum extrusion to secure in place.
7777 Merrimac Ave
Niles, IL 60714
T 224.333.6033
F 224.757.7557
info@luminii.com
www.luminii.com
Page 1 of 2
2.1
extrusion
miter saw
11/64" hole
for wire leads
wire hole
mounting holes
SIDE PROFILE
HOLE IDENTIFICATION
LineLED
extrusion
D. Then
REV0.1 04102019
