INTRODUCTION 1.0 Introduction to the IPS Information on the operation, installation, and maintenance of the Whelen Engineering Company’s In-Plant Personnel Warning System (IPS) is provided in this technical manual. The IPS-400 and the IPS-800 are essentially the same. The IPS- 400 has a single 400 watt amplifier, while the IPS-800 has two. This means that the IPS-800 can drive 800 watts of audio power versus 400 watts for the IPS-400.
Section 2 IPS CONTROLLER DESCRIPTION 2.0 Controller System Description This section provides a general description of the IPS siren controller, including a physical description and a functional description of the system. The functional description includes system activation methods, timing selection, signal and audio characteristics, and power requirements.
2.2 Operational Description As previously mentioned, the IPS is a self-contained, microprocessor-controlled warning system capable of generating six standard siren warning signals, public address broadcast, and strobe light signaling. The standard warning signals-- WAIL, ALERT, ATTACK, AIR HORN, HI/LO, AND WHOOP--are described in detail in Section 4.1.1. The IPS is powered by a 115 VAC, 1.5 Amp service.
Section 3 SPECIFICATIONS 3.0 General Specifications The table below refers to general specifications for an IPS control cabinet. Specifications for speakers and strobe lights are available upon request. IPS Specifications PHYSICAL Height: 32.5 inches DIMENSIONS (not including mounting flanges) Width: 20.0 inches Depth: 12.0 inches WEIGHT IPS-400: 120 lb.
Section 4 MODULE DESCRIPTION 4.0 IPS Module Descriptions This section provides an overview of the individual electronic modules in an IPS. • ESC-864 (Controller) • Power Amplifier(s) • System Driver Board • Battery Charger • Batteries 4.1 ESC-864 (Controller) The ESC-864 Controller is the microprocessor-based core of the IPS. The ESC-864 houses the following: local pushbuttons and LED indicators, the ESC-864 controller circuit board, the tone generator,...
Page 11
Control or Indicator Control or Indicator Function WAIL 5 SEC Siren tone. Initiates a high pitched tone, followed by a softer, winding cry. Actual on time is more than 5 seconds. NOTE: The five-second WAIL siren tone is often referred to as the NOON TEST.
Page 12
Control or Indicator Control or Indicator Function input from the tone generator's input, eliminating outside interference. Removing the microphone from the microphone jack restores the remote radio audio input. XMIT The XMIT LED, when illuminated, indicates that the ESC-864 is actuating the IPS transmitter push-to-talk (PTT) circuit and is transmitting data or a test tone.
4.1.2 ESC-864 Controller Circuit Board The ESC-864 Controller board allows for local activation of warning signals, plus remote control interfacing. It also monitors system status and provides visual status indicators as described in the previous tables. The ESC-864 PC board controls the tone generator.
Page 14
Status Response Format Area Code Address Code Length Response Status Bytes Digital Analog 3 digits 4 digits 1 digit 2 digits variable variable length length Status Response (Definition of Format) Function Description Area Code 3-digit code which allows up to 1000 area codes per frequency.
The ESC-864 board reports status information to a central control point in response to the following alarm conditions: - a change-of-state alarm (user selectable on/off) - instant response to individual activation (user selectable on/off) or - response to individual interrogation. In the event of an alarm condition, the ESC-864 board will transmit its status report three times to ensure that the message is received.
electrical circuit between a power amplifier channel and its respective speakers. The LEDs, indicate a complete circuit from the respective power amplifier channel to the speakers and back when the power amplifier is in operation. An active LED indicates that the power amplifier channel, system driver board, speaker wires, and speaker(s) are functioning when a warning signal tone or public address mode is active.
4.3 System Driver Board .325 CENTERS The system driver board, shown to the right, provides a number of functions in PC. BD #67729 SPEAKER AUDIO 1+ the IPS. The functions are described in paragraphs 4.4.1 through 4.4.5. SPEAKER AUDIO 1- SPEAKER AUDIO 2+ 4.3.1 Audio Signal Distribution SPEAKER AUDIO 2-...
Silent Test LED Indicators STATUS INFORMATION COLOR AC site power DC power > 19 VDC PART Partial Speaker Driver/Amplifier Operation FULL Full Speaker Driver/Amplifier The diagnostic routine of the IPS is processed for each inaudible or full power activation of the system, and the diagnostic LED indicators represent the results of the most current activation.
The cabinet has mounting tabs or flanges on 14 inch centers, for wall mounting. For outdoor applications, drain holes need to be drilled into the upper compartment of the IPS. Consult Whelen Engineering Company, Inc. for advice on outdoor applications.
Page 20

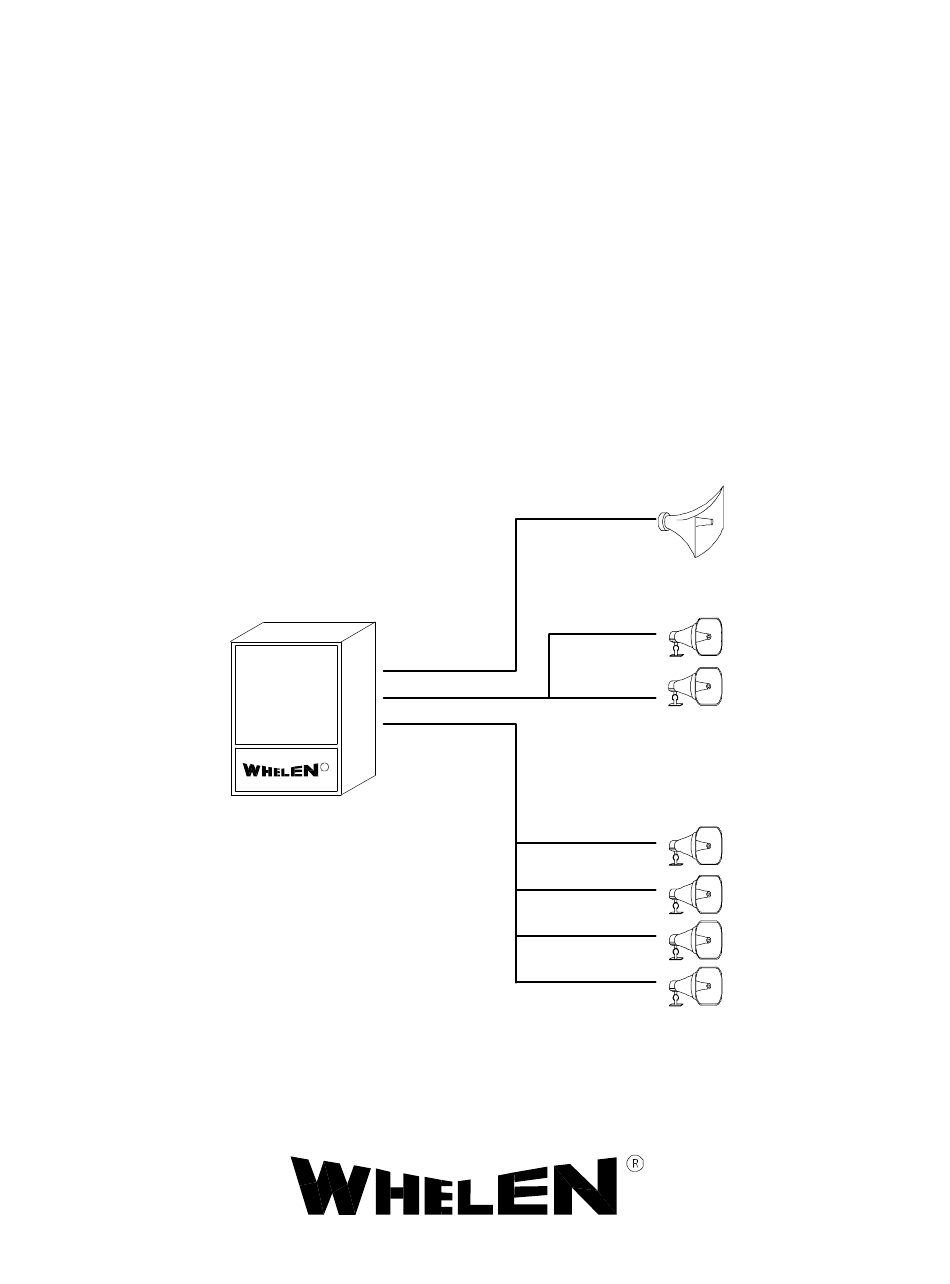

100 WATT SPEAKER = SPEAKER AUDIO (2 CONDUCTORS) 60 WATT SPEAKER SYSTEM 3 - 30 WATT SPEAKERS 4 - 15 WATT SPEAKERS CAUTION In planning for speaker arrangement and placement, the use of hearing-protective devices should be considered for people working in close proximity to heavy-duty speakers connected to the IPS.
5.2 Receiving/Unpacking the IPS An IPS is typically shipped with the following items packed on a single shipping pallet: (a) two, 12 volt, Gel type batteries (31 AH for an IPS-400 or 55 AH for an IPS-800; and (b) the IPS cabinet with the appropriate electronics, as ordered.
5.3a Installation of the “Type C” Cabinet For “Type C” cabinet installation only The IPS cabinet is typically mounted to an inside wall of a building. The cabinet is equipped with two mounting flanges on the top and two mounting flanges on the bottom, as shown in the drawing. The top flanges have two 7/16”...
5.4 Conduit Openings for the IPS Cabinet The installer must punch entry holes in the IPS cabinet. The holes are typically made on the left side of the cabinet, as shown in the drawing. Note: The location of the holes, the size of the holes and the number of holes is left to the installers discretion.
5.5 AC Wiring Make sure the battery charger is unplugged from the AC outlet in the left rear corner of the control cabinet. Route the AC service wire through the cable clamp on top of the box. Make the AC connections to the outlet, according to local electrical codes.
5.6 Speaker Wiring speakers audio connections are made through the .325 CENTERS System Driver Board, located on the left side of the back wall of the IPS cabinet. PC. BD #67729 SPEAKER AUDIO 1+ SPEAKER AUDIO 1- The upper most terminal block is SPEAKER AUDIO 2+ TB1.
5.7 Radio Option Locate the antenna so that it is clear of any obstructions. Ground the antenna bracket using a minimum of 4 AWG copper wire to a suitable earth ground. If the unit is equipped with a transmitter, a coax protector has been provided. The protector is shipped in the battery compartment.
Section 6 BATTERIES 6.0 Battery Installation As previously mentioned, an IPS-400 comes with two 31 Amp-hour batteries. These fit as shown in the drawing. The IPS-800 comes with two 55 Amp-hour batteries. These are larger than the 31 Amp-hour batteries. They must be rotated 90 degrees to be installed.
Section 7 CONTROLLER PROGRAMMING 7.0 ESC 864 Controller Programming This section covers user programmable features of the ESC-864 controller, in the IPS. A number of parameters are factory set in Electronically Erasable Programmable Read Only Memory (E PROM) others are controlled by Dip Switch settings.
Warning Tone Signal/PA Announcement Timing Information TONE SIGNAL DURATION WAIL __ -- __ __ ATTACK __ -- __ __ ALERT __ -- __ __ __ -- __ __ AIR HORN __ -- __ __ HI/LO __ -- __ __ WHOOP __ -- __ __ NOON TEST __ -- __ __...
Page 30
Instant Status Dips (SW 2) Programming Functions Position Function Setting/Use On/Off Intrusion On/Off Input Not Used Input Not Used Input Not Used Full On/Off Partial On/Off Tone Gen Bias On/Off...
Section 8 TESTING & TROUBLESHOOTING 8.0 System Testing and Troubleshooting Throughout this section, testing and troubleshooting pertain to operational checkout procedures and fault-isolation procedures. Successful completion of the operational checkout verifies proper operation of the IPS. Tables 8-1 through 8- 2 correlate faults to isolation procedures and associated corrective action.
Page 32
System-Level Faults and Troubleshooting Procedures CORRECTIVE ACTION FAULT ISOLATION PROCEDURE IPS will not activate Determine whether battery Perform battery system faults and troubleshooting procedures. If via local controls. voltage is less than 19 VDC. batteries do not attain and maintain 19 VDC, replace batteries. Battery voltage is Verify 120 VAC present.
Page 33
CORRECTIVE ACTION FAULT ISOLATION PROCEDURE To further verify the fault determined in the above step, connect suspected faulty speaker wires into a connector pertaining to a known, working power amplifier channel. Press the SI TEST® pushbutton. If the LED fails to illuminate, the speaker wires or respective speaker is faulty.
8.3 IPS Remote Activation Faults Once it has been established that the IPS will operate via local controls, several conditions concerning remote controls or remote activation link faults may be examined. Part A. Central Control Point IPS will not Localize the fault to either Ensure that central control point transmitter and encoder are ON.
Page 35
Part B. IPS Cabinet Station Link FAULT ISOLATION CORRECTIVE ACTION PROCEDURE Using a monitoring device, have the central control point dispatcher send a IPS will not Determine the fault(s) CLEAR command. If the DTMF tones are audible on the monitoring activate via RF within the IPS device, perform the following step.
Section 9 REPLACEMENT 9.0 Replacement Procedures IPS repair is covered at the module replacement level. Component level repair is not recommended. Speakers and strobe lights are replaced at the final assembly level. CAUTION The IPS cabinet is a high-voltage unit. Wait five minutes after turning off AC power and disconnecting the interconnect battery cable before removing any module.
Section 10 INSPECTION 10.0 Routine Inspection Routine inspection procedures for the IPS pertain to the basic IPS cabinet, mainly cables and connectors. Inspection or checkout procedures for specific modules are provided below. Routine Inspection Procedures PROCEDURE AND PROCEDURAL ACTIVITIES TOPIC Cable Inspection Inspect all cables and connectors (i.e., from the AC Service to the system driver board within the IPS cabinet and all other plainly exposed cables and...
Siren Command Definitions Command Function ___________________________________________________________________________ 00H Clear Clears any event in progress. 01H Wail Tone Warning. 02H Attack Tone Warning. 03H Alert Tone Warning. 04H Public Address Live Public Address. 05H Air-Horn Tone Warning. 06H Hi-Lo Tone Warning. 07H Whoop Tone Warning.
Page 40
continued..30H Clear Clears any event in progress. 31H Message 1 Initiates digital voice message 1, for an RSDVM module. 32H Message 2 Initiates digital voice message 2, for an RSDVM module. 33H Message 3 Initiates digital voice message 3, for an RSDVM module. 34H Message 4 Initiates digital voice message 4, for an RSDVM module.
SIREN COMMAND RESPONSE STRUCTURE Group 0 Function CMD Response Status 1 Status 2 ____________________________________________________________________________________________ Clear ---- ---- Wail Status byte DC volts (note 1) Attack Status byte DC volts (note 1) Alert Status byte DC volts (note 1) Public Add. ---- ---- Air Horn...
Page 42
Group 2 Function Response Status 1 Status 2 Status 3 Status 4 _______________________________________________________________________________________________ Clear ---- ---- ---- ---- Battery/AC Batt DC volts AC volts ---- ---- (note 1) Batt./Temp. Batt DC volts Cabinet temp ---- ---- (note 1) Instant Status Instant Stat DC volts ----...
REMOTE SIREN RESPONSE DEFINITIONS ___________________________________________________________________________ Status Byte Breakdown Bit 0 = Full 1 = All amps/drivers pass, 0 = 1 or more amps/drivers fail. Bit 1 = Partial 1 = 1 or more amps/drivers pass, 0 = all amps/drivers fail. Bit 2 = Rotor 1 = Rotor incremented, 0 = rotor failure.
Page 44
Bit 5 = Full 1 = All amps/drivers pass, 0 = 1 or more amps/drivers fail Bit 6 = Partial 1 = 1 or more amps/drivers pass, 0 = all amps/drivers fail Bit 7 = Bias 1 = Bias line is good, 0 = Bias line failure The Active Status command (3FH) response is defined as follows: Active Command = the command that is currently being processed (00H to 3EH).
