ENGINEERING COMPANY INC.
51 Winthrop Road
Chester, Connecticut 06412-0684
Phone: (800) 63SIREN
Phone: (860) 526-9504
Fax: (860) 526-4784
Internet: www.whelen.com
Sales e-mail: iowsales@whelen.com
Customer Service e-mail: iowserv@whelen.com

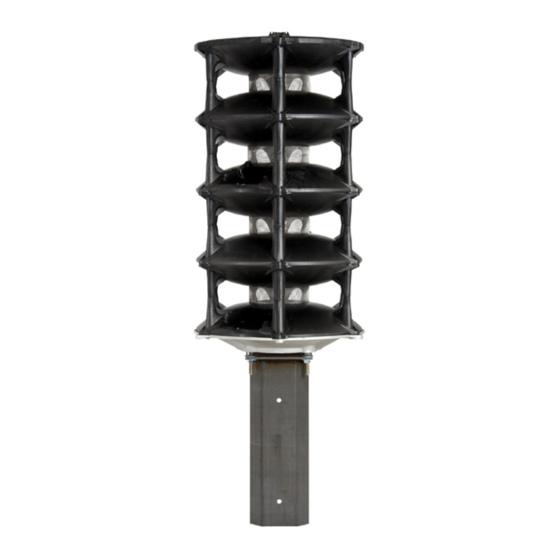

WPS-2900 SERIES
HIGH POWER VOICE
& SIREN SYSTEM
For warranty information regarding this product, visit www.whelen.com/warranty
©2005 Whelen Engineering Company Inc.
Form No.13947G (020211)
®
INSTALLATION MANUAL
Page 1
Advertisement
Table of Contents
Related Manuals for Whelen Engineering Company WPS-2900 Series
Summary of Contents for Whelen Engineering Company WPS-2900 Series
- Page 1 Fax: (860) 526-4784 Internet: www.whelen.com Sales e-mail: iowsales@whelen.com Customer Service e-mail: iowserv@whelen.com WPS-2900 SERIES HIGH POWER VOICE & SIREN SYSTEM INSTALLATION MANUAL For warranty information regarding this product, visit www.whelen.com/warranty ©2005 Whelen Engineering Company Inc. Form No.13947G (020211) Page 1...
-
Page 2: Table Of Contents
Table Of Contents Important Note To Installation Technicians .................. page 6 Section I: Site Selection......................page 8 Section II: Utility Pole Preparation a) Pole Selection...................... page 9 b) Component Dimensions ..................page 9 Section III: Equipment Mounting a) Pole Top Mounting Bracket ................page 14 b) Electronic Cabinet Mounting ................ - Page 3 Illustrations Fig. 1 Station Drawing ........................ page 4 Fig. 2 Station Drawing (with optional Solar Panel) ..............page 5 Fig. 3 Pole Top Mounting Bracket Dimensions................ page 10 Fig. 4 Type II Electronic Cabinet Dimensions................page 11 Fig. 5 Type III Electronic Cabinet Dimensions ................ page 12 Fig.
-
Page 4: Fig. 1 Station Drawing
Fig. 1: Sample Station Drawing (AC Powered Battery Charger) Model Speaker Height 32.5" Optional Number (inches) Strobe WPS-2900-1 18.8 WPS-2900-2 31.2 WPS-2900-3 43.6 WPS-2900-4 56.0 WPS-2900-5 (shown) 68.4 HEIGHT WPS-2900-6 80.8 68.4" WPS-2900-6A 80.8 WPS-2900-7 93.2 WPS-2900-8 105.6 WPS-2900-9 118.0 WPS-2900-10 130.4 ALUMINUM TO... -
Page 5: Fig. 2 Station Drawing (With Optional Solar Panel)
Fig. 2: Sample Station Drawing (Optional Solar Powered Battery Charger) Model Speaker Height 32.5" Optional Number (inches) Strobe WPS-2900-1 18.8 WPS-2900-2 31.2 WPS-2900-3 43.6 WPS-2900-4 56.0 WPS-2900-5 (shown) 68.4 HEIGHT WPS-2900-6 80.8 68.4" WPS-2900-6A 80.8 WPS-2900-7 93.2 WPS-2900-8 105.6 WPS-2900-9 118.0 WPS-2900-10 130.4... -
Page 6: Important Note To Installation Technicians
An Important Note to the Installation Technicians... The installation of this product requires careful planning and attention to detail! The installation of this system should NOT be attempted by individuals without experience in the disciplines necessary to this procedure (i.e. High-voltage electrical wiring, utility pole installation, etc.). - Page 7 Speaker assemblies consisting of eight (8) or more cells are shipped in two sections. The upper section must be mounted onto the lower section before the completed assembly can be mounted onto the pole. This procedure is best performed with the lower section secured to its shipping pallet.
-
Page 8: Section I: Site Selection
Section I: Site Selection The site selection for the WPS-2900 requires careful consideration in order to achieve the optimum coverage of the siren station. For a guideline to system planning, sound propagation and site selection we direct the user to the Federal Emergency Management Agency’s “Outdoor Warning Systems Guide, CPG 1-17.”... -
Page 9: Utility Pole Preparation
Section II: Utility Pole Preparation... a) Pole Selection NOTE: This installation manual will address the procedures applicable to wooden utility poles of specific size and dimensions. Procedures for poles consisting of other materials (steel, concrete, etc.) are not addressed within this document. The information presented, however, provides the necessary data and guidelines for a successful installation regardless of pole material. -
Page 10: Fig. 3 Pole Top Mounting Bracket Dimensions
Fig. 3: Pole Top Mounting Bracket Dimensions 10.0” DIA. POLE (MAX.) 11.0” 10.0” 12.0” 13.5” 1” Clearance Between Top Of Pole and Inside Bottom Of Bracket 18.0” 30.0” 18.0” 7.5” 4.5” Page 10... -
Page 11: Fig. 4 Type Ii Electronic Cabinet Dimensions
Fig. 4: Type II Electronic Cabinet Dimensions LEFT SIDE VIEW REAR VIEW 33.2” 5.0” 39.5” 45.6” .75 DIA. 16.00” 2.0” 10.0” 30.7” Page 11... -
Page 12: Fig. 5 Type Iii Electronic Cabinet Dimensions
Fig. 5: Type III Electronic Cabinet Dimensions LEFT SIDE VIEW REAR VIEW 33.2” 5.00” 48.1” 39.5” .75” DIA. 13.0” 30.0” .75” DIA. 2.0” 10.0” 30.7" Page 12... -
Page 13: Fig. 6 Antenna Mounting Bracket Dimensions
Fig. 6: Antenna Mounting Bracket Dimensions NOTE: Antenna installation must be in compliance with all FCC REGULATIONS. IMPORTANT: Top of antenna mast must be positioned at least 1 inch below the bottom of the Pole Top Mounting Bracket regardless of antenna length. 4 AWG (minimum) solid copper wire speaker ground. -
Page 14: Equipment Mounting
Section III: Equipment Mounting a) Pole Top Bracket Installation... Items Required for installation (not included)..5/8” x 14” Hex or Square head mounting bolts 5/8” Hex or Square head nuts 5/8” Flat Washer sized for the above referenced mounting bolt 5/8”... -
Page 15: Fig. 7 Pole Top Mounting Bracket
Fig. 7: Pole Top Mounting Bracket 9.5 Inches (+/- 0.5) 5/8” x 14” Square- (or Hex-) Head Bolt 5/8” Flat Washer 5/8” Split Lock Washer 5/8” Square- (or Hex-) Head Nut Page 15... -
Page 16: B) Electronic Cabinet Mounting
b) Electronic Cabinet Mounting and Siren Connections... Mounting Items Required for installation (not included)..For Type II & III cabinets Qty. Qty. (Type II) (Type III) Description 5/8” x 14” Hex or Square head mounting bolts 5/8” Flat Washer sized for the above mounting bolt 5/8”... - Page 17 The WPS-2900 siren case assembly may be installed onto the pole and wired before setting the pole. NOTE: Note: Due to the weight of the siren amplifier panel, the electronic cabinet assembly must be transported in an upright fashion to prevent distortion of the amplifier panel.
-
Page 18: C) Siren Assembly Mounting (5 Or Less Speaker Cells)
IMPORTANT! Before proceeding with the speaker installation, it is necessary for the installer to know the number of speaker cells to be installed on the utility pole. If the speaker assembly to be installed consists of 5 (five) or less speaker cells, the speaker assembly may, at the installers discretion, be mounted onto the utility pole before the pole has been set. -
Page 19: D) Siren Assembly Mounting (6 Or More Speaker Cells)
d) Siren Assembly Mounting (6 or more speaker cells)... Hardware required for installation (factory included)..3/4”-10 hex head nuts 7/8” Flat Washers 3/4” Split Lock Washers Items required (not included) Crane, Bucket Truck or similar lifting device Straps The larger siren assemblies (6 or more speaker cells) may only be mounted onto the pole top bracket after the pole has been set. -
Page 20: Fig. 9 Siren To Pole Top Mounting Bracket (Side View)
Fig. 9: Siren to Pole Top Mounting Bracket (Side View) 3/4"-10 Hex Nut 7/8” Flat Washer 3/4” Lock Washer Page 20... -
Page 21: E) Antenna Mounting (Optional)
e) Antenna Mounting (optional)... NOTE: Antenna installation must be in compliance with all FCC regulations. The proper antenna bracket mounting location is determined by several considerations. The antenna bracket should be positioned as high on the utility pole as is possible. However, under no circumstances should the top of the installed antenna mast be any closer than one inch from the bottom of the Pole Top Mounting Bracket (see “Fig. -
Page 22: F) Solar Panel Mounting (Optional)
f) Solar Panel Mounting (optional)... The solar panel must be installed so that it is directly facing the earth’s equator with an unobstructed view. Failure to orient the solar panel in this way will result in significantly reduced charging effectiveness. The most critical aspect of properly mounting the solar panel involves achieving the optimum tilt angle. -
Page 23: Fig. 11 Solar Panel Wiring Connections
Fig. 11: Solar Panel Wiring Connections NOTE 1 WIRING DIAGRAM NOTE 3 (SOLAR PANEL) RED WIRE NOTE 5 3/4" FLEX CONDUIT (CUSTOMER SUPPLIED) (SOLAR PANEL) NOTE 2 NOTE 3 NOTE 4 BLACK WIRE NOTE NOTE 2 SOLAR PANELS (REAR VIEW) STRIP CABLE BACK THIS END AS REQUIRED NOTES:... -
Page 24: Fig. 12 Solar Panel Mounting Views
Fig. 12: Solar Panel Mounting Views 8.00” Remember to ALWAYS mount panels facing the Earth’s Equator Dimension Solar Panel Mounting Bracket Hardware Qty. Description 5/16 - 18 X 1” Hex Head Bolt 8.00” 5/16 - 18 Elastic Stop Nut 5/16” Flat Washer Lower Higher Latitudes... -
Page 25: G) Determining Solar Panel Mounting Angle
g) Determining Solar Panel Mounting Angle Determine the Latitude of your location. Find your Latitude on the table below and note the corresponding Tilt Angle. LATITUDE TILT ANGLE 0° to 9° 75° = Tilt Angle 10° to 20° 85° minus LATITUDE = Tilt Angle 21°... -
Page 26: A) Siren Connections
Section IV: Wiring a) Siren Connections The type of speaker harness you receive depends on the number of speaker cells present. For systems consisting of 1 to 5 speaker cells, a 5-pair harness cable is provided. This cable has 5 BLACK wires numbered 1 to 5 and 5 RED wires numbered 1 to 5. For systems with 6 to 10 speaker cells, a 10-pair harness cable is used. -
Page 27: Fig. 13 Siren Amplifier Connections
Fig. 13: Siren Amplifier Connections Audio Audio Audio Audio Red wire 1 Black wire 1 Red wire 6 Black wire 6 Audio Audio Audio Audio Red wire 2 Black wire 2 Red wire 7 Black wire 7 Audio Audio Audio Audio Red wire 3 Black wire 3... -
Page 28: B) Ac Wiring
b) AC Wiring An AC Service (Single Phase only) with an acceptable disconnect is required. A 15 amp (minimum) 120 VAC circuit is recommended. Locate the service on the pole according to local codes, taking care that the service entrance will meet height requirements once the pole is set into place. -
Page 29: Fig. 14 Ac Outlet Installation
Fig. 14: AC Outlet Installation SECURE GROUND WIRES HERE ATTACH THE AC SERVICE FITTING AS SHOWN Page 29... -
Page 30: C) Batteries
c) Batteries Make sure that the system battery switch is in the OFF position. Install the batteries included with your system and connect them as shown in the illustration representing your cabinet type. MAKE SURE TO OBSERVE THE POLARITY OF THE TERMINALS BEFORE MAKING ANY CONNECTIONS. NOTE: For battery wiring, DC wiring conventions are used (BLACK is ground (-)). -
Page 31: Fig. 15 Battery Connections (Type Ii Cabinet)
Fig. 15: Battery Connections (Type II Cabinet) System Battery Switch D C A M P E R E S D C A M P E R E S 10 20 30 40 V O LT S D C A M P E R E S Page 31... -
Page 32: Fig. 16 Battery Connections (Type Iii Cabinet)
Fig. 16: Battery Connections (Type III Cabinet) System Battery Switch D C A M P E R E S 10 20 30 40 V O LT S Page 32... -
Page 33: D) Landline
d) Landline (optional) As an option, the WPS-2900 may be remotely controlled by either landline or RF link. Both methods communicate via DTMF protocol. Remote control may be one-way or two-way. The one-way option simply controls the WPS-2900, while the two-way option controls the WPS-2900 and reports WPS-2900 status back to a central control point. -
Page 34: E) Auxiliary Control/Status
e) Auxiliary Control/Status (optional) The WPS-2900 may be equipped with an optional module that allows the user to remotely control siren functions and to remotely collect siren status information. The following Whelen commands are supported: • Cancel (or Clear) • Whoop •... - Page 35 The local audio path operates a little differently than the other commands. The “Push To Talk” closure must be maintained for the duration of the command, however, the activation will automatically turn off if held active for more than 8 minutes. The input cables may be up to 4,000 feet away, based on at least 26 AWG cable.
-
Page 36: Fig. 18 Auxiliary Control/Status Board Wiring
Electrical Input Specifications Electrical Output Specifications Minimum Closure Time 250ms Minimum Voltage Rating 24VDC Low Level Current (min.): 35 mA Current Rating: 250 mA High Level Voltage (max): 32VDC Audio Input Level: -17 to +10 dB One (1) wiring harness is supplied to connect the ESC2020 Controller to the Auxiliary Control/Status (AUXCS) Option Board. -
Page 37: Fig. 19 Auxiliary Control/Status Board Potentiometer Locations
There are three potentiometers for audio level adjustments on the AUXCS board. Refer to the diagram below for the location of these potentiometers. The potentiometers are factory set for typical signal levels, however, some adjustment may be necessary depending on the actual audio source in the field. The upper most potentiometer has been calibrated at the factory for a minimum clipping level. -
Page 38: F) Paging Interface
f) Paging Interface (optional) The WPS-2900 may be equipped with an optional module that allows the user to broadcast siren tones, digital voice messages or public address through existing in-plant public address systems. The audio output of the Paging Interface Module is a 600 ohm, transformer coupled signal. This output interfaces with most industry standard paging systems. -
Page 39: G) Strobe Control Options Stctrl & Scwps
g) Strobe Control Options STCTRL & SCWPS The WPS-2900 may be equipped with an optional, highly visible external strobe light which upon activation provides a visual indication during siren operation. The STCTRL includes the strobe control board, cable, hardware for mounting the board to the inside of the cabinet and the mating connector. -
Page 40: H) Auxiliary Input Board
h) Auxiliary Input Board The WPS-2900 may be equipped with an optional module that can activate siren functions via an external auxiliary input contact closure. For external controls, the “closure” must be at least 1/2 second in duration. The “closure” must be made to ground. A ground contact is supplied at the terminal strip for this purpose. - Page 41 To activate one of the supported commands, simply make a momentary dry closure between the desired command input and ground. Typically, a relay is used to make a remote connection. When an input is activated by a momentary closure, the siren function will run for the pre-programmed time or until another command is activated.
-
Page 42: Section V: System Test
Section V: System Test... After the installation of the WPS-2900 station has been completed, a basic system check is recommended to confirm that the system is functioning properly. Before initiating these tests, locate the system LED’s on the main control board mounted to the cabinet door (see “Fig. -
Page 43: Fig. 23 System Led Indicators
Fig. 23: System LED Diagnostic Indicators Fault (RED) - Normally off. When a DC - Normally on. If no DC voltage was problem has been detected, this LED detected during a siren tone or SI TEST® will be on. this LED will be off. Active - This LED normally flashes at a AC - Normally on. -
Page 44: Fig. 24 Electronic Cabinet Front Panel
Fig. 24: Electronic Cabinet Front Panel (Type II). Siren Amplifier Diagnostic LED’s (7 cell system shown for reference) WAIL ATTACK ALERT CANCEL WHOOP HI-LO AIRHORN XMIT XMIT XMIT ® SI-TEST CARRIER AUDIO STATUS ROTOR ROTOR KEYPAD TEST Page 44...
