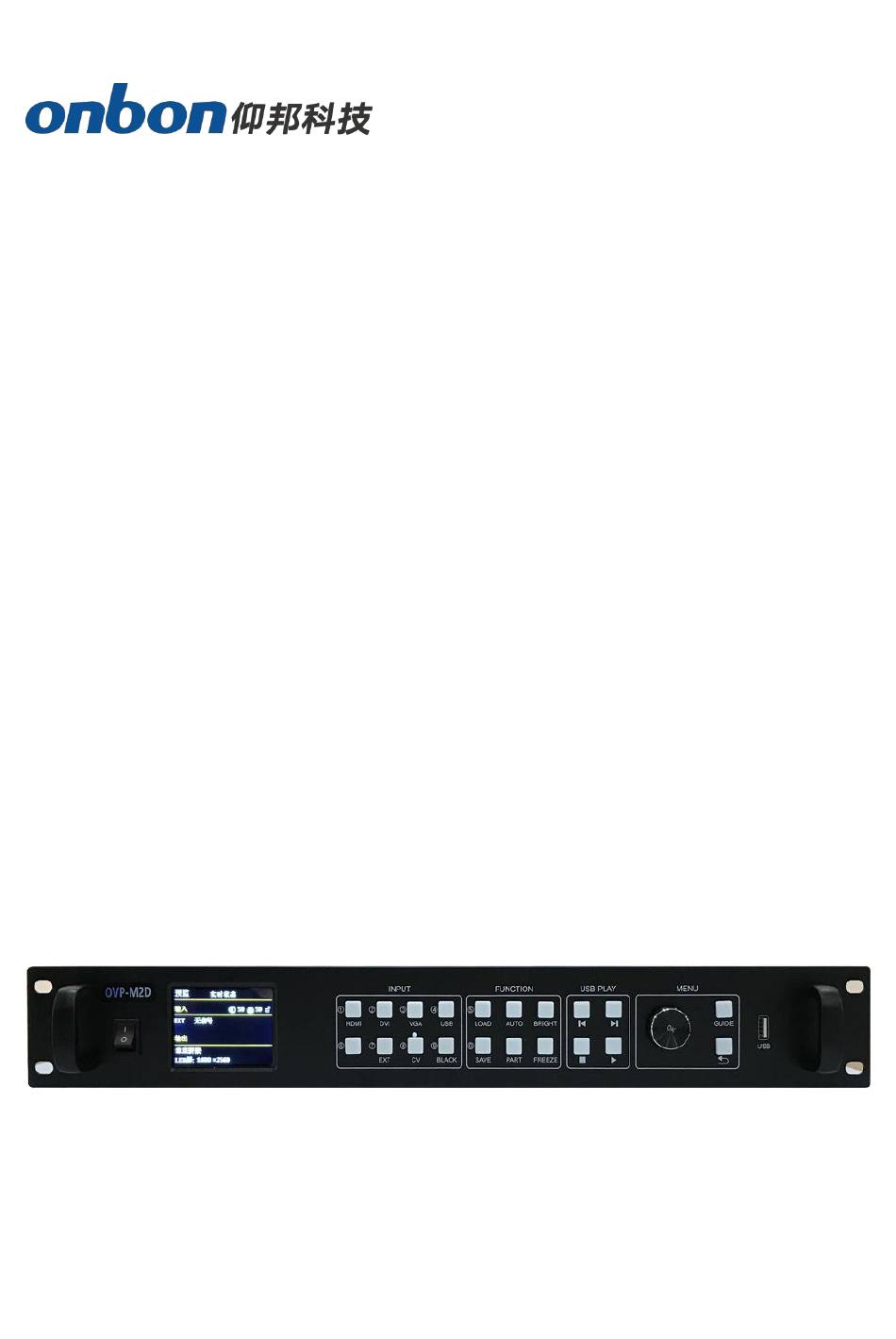

- Page 1 OVP-M2D USER MANUAL Version：V1.2 Release time：2019.8.23...
-
Page 2: Table Of Contents
Directory Directory.................................1 Statement................................1 Instruction................................1 Safety notification............................1 About software.............................2 Functions................................2 Description..............................2 Features................................3 Panel..................................3 Front panel..............................3 Back panel..............................4 Basic steps................................5 Menu..................................6 Menu button operation..........................6 The initial state of the main interface....................6 Main menu..............................7 Output setup..............................9 Crop menu..............................11 Option................................12 USER MODE SAVE AND SWITCH........................ - Page 3 Intelligent guiding.............................17 FAQ..................................19 Parameters................................20 www.onbonbx.com...
-
Page 4: Directory
Statement Any companies or privates cannot copy, transcribe or translate part or whole content of this file without our written permission. And cannot use it on any business or benefit filed with any forms. The specifications and information which are mentioned on the file is for reference only, if there’s update, we will not inform you. -
Page 5: About Software
The above acts are illegal. Functions Description OVP-M2D video processor is a video processing equipment developed and produced by onbon for LED large-screen display, performance and rental, conference room, studio and other markets.This product adopts HD image processing technology, specially designed for the small spacing LED display screen. -
Page 6: Features
Features Maximum resolution is 2.55 million pixels, the horizontal maximum 3840 pixels, vertical maximum 2000 pixels; With 5 channels HD digital and analog input interface; Support 2 channel digital input port DVI\HDMI custom input resolution settings; Support hot backup of input signal source; ... -
Page 7: Back Panel
Interface Power switch 2.8”Full color LCD（320×240） Operation area ,LCD display status INPUT area [DVI] ~ [USB] 8 buttons，8 nos of input port button,can switch window : if BLACK and the LED indication light is on ,then will output black screen. FUNCTION area [BRIGHT]：brightness adjustment [FREEZE]：image freeze... -
Page 8: Basic Steps
Power voltage 100-240V 100-240V~50/60Hz Video input port Computer digital signal input port HDMI digital HD signal input port digital HD signal extension port Computer analog signal input port PAL\NTSC Compound video signal input port Video output port DVI1 - DVI2 DVI output port,connect the LED sending card via DVI connection cable. -
Page 9: Menu
Step 4: Select "Mode Save" or press the [SAVE] key to enter the "Mode Save" menu to save the current display mode for next recall Note: For detailed instructions on the above four steps, please refer to the next chapter "Introduction to Main Menu". -
Page 10: Main Menu
There are 3 areas: Input： It shows selection info of input source, including input signal source format which is detected by system; Output： Shows real LED screen size which is set by users; Top right corner： Shows present contrast, brightness values and button lock status Main menu This equipment adopts 2.8”LCD screen (320*240), and adopts font 24*24 which can display 10 rows. - Page 11 Main menu and branch menu: The second and third menu Main menu Size of LED screen (total width and total height) LAN port output setting (LAN port LED1-LED2): horizontal width, vertical Output setup height, horizontal start, vertical start. Adjust display window(horizontal width, vertical height, horizontal start, vertical start) Brightness,contrast,saturation,sharpness,color temperature and dynamic Image...
-
Page 12: Output Setup
Input EDID (horizontal width,vertical width,refresh rate) Input hot spare (close, backup for input source) VGA setting (adjust automatically,horizontal start,vertical start) Planned tax(tax 1, tax 2...) Other setting(switch stunt, Option voice setting) Testing photo(close, photo 1 to photo 8) Button lock(open, close) Factory reset(ADC calibration,languages,factory reset,firmware version) Output setup... - Page 13 Note: When the refresh rate of the LED screen is selected to 50, the number of loading points of the LED screen can be appropriately increased. Display window In the non-menu state, click the [OK] button to enter the main menu, led setting Horizontal width: the adjustment range is 120 ~ the maximum number of points ...
-
Page 14: Crop Menu
Brightness: adjust range 0-100, default is 50. Contrast: adjust range 0-100, default is 50. Saturation: adjust range 0-100, default is 50. Sharpness: adjust range 0-10, default is 5. Dynamic contrast: adjust range 0-4, default is 1. 0 means closed, it’ s invalid for inputting ... - Page 15 Minimum is 128, maximum is “width of input signal”. Minimum is 128, maximum is “height of input signal”. Minimum is 0, maximum is “width of input signal”- “height of input signal”. Minimum is 0, maximum is “height of input signal”- “width of input signal”. ...
- Page 16 Width：adjust range 640-1920 Height：adjust range 480-2500 Refresh rate：adjust range 60 or 30 Note: （1）The real adjust range is limited by port type and input bandwidth, for this equipment, it can reach to the highest input EDID, cause input source HDMI adopts HDMI 1.4. So, it can reach:1920*1080@60Hz.
- Page 17 VGA X：adjust range 0-300。 VGA Y：adjust range 0-300。 Note: （1）Adjust range of VGA X and VGA Y is decided by system. （2）When there’s excursion of VGA input signal in display, users can click “Auto adjust” as to display correctly. And if“Auto adjust”is invalid, users can adjust“VGA horizontal start” and “VGA vertical start”...
- Page 18 Note： （1）Users must do calibration for the clock in system, then, you can use PLANNED TASK function, calibration will be done by PC software. （2）Users can set many tasks, use different user mode in different time (users need to save user modes first), task setting will be done by PC software.
-
Page 19: User Mode Save And Switch
8. Factory setup Choose “FACTORY SETUP” in “OPTION”， as below: ADC correct：Usually, “VGA\CV correct” was done before selling in our factory. Language： ”Chinese”and “English”, default is Chinese. Factory reset：Reset to default value. Firmware version：Check present hardware version, factory date. ... - Page 20 （2）Maximum 8 user modes, it saves image size, position,status and brightness, contrast. （3）If users changed splicing mode, the saved user modes will be deleted. User mode switch Press “LOAD” on board, as below: Note: （1）Can be switch only if you saved before. （2）If you already save, you can use it by pressing 1-8 numbers.
- Page 21 Users only need to choose “Yes”, and follow the steps. www.onbonbx.com...
- Page 22 This is a professional equipment, users should be professional on it. When you meet some problems, please try to check with below info. And if you still cannot solve, please contact with local agent or contact with us directly. Problem solutions There’s no display or Please check power supply cable.
- Page 23 Parameters Image input VGA×1 VESA: UXGA@60Hz downward compatible HDMI×1 VESA，HDMI 1.4 DVI×1 VESA，compatible with HDMI 1.4 EXT×1 EXT input(DVI or 3G-SID/wireless screen cast is optional) CV×1 Support PAL \ NTSC compound video USB×1 USB2.0，support 1080p@30fps or 720p@60fps content Image output Horizontal splicing: width≤3840, height≤2000, total pixels:≤2.55million pixels DVI×2...
- Page 24 Audio input/output Audio input×1 3.5mm audio port Audio output 3.5mm audio port ×1 Details Input voltage 100-240V~50/60Hz ≤50W Maximum power Working -30℃~70℃ temperature Environmental 15%~85% humidity Operation Panel buttons, LAN, USB, PC software, Dimension 482.6mm×230mm×66.6mm Case design 1.5U case Weight ≤3Kg www.onbonbx.com...
- Page 25 Contact Us Shanghai ONBON Technology Co.,ltd (Headquarters) Address: 7 Floor, Tower 88, 1199#, North Qinzhou Road, Xuhui District, Shanghai City, China ONBON (Jiangsu) Optoelectronic Industrial Co.,LTD Address: 1299#, Fuchun Jiang Road, Kunshan City, Jiangsu Province, China Tel Phone: 086-0512-36912687 Website: www.onbonbx.com...
