USER MANUAL
OVP-H4D
Version:V1.1
Date:2019.7.23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OVP-H4D and is the answer not in the manual?

Questions and answers

Summary of Contents for Onbon OVP-H4D

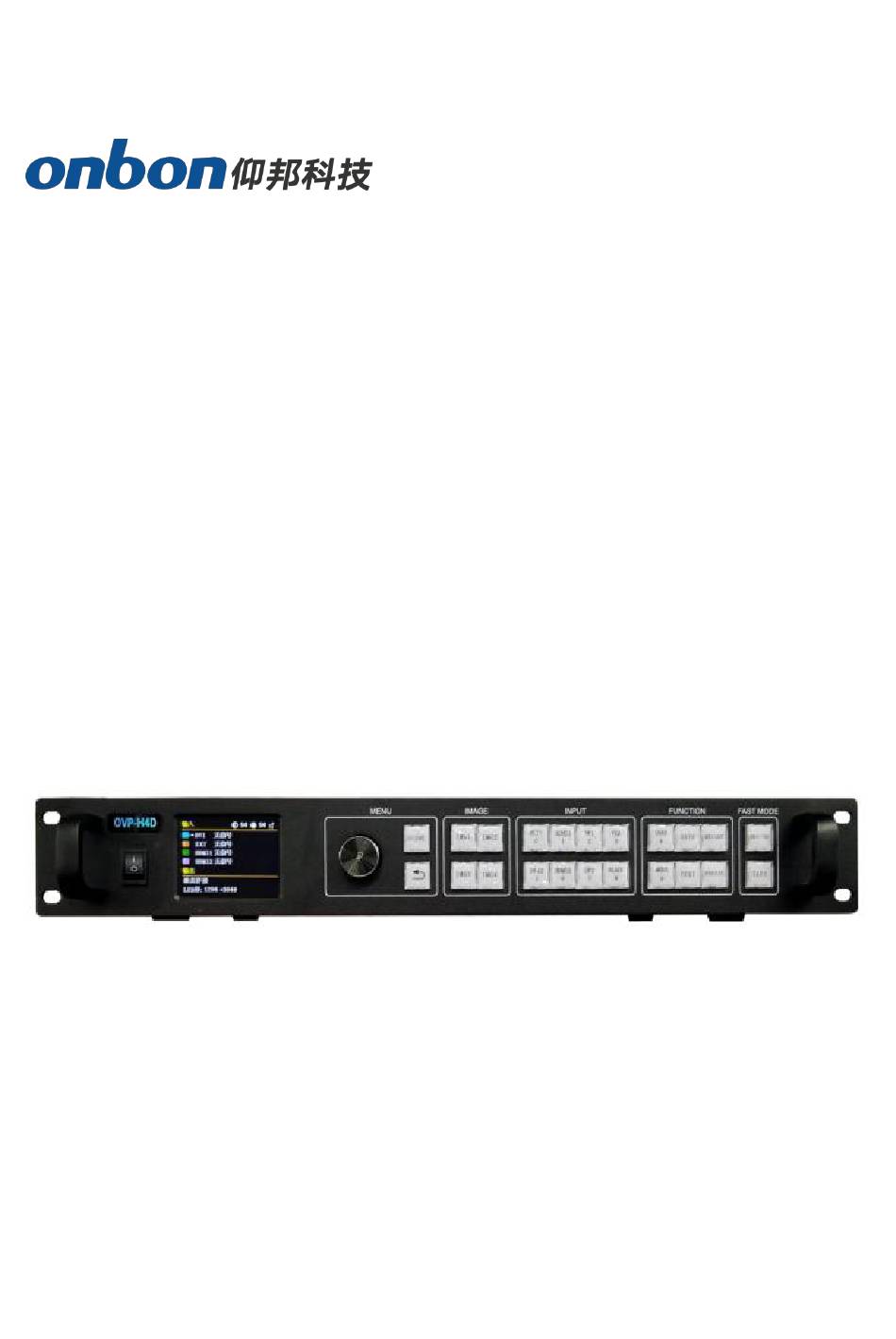

  • Page 1 USER MANUAL OVP-H4D Version:V1.1 Date:2019.7.23...
  • Page 2: Statement

    Statement Any companies or privates cannot copy, transcribe or translate part or whole content of this file without our written permission. And cannot use it on any business or benefit filed with any forms. The specifications and information which are mentioned on the file is for reference only, if there’s update, we will not inform you.
  • Page 3: Table Of Contents

    Directory Statement ........................2 Directory ........................3 Instruction ........................5 Safety notification ....................5 Functions ........................6 Description ......................6 Features ........................ 6 PANEL ......................... 7 Front panel ......................7 Basic steps ......................... 9 Menu ..........................9 Menu button operation ..................9 The initial state of the main interface .............
  • Page 4 Image quality ...................... 18 Crop menu ......................19 Option ........................20 USER SAVE AND LOAD MODE ................24 User save mode ....................24 User mode switch ..................... 25 MODE ........................26 FAST MODE ...................... 26 Intelligent guiding ....................27 FAQ ..........................28 Technical parameters .....................
  • Page 5: Instruction

    Instruction Safety notification There are high voltages in this product. Non-professional maintenance personnel are not allowed to open the case or repair the device by themselves to avoid danger.The input voltage range of this product's AC power supply is 100 ~ 240V, 50/60Hz, please use the correct power supply. This product is grounded through the power cord.
  • Page 6: Functions

    Functions Description OVP-H4D is a hing-end video processor which is used for big LED screen, stage, rent, meeting room and so on. This product adopts 4K image and splicing technology which is used for small spacing LED screen. Which gives promise for the consistency and synchronization of splicing.
  • Page 7: Panel

    PANEL Front panel www.onbonbx.com 第 7 页...
  • Page 8 www.onbonbx.com 第 8 页...
  • Page 9: Basic Steps

    Basic steps Click [OK] to enter the main menu interface, and then follow the steps below to set the controller: The first step: Set LED screen parameters (width, height, network port width and height and start) according to the size of the LED screen; Step 2: Select the corresponding signal source according to the signal source required by the user;...
  • Page 10: The Initial State Of The Main Interface

    [knob] clockwise to Increase the current parameter value. If the adjustment is completed, short press [OK] to write the data and save it. To return to the previous menu, use the return key; until you return to the initial state. Press 【GUIDE】...
  • Page 11 which can display 10 rows. There are 6 parts on menu. If you are not in menu status, please click【OK】,it will show: Main menu and branch menu: Main menu The second and third menu Vertical splice:maximum 4000, vertical maximum 3840 Splice mode Horizontal splice:...
  • Page 12: Splice Mode

    Total width, total heightOUT1-OUT2: horizontal width, Setting vertical height, horizontal start, vertical start Image Brightness,contrast,saturation,sharpness,color temperature quality and dynamic contrast. Switch, crop width, crop height, crop horizontal start, crop Crop vertical start Save Mode 1-Mode 8 mode Load Mode 1-Mode 8 mode Input EDID (horizontal width,vertical width,refresh rate) Input hot spare (close, backup for input source)
  • Page 13 then select "splicing mode", and then select "horizontal splicing" to pop up the following menu: After clicking the "OK" button, it will be confirmed. At this time, the system will automatically jump to the "LED screen parameter" setting menu, and the user needs to continue to complete the relevant parameter settings. In the horizontal splicing mode, the four DVI output ports OUT1~OUT2 of the splicer are arranged in a horizontal direction.
  • Page 14: Led Screen Parameters

    and the total number of points cannot exceed 5 million For details, please refer to the setting instructions of "LED screen parameter" below. The splicing method is more suitable for the ultra-high-definition LED large screen in the shape of a vertical bar. LED screen parameters LED size Click【OK】as to enter into main menu, then choose “LED setting”, as...
  • Page 15 After the LED screen parameters are set, move the cursor to [OK] and press the [OK] key to save the data. If the "splicing method" is changed before the LED screen parameters are set or the LED screen width parameter crosses the boundary under horizontal splicing The system will be in the reset state, users need to wait patiently for the system to reset.
  • Page 16: Layout

    LED screen total width <= 4000 LED screen total height <= 3840 And the total number of points on the LED screen can not exceed 5 million points.Value range of OUT1~OUT4 output port:Width 0~4000, height 0~2000 Note: When the width and height of an output port in OUT1~OUT2 is 0, it means that the output port has no output.
  • Page 17 then select "Output Settings", and then select "Network Port Output Settings" to enter the network port output settings menu: note: (1) As mentioned above, when the "accept card connection" setting of each LED screen's network port is completed through the PC control software, the LED screen size and so on will be automatically calculated and updated to the controller synchronously, so generally no need to set the LED screen parameters Including the size of the LED screen and the...
  • Page 18: Image Quality

    Note: Regardless of whether the input image ratio is 4:3 or 16:9, the output image is displayed by "full screen" by default, so in some cases it will cause equal proportion distortion of people, at this time, you can change the width and height of the image through "display window adjustment"...
  • Page 19: Crop Menu

     Brightness: adjust range 0-100, default is 50.  Contrast: adjust range 0-100, default is 50.  Saturation: adjust range 0-100, default is 50.  Sharpness: adjust range 0-10, default is 5.  Dynamic contrast: adjust range 0-4, default is 1. 0 means closed, it’s invalid for inputting VGA signal source.
  • Page 20  Minimum is 128, maximum is “width of input signal”.  Minimum is 128, maximum is “height of input signal”.  Minimum is 0, maximum is “width of input signal”- “height of input signal”.  Minimum is 0, maximum is “height of input signal”- “width of input signal”.
  • Page 21 ultra-high-resolution LED large screen within the range of 3840x2160. Because the point-to-point display does not perform any scaling on the input image, the display image on the LED large screen can reach the highest resolution.Select the input resolution in the "Advanced Options" to enter the input resolution menu: ...
  • Page 22 3.VGA setup Select “VGA SETTING”,as below:  VGA X:adjust range 0-300.  VGA Y:adjust range 0-300. Note: (1)Adjust range of VGA X and VGA Y is decided by system. (2)When there’s excursion of VGA input signal in display, users can click “Auto adjust”...
  • Page 23 Note: (1) The user must first calibrate the internal clock of the system before using the timing switch function. The calibration is done by the PC software. (2) When the timing switch is turned on, several tasks can be set, and different user modes can be called at different time periods (this user mode must be saved in advance), and the task settings are also completed by the PC software;...
  • Page 24: User Save And Load Mode

    Choose “FACTORY SETUP” in “OPTION”, as below:  ADC correct:Usually, “VGA\CV correct” was done before selling in our factory.  Language: ”Chinese”and “English”, default is Chinese.  Factory reset:Reset to default value.  Firmware version:Check present hardware version, factory date. USER SAVE AND LOAD MODE User save mode Press the front panel shortcut "SAVE"...
  • Page 25: User Mode Switch

    After selecting the save mode, press [OK] to save. note:(1) The solid circle before the mode indicates that the currently selected mode data already exists, and the open circle indicates that the currently selected mode data does not exist. (3) Up to 8 user modes can be saved. In addition to the size, position and status of the screen, the parameters saved in the user mode also include brightness and contrast (4) When the splicing method is changed, the saved user mode will be...
  • Page 26: Mode

    (1) Only user modes that have been previously saved can be called; 2) For the saved user mode, you can also directly press the numeric keys 1~8 to call it directly. MODE Press“MODE” to the fix mode calling: Move the cursor to the corresponding mode and press [OK] to call the corresponding system fixed mode.
  • Page 27: Intelligent Guiding

    At this time, "current playback" corresponds to the LED screen display (screen 1), "pre-monitor source" corresponds to the monitoring window in the lower right corner of the LCD monitor, the user can select the desired signal source in this monitoring window When the pre-monitoring source is stable and correct, press the "TAKE"...
  • Page 28: Faq

    This is a professional equipment, users should be professional on it. When you meet some problems, please try to check with below info. And if you still cannot solve, please contact with local agent or contact with us directly. Problem solutions There’s no display or image...
  • Page 29 Image cannot  Please check LED screen width and height show value is the same with LED screen resolution or on full LED not. Users can set LED screen parameters on “IMAGE OUTPUT”in menu. display. VGA input image  Continuously press “AUTO”button on board until it shows correctly.(When you do auto adjust, please use full screen without black frame signal) not in middle.
  • Page 30: Technical Parameters

    Technical parameters www.onbonbx.com 第 30 页...
  • Page 31 Contact Us Shanghai ONBON Technology Co.,ltd (Headquarters) Address: 7 Floor, Tower 88, 1199#, North Qinzhou Road, Xuhui District, Shanghai City, China ONBON (Jiangsu) Optoelectronic Industrial Co.,LTD Address: 1299#, Fuchun Jiang Road, Kunshan City, Jiangsu Province, China Tel Phone: 086-0512-36912687 Website: www.onbonbx.com...
