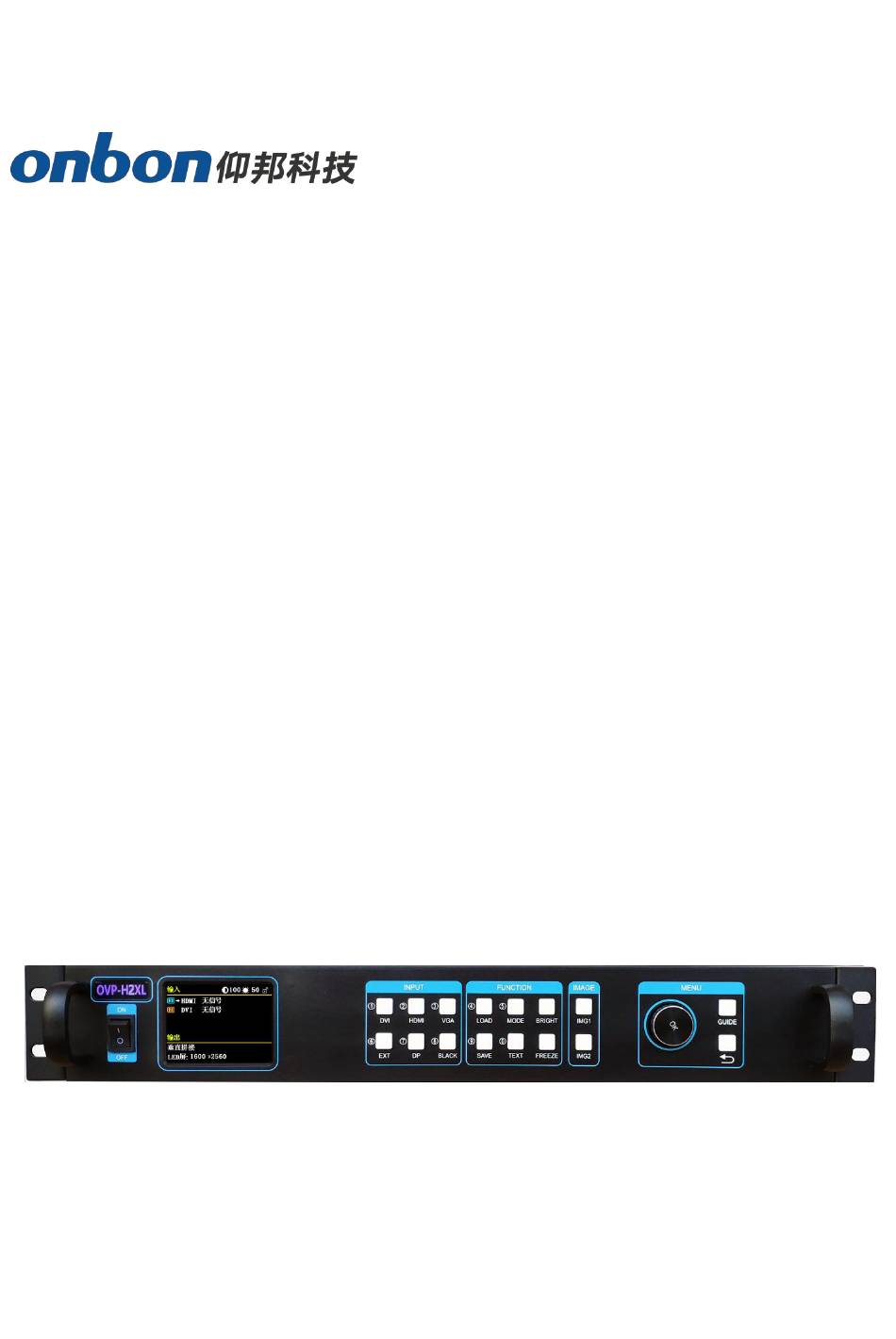

OVP-H2XL USER MANUAL
Version：V1.0
Date：2020.5.27
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OVP-H2XL and is the answer not in the manual?

Questions and answers

Related Manuals for Onbon OVP-H2XL

Summary of Contents for Onbon OVP-H2XL

  • Page 1 OVP-H2XL USER MANUAL Version：V1.0 Date：2020.5.27...

  • Page 2: Statement

    Statement Without the written permission of the company, any unit or individual may not copy, copy, copy or translate Part or all of this manual. Do not use this manual in any form or in any way (electronic, mechanical, photocopying, recording or other possible ways) to spread or use the product for any commercial or profit-making purpose.

  • Page 3: Table Of Contents

    Directory Statement................................... 1 Directory.....................................2 INSTRUCTION................................... 3 Safety Notice................................3 About software................................. 3 FUNCTION..................................4 Description..................................4 Features....................................4 Panel instructions................................5 Front panel.................................5 Back panel..................................6 Basic steps..................................7 Menu....................................8 1.1 Menu key operation..............................8 1.2 Initial menu status..............................8 Initial menu status..............................8 Main menu.................................9 Output configuration............................11 Image effect menu..............................

  • Page 4: Instruction

    INSTRUCTION Safety Notice There are high voltages in this product, so non-maintenance personnel must not open the case or repair the equipment by yourself to avoid danger. The input voltage range of this product's AC power supply is 100 ~ 240V, 50 / 60Hz, please use the correct power supply.

  • Page 5: Function

    FUNCTION Description OVP-H4XL dual-picture video controller is a mid-to-high-end video processing equipment developed and produced by our company for the LED large screen display, application in showing and rental, conference room, studio and other markets. This product adopts 4K image processing technology specially designed for small-pitch LED display.

  • Page 6: Panel Instructions

     All input signal sources and output modes can be quickly and seamlessly switched;  With 5 ultra high definition (UHD) digital and analog input interfaces;  Support open double pictures and arbitrary layout;  Support 3 digital input ports DVI \ HDMI \ DP custom input resolution setting ...

  • Page 7: Back Panel

    FUNCTION 区 [LOAD]：fast switch to user mode [SAVE]：fast switch to user save mode [BRIGHT]：fast switch to brightness adjust hot key. [MODE] ：fast switch to system fixed mode menu. [TEXT]：keep the function button [FREEZE]：image freeze hot key IMAGE area [IMG1]- [IMG2]：You can select the opened screen 1 ~ screen 2 window, and the LED light indicates the currently selected window.

  • Page 8: Basic Steps

    HDMI HDMI Audio input/out put port HDMI audio HDMI video input port built-in AUDIO_IN Analog audio input port AUDIO_OUT Analog audio output port Control interface Network control port USB input port WIFI WIFI wireless control RS232 RS232C control DB9 port Power supply Input voltage 100-240V~50/60Hz...

  • Page 9: Menu

    to Main Menu". Menu 1.1 Menu key operation The key operation area which includes a knob, a confirmation key [OK], a return key [ ] and a [GUIDE] key. In the initial state of the system, short press [OK] to enter the main menu setting interface. When pressing the return key, the menu system will return to the previous menu until it returns to the initial state.

  • Page 10: Main Menu

    Above three area display content instruction： Input：  It displays the input source selection information, including the input source signal format detected by the system. output：  The first line: display the actual LED screen size set by the user The second line: display the prompt information Upper right corner：...
  • Page 11 Window 1 (horizontal width, vertical height, horizontal start, vertical start) is always on. Window Window 2 (picture switch, horizontal width, vertical height, layout horizontal start, vertical start) Image effect Brightness, contrast, saturation, sharpness, color temperature, dynamic contrast Image capture Intercept switch, intercept width, intercept height, horizontal start, vertical start Mode save Mode1- mode16...

  • Page 12: Output Configuration

    Output configuration In the non-menu state, click the [OK] button to enter the main menu, and then select "Output Settings", the following menu will pop up: LED screen size In the non-menu state, click [OK] to enter the main menu, then select "Output Settings", and then select "LED Screen Size"...

  • Page 13: Image Effect Menu

    LAN output setup In the non-menu state, click [OK] to enter the main menu, then select "Output Settings", and then select "Network Port Output Settings" to enter the network port output settings menu: Note: (1)As mentioned above, when the PC screen control software completes the settings of the “connect card access”...

  • Page 14: Image Crop Menu

    Brightness: The adjustment range is 0-100, and the default value is 50.  Contrast: the adjusting range is 0-100, and the default value is 50.  Saturation: the adjustment range is 0-100, and the default value is 50.  Sharpness: the adjustment range is 0-10, and the default value is 5. ...

  • Page 15: Advance

    Capture switch: The input image intercept function is on or off, and the default is off.  Capture width: the minimum value is 128, and the maximum value is "the width of the  input signal". Capture height: The minimum value is 128, and the maximum value is "the height of the ...
  • Page 16 The input resolution setting provides users with DVI / HDMI input signal source EDID editing function, and sets the recommended resolution of the input signal source. The WIN7 computer graphics card can automatically read the recommended EDID resolution of the input DVI / HDMI port of the device. Output recommended resolution; after WIN10 input resolution setting is completed, you must manually select "Recommended Resolution"...
  • Page 17 VGA setup Select VGA setting in "Advanced Options", then enter the VGA setting menu: Horizontal start: adjustment range 0-300.  Vertical start: the adjustment range is 0-300.  Note: (1)The actual adjustable range of horizontal start and vertical start is determined by the internal calculation of the system.
  • Page 18 task settings are also completed by the PC software;( (3) When the timing switch is turned on and the task is valid, the timing switch can be turned off or on at any time through the LCD menu. Other setup There are three adjustment items in "Other Settings": Image rotation: contains three special effects of "HV mirror", "horizontal mirror"...

  • Page 19: User Mode Save And Recall

    Factory reset: Reset to factory default.  Firmware version: Used to query the current software and hardware version  number, and the factory date. User mode save and recall User mode save Press the front panel shortcut "SAVE" to quickly switch out the user mode save menu: After selecting the save mode, press [OK] to save.

  • Page 20: Intelligent Navigation

    keys 1 ~ 9 to directly view, and then press "OK" key to directly call. Intelligent navigation Intelligent navigation provides users with a means to quickly debug the splicer when using the splicer for the first time. The LED screen is set up through three simple steps. The software is simple, convenient, and practical.
  • Page 21 Information is Check whether the input signal is correctly violated, and  displayed on the LCD it has been switched to the corresponding signal source. screen, but no image is output. Check whether the display terminal supports the  output resolution and refresh rate of the device. Check whether the brightness and contrast are set too ...

  • Page 22: Specification

    Specification Image input port VGA×1 VESA standard：1600×1200@75Hz or belowcompatible HDMI×1 VESA standard ：HDMI 2.0，3840×2160@60Hz or below compatible DVI×1 VESA standard, compatible with HDMI 1.4，1920×1080@60Hz or below compatible EXT×1 DVI Expansion input interface (DVI or SDI or wireless projection screen), factory standard DVI DP×1 VESA standard，DP1.2，3840×2160@60Hz or below compatible Image output port...
  • Page 23 Operation LCD menu, panel keys, LAN, USB, wifi, PC configuration software mode Demension 482.6mm×300mm×66.6mm Case 1.5U Weight ≤3Kg...
  • Page 24 CONTACT US Shanghai ONBON Technology Co.,ltd (Headquarters) Address: 7 Floor, Tower 88, 1199#, North Qinzhou Road, Xuhui District, Shanghai City, China Tel Phone:0086 15921814956 Website: www.onbonbx.com ONBON (Jiangsu) Optoelectronic Industrial Co.,LTD Address: 1299#, Fuchun Jiang Road, Kunshan City, Jiangsu Province, China...
