quick start proceDure

Connect the DC1703A to a DC590 USB serial controller
using the supplied 14 conductor ribbon cable. Connect
the DC590 to a host PC with a standard USB A/B cable.
Run the QuikEval™ evaluation software supplied with the
2
Arrow.com. Arrow.com.
Downloaded from Downloaded from
DC590 or download it from www.linear.com. The correct

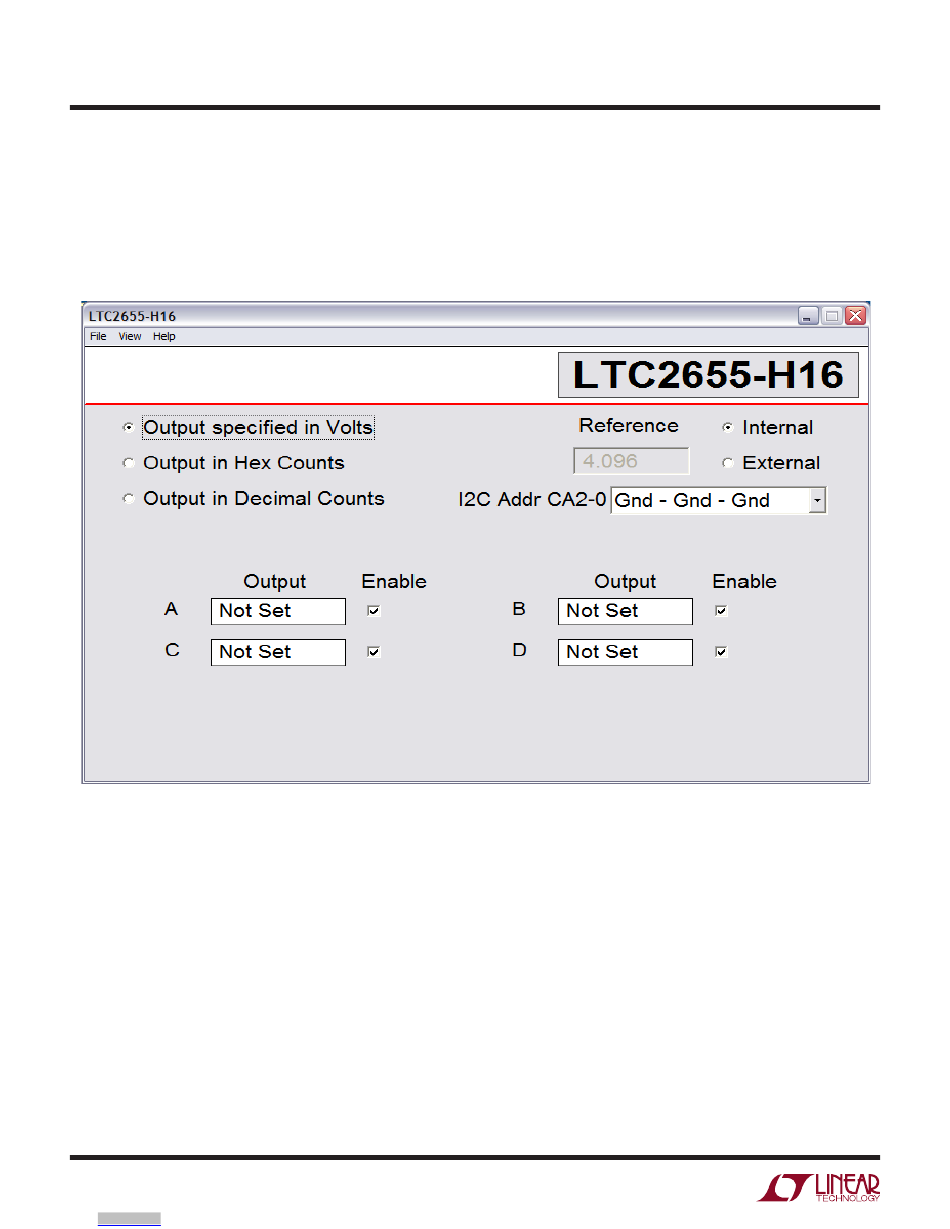

control panel will be loaded automatically. In order to
update the DAC output value, fill in desired output code
inside the corresponding DAC box.
