INSTALLATION GUIDE

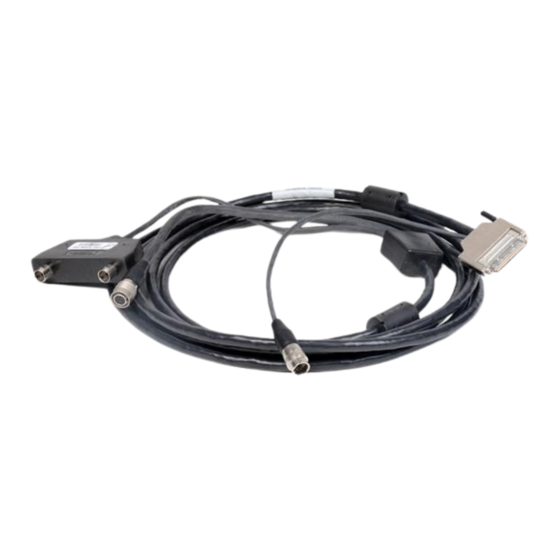

IMAQ A8014 Camera Cable
™
Note
Refer to the Sony and JAI Web sites and documentation for information about the
functionality of these cameras.
Getting Started
This guide describes how to use the National Instruments IMAQ A8014
analog camera cable to connect the PCI/PXI-1409 or PCI-1410 image
acquisition (IMAQ) device to a camera.
The IMAQ A8014 cable provides direct connection between the
IMAQ 1409/1410 device and the camera without using a breakout box.
Use the IMAQ A8014 cable with the following Sony and JAI cameras:
•
Sony XC-ES Series
•
Sony XC-ST Series
•
Sony XC-HR Series
•
JAI A-Series
The following items are necessary for connecting the IMAQ A8014 cable:
❑
IMAQ A8014 cable
❑
IMAQ A8014 Camera Cable Installation Guide
❑
IMAQ 1409 device and documentation
or
❑
IMAQ PCI-1410 device and documentation
❑
Camera and documentation
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for National Instruments IMAQ A8014
Summary of Contents for National Instruments IMAQ A8014
- Page 1 (IMAQ) device to a camera. The IMAQ A8014 cable provides direct connection between the IMAQ 1409/1410 device and the camera without using a breakout box. Use the IMAQ A8014 cable with the following Sony and JAI cameras: • Sony XC-ES Series •...
- Page 2 Connecting the IMAQ A8014 Cable Complete the following steps to connect the IMAQ A8014 cable to the IMAQ 1409/1410 device and camera. Refer to Figure 1 for an illustration of the IMAQ A8014 cable. Connect the 68-pin male VHDCI connector to the connector on the IMAQ 1409/1410 device and tighten the thumbscrews.
- Page 3 Figure 2. 68-Pin VHDCI Connector (Cable) Figure 3. Hirose Connector (Cable) © National Instruments Corporation IMAQ A8014 Installation Guide...
- Page 4 Visit the National Instruments Camera Advisor Web site at ni.com/camera application notes and sample code for many of the cameras the IMAQ A8014 supports. National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks.
