Step 1:Attach the tube join support by sliding in tube into legs,
make sure height of the 2 legs are the same.
Step 2:Attach the second join support in front of the tube join
support using provided allen wrench (C) with bolt (A).
Step 3:Assembly the join support from below, using provided
allen wrench (C) with bolt (B).
Step 4:Attach the table top, using screw driver with screws (D),
before screwing the top table,place the table top above 2 side panels,
make sure table edges flat with side panels. Adjust table height up by
pushing up button until have enough space to screw the table top.
Step 5:Adjust table height by pushing up or down button on right
front side of table top
Step 6: Attach the "U'' bracket (E) using screws (D) with screw driver,
right in the middle of join support bar.
Step 7:Adjust Leveler if needed to level case on uneven floor.
STEP 1
STEP 6
STEP 7
STEP 1
STEP 4
STEP 3
STEP 5
Advertisement
Related Manuals for Hooker Furniture 1623-10052
Summary of Contents for Hooker Furniture 1623-10052

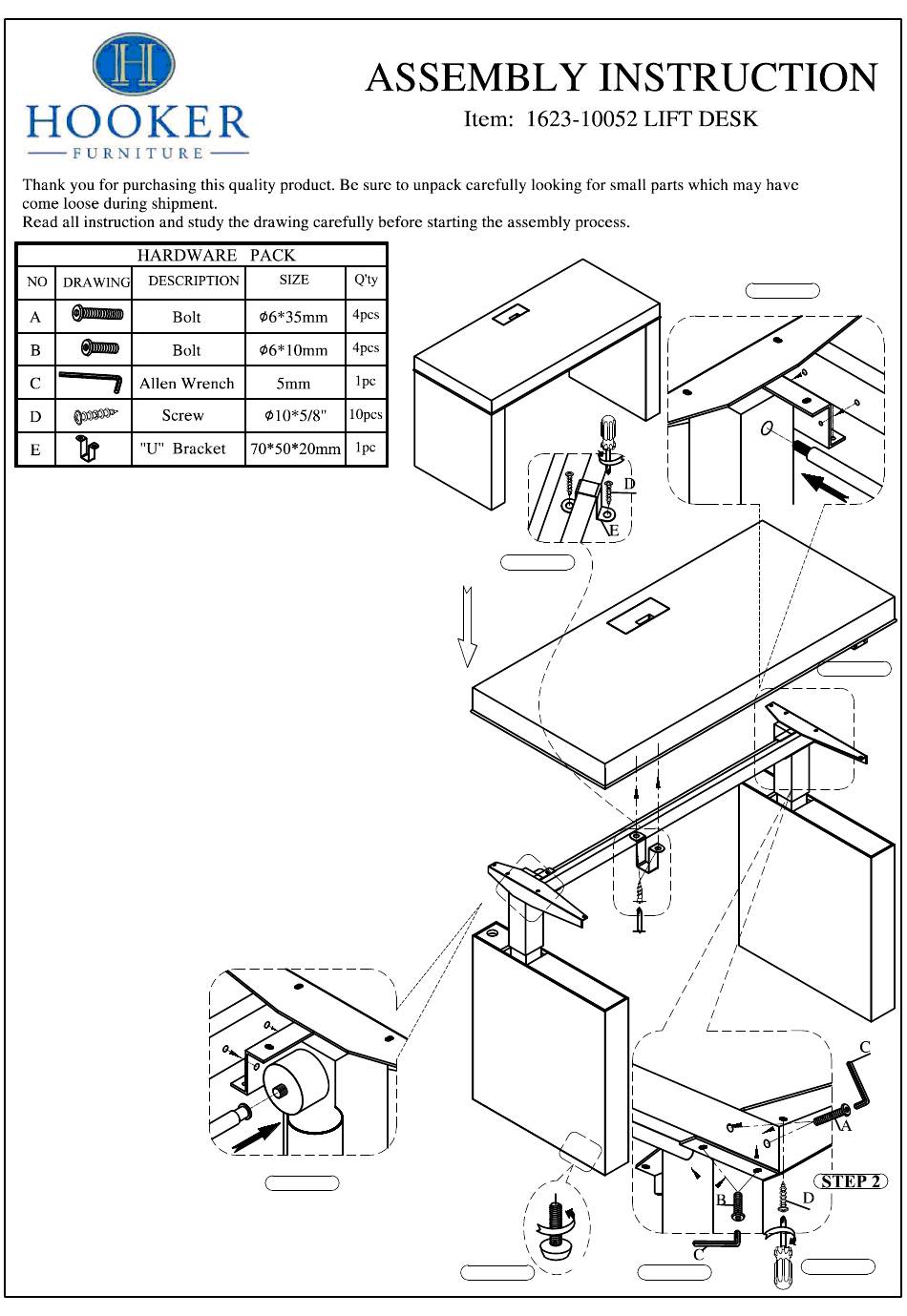

- Page 1 STEP 1 STEP 6 Step 1:Attach the tube join support by sliding in tube into legs, make sure height of the 2 legs are the same. Step 2:Attach the second join support in front of the tube join STEP 5 support using provided allen wrench (C) with bolt (A).
- Page 2 STEP 4 STEP 4 STEP 1 STEP 7 STEP 2 STEP 3 DISASSEMBLY INSTRUCTION Step 1:Untighten the "U'' bracket by unscrewing using screw driver. Step 2: Untighten bolt that attached to the table top. Lift the top and put on flat smooth surface Step 3: Untighten the bolt that attached the join support to the lift hardware leg.
- Page 3 STEP 4 STEP 9 STEP 5 STEP 7 STEP 6 STEP 10 RE-ASSEMBLY INSTRUCTION Step 1: Slide in the wood cap to the lift hardware leg. Step 2: Put in inside each of side panel, the lift leg with motor will be on the left side, the other one is on right side.
- Page 4 Step 4:Attach the table top, using screw driver with screws (D), before screwing the top table, place the table top above 2 side panels, make sure table edges flat with side panels. Adjust Step 1:Attach the tube join support by sliding in table height up by pushing up button until have tube into legs, make sure height of the 2 legs are enough space to screw the table top.
- Page 5 Step 1: Pushing up to adjust the desk top to hightest Step 4: Untighten the bolt that attached the join support to posittion then untighten the "U'' bracket by unscrewing the lift hardware leg. using screw driver. Step 2: Untighten the desk top screw Step 5: Pull out one of the side panel to disassembly the tube join support.
