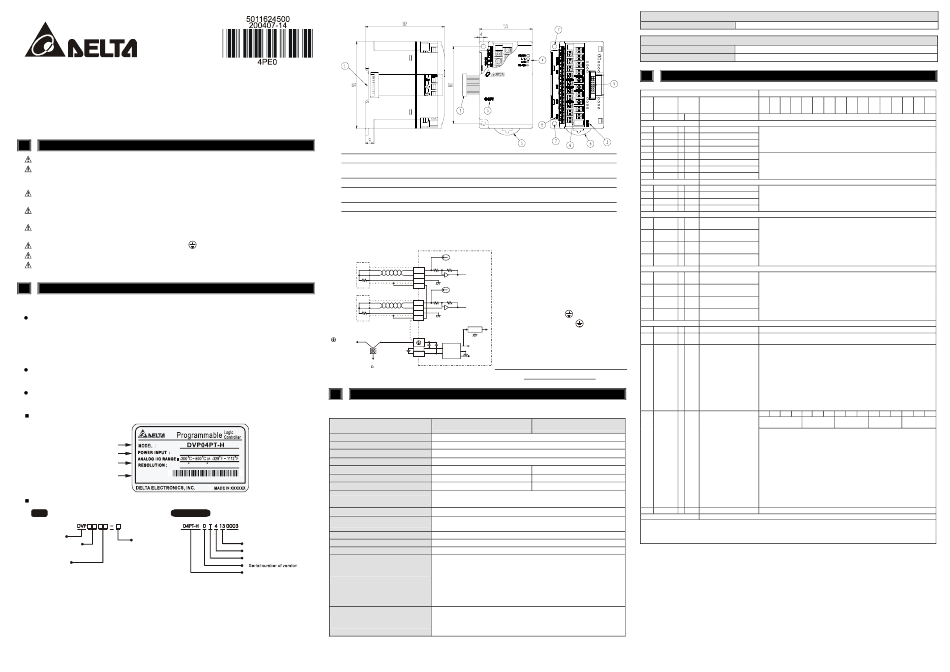

DVP04PT-H
DVP-EH
Platinum Temperature Sensors
Instruction Sheet
1
WARNING
Always read this manual thoroughly before using the DVP04PT-H.
In order to avoid electric shock, do not touch the terminals or conduct any maintenance while
power is applied to the PLC. Never open the PLC. Only qualified Delta personnel should conduct
any internal electrical work on the PLC.
This is an OPEN-TYPE device and is certified to meet the safety requirements of IEC 61131-2
(UL 508) when installed in an enclosure.
The DVP04PT-H must be placed in an environment away from high temperatures, high humidity,
exceessive vibration, corrosive gases, liquids, airborne dust, and metallic particles.
Do not apply AC power to any of the input/output terminals, this will cause permanent damage to
the DVP04PT-H.
Make sure that the DVP04PT-H is properly grounded
, to avoid any electromagnetic noise.
Use wires with resistance when connecting the platinum resistance thermister (RTD) to the PLC.
Please keep the wires as short as possible when connecting the RTD's to the PLC and keep
power wires as far away as possible from I/O wires to avoid noise interference.
2
INTRODUCTION
2.1
Model Explanation and Peripherals
Thank you for choosing DELTA's DVP Series PLC. The DVP04PT-H allows the connection of four
platinum temperature sensors (PT100 3-WIRE 100 Ω
C1604-1989)). The DVP-PLC EH MPU transforms the sensors input into a 14 bit digital signal,
which may then be manipulated using TO and FROM commands in the ladder logic program.
There are 49 Controlled Registers (CR) in each module (each register is 16 bits).
DVP04PT-H platinum temperature sensors can update software version by RS-485
communication.
The DVP04PT-H works with both Centigrade and Fahrenheit. The input resolution for Centigrade
is 0.1 degrees and for Fahrenheit is 0.18 degrees.
Nameplate Explanation
PLC model
20.4VDC ~ 28.8VDC
Input Power Supply Spec.
Analog Input / Output Module Spec.
0.1 C or 0.18 F
Barcode
VX.XX
04PT-H0T 4250003
Model Explanation
Model
Serial Number
Product Series
Input+O utput point
S: for SS series MPU
P: for EP series MPU
H: for EH ser ies MPU
Model type
AD: Analog input module
XA: A/D , D/A Functions
DA: Analog output module
RT: Resistor Thermocouple
PT: Platinum temperatur e sensors(PT-100)
HC: High speed count input module
TC: Thermocouple sensor s(Type J/K)
PU: single axis positioning unit
2.2
Product Profile and Outline
1. DIN rail location (35mm)
2. Mounting hole to connect expansion
unit/expansion module
3. Model name
4. Indicator LED for power, error and run state
5. DIN rail clip
2.3
External wiring
PT100
Shielded*1
PT100
Shielded*1
3850 PPM/°C (DIN 43760 JIS
terminal of
power module
*3
System
Grounding
Class 3 Grounding
(100
of less)
3
3.1
Function Specifications
Platinum Temperature Module
(04PT)
Power supply voltage
Analog input channel
Sensors type
Current excitation
Temperature input range
Digital conversion range
Resolution
Overall accuracy
Response time
Isolation Method
Digital data format
Average function
Production week
Self diagnostic function
Production year (2004)
Production place (Taoyuan)
Production Model
Communication mode (RS-485)
Connection to a DVP-PLC MPU
in series
3.2
Other Specification
Unit: mm
6. Terminals
7. Expansion hole of the expansion unit
mounting pins
8. Terminal layout
9. Mounting port to connect expansion
unit/expansion module
Note 1: Use only the wires that are supplied
with your temperature sensor (PT
1mA
100) for analog input and separate
from other power line or any wire that
CH1
L+
may cause noise. Please use 3 wire
L-
I-
for PT 100.
1mA
FG
AG
Note 2: Terminal FG is a grounding location for
CH4
L+
noise suppression.
L-
I-
Note 3: Please connect
terminal of power
FG
AG
supply module and
*2
5V
DVP04PT-H platinum temperature
AG
sensors module to system earth
+15V
DC/ DC
24+
AG
24-
ground or connects to machine cover.
Converter
-15V
Warning: DO NOT connect wires to the No
Connection (●) terminals.
STANDARD SPECIFICATIONS
Centigrade (°C)
Fahrenheit (°F)
24 VDC (20.4VDC~28.8VDC) ( –15%~+20%)
4 channels per module
3-WIRE PT100Ω 3850 PPM/°C(DIN 43760 JIS C1604-1989)
1 mA
-200°C~600°C
-328°F~1112°F
K-2000~K6000
K-3280~K11120
14 bits (0.1°C)
14 bits (0.18°F)
±0.5% of full scale of 25°C(77°F), ±1% of full scale during 0~55°C
(32~131°F)
200 ms × channels
Isolation between digital and analog circuitry. There is no isolation
between channels.
2's complement of 16-bit, (13 Significant Bits)
Yes (CR#2~CR#5 may be set and the range is K1~K4096)
Upper bound and lower bound detection per channel
Yes, there are ASCII/RTU modes, communication rate can be
4800 /9600 /19200 /38400 /57600 /115200. Communication
format of ASCII mode is 7Bit, even bit, 1 stop bit (7 E 1).
Communication format of RTU mode is 8Bit, even bit, 1 stop bit (8
E 1). When connecting to PLC MPU in series, RS-485 can't be
used. The RS-485 is disabled when the DVP04PT-H is connected
in series to an MPU (use the RS485 on MPU).
When DVP04PT-H modules are connected to an MPU, the
modules are numbered from 0 – 7. 0 is the closest to the MPU
and 7 is the furthest. The Maximum number of modules is 8
modules and they do not occupy any digital I/O points of the MPU.
Power Specification
Maximum Power Consumption
2W at 24 VDC (20.4VDC~28.8VDC) (-15 % ~ + 20%)
Environment Condition
Environment Condition
Follow the DVP-PLC MPU.
Static Electricity Prevention
Proper grounding and handling required of the unit and terminals
4
CR (CONTROLLED REGISTER)
DVP04PT-H platinum temperature sensors
RS-485
CR
Parameter
Latched
Register name
b15 b14 b13 b12 b11 b10 b9
No.
address
#0
H 4064
R
Model type
System used, data length is 8bits (b7~b0). DVP04PT-H model code = H 0402
#1
Reserved
#2
H 4066
○ R/W
CH1 average number
#3
H 4067
○ R/W
CH2 average number
The number of readings used for "average" temperature on channels CH1~CH4.
#4
○ R/W
CH3 average number
Setting range is K1~K4096 and factory setting is K10.
H 4068
#5
H 4069
○ R/W
CH4 average number
#6
H 406A
R
CH1 average degrees(°C)
#7
R
CH2 average degrees(°C)
H 406B
Average degrees for channels CH1~CH4. (unit: 0.1 degrees C)
#8
H 406C
R
CH3 average degrees(°C)
#9
R
H 406D
CH4 average degrees(°C)
#10~ #11
Reserved
#12
H 4070
R
CH1 average degrees(°F)
#13
H 4071
R
CH2 average degrees(°F)
Average degrees for channels CH1~CH4. (unit: 0.1 degrees F)
#14
R
CH3 average degrees(°F)
H 4072
#15
H 4073
R
CH4 average degrees(°F)
#16~ #17
Reserved
R
Present temperature of
#18
H 4076
CH1 (°C)
R
Present temperature of
#19
H 4077
CH2 (°C)
Present temperature of channels CH1~CH4. (unit: 0.1 degrees C)
R
Present temperature of
#20
H 4078
CH3 (°C)
R
Present temperature of
#21
H 4079
CH4 (°C)
#22~ #23
Reserved
R
Present temperature of
#24
H 407C
CH1 (°F)
R
Present temperature of
#25
H 407D
CH2 (°F)
Present temperature of channels CH1~CH4. (unit: 0.1degrees F)
R
Present temperature of
#26
H 407E
CH3 (°F)
R
Present temperature of
#27
H 407F
CH4 (°F)
#28~ #29
Reserved
terminal of
#30
H 4082
R
Error status
Data register stores the error status, refer to fault code chart for details.
○ R/W
Communication
address
RS-485 communication address.
#31
H 4083
setting
Setting range is 01~255 and factory setting is K1
#32
H 4084
○ R/W
Communication baud rate
Communication baud rate (4800, 9600, 19200, 38400, 57600 and 115200 bps).
setting
Communication format: ASCII mode is 7Bit, even bit, 1 stop bit (7 E 1).
Communication format of RTU mode is 8Bit, even bit, 1 stop bit (8 E 1).
b0: 4800 bps (bit/sec).
b1: 9600 bps (bit/sec). (factory setting)
b2: 19200 bps (bit/sec).
b3: 38400 bps (bit/sec).
b4: 57600 bps (bit/sec).
b5: 115200 bps (bit/sec).
b6~b13: Reserved.
b14: switch between low bit and high bit of CRC code (only for RTU mode)
b15: RTU mode.
#33
H 4085
○ R/W
Reset to factory setting
b15 b14 b13 b12 b11 b10 b9
Definition of ERR
Example: Setting of CH1
1. b0 Reserved
2. b1 Reserved
3. b2: Set to 1 and PLC will be reset to factory settings.
Definition of ERR LED: b12~b15=1111(factory settings)
1. b12 corresponds to CH1: when b12=1, scale exceeds the range or external
2. b13 corresponds to CH2: when b13=1, scale exceeds the range or external
3. b14 corresponds to CH3: when b14=1, scale exceeds the range or external
4. b15 corresponds to CH4: when b15=1, scale exceeds the range or external
#34
H 4086
R
Software version
Display software version in hexadecimal. Example: H 010A = version 1.0A.
#35~#48
System used
○ means latched.
╳ means not latched.
R means can read data by using FROM command or RS-485.
W means can write data by using TO command or RS-485.
Explanation:
1. CR#0: The PLC model type.
2. CR#1, CR#10, CR#11, CR#16, CR#17, CR#22, CR#23, CR#28, CR#29 are reserved.
3. CR#2 ~ CR#5: Used to set the number of input readings used for the average temperature
calculation. The available range is K1~K4096 and factory setting is K10.
4. CR#6 to CR#9: The average temperature (
multiple temperature readings. Example: If CR#2 is 10, the temperature in CR#6 will be the
average of the last 10 readings on CH1.
5. CR#12 to CR#15: The average temperature (
multiple temperature readings. Example: If CR#2 is 10, the temperature in CR#12 will be the
average of the last 10 readings on CH1.
6. CR#18 ~ CR#21: display present temperature (
Explanation
b8
b7
b6
b5
b4
b3
b2
b1
b0
b8
b7
b6
b5
b4
b3
b2
b1
b0
CH4
CH3
CH2
CH1
LED
contact has no connection, ERR LED flashes.
contact has no connection, ERR LED flashes.
contact has no connection, ERR LED flashes.
contact has no connection, ERR LED flashes.
).
The average temperature is calculated using
°C
). The average temperature is calculated using
°C
) of CH1~CH4 input signal.
°C
