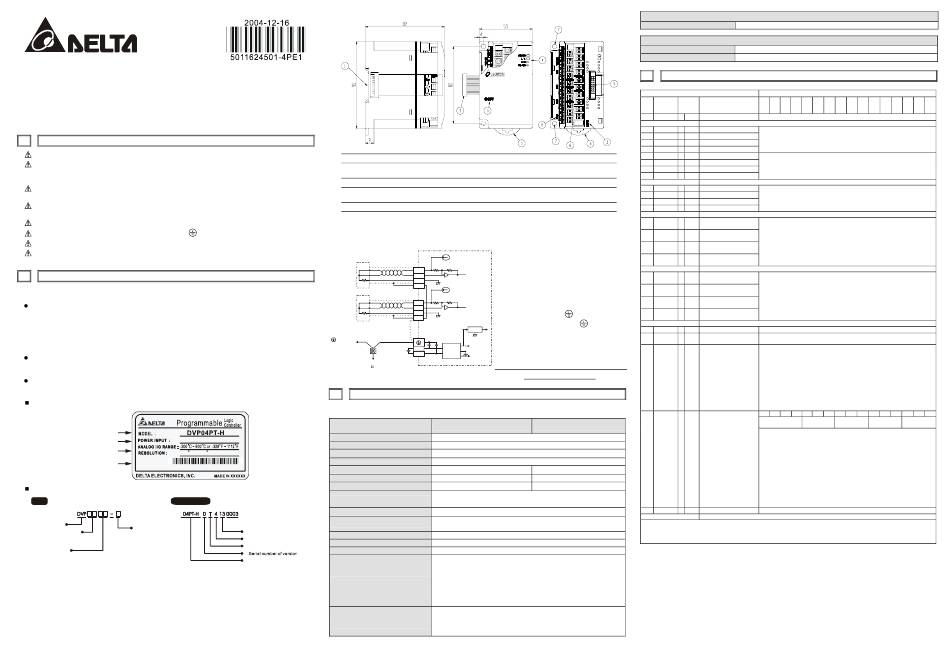

DVP04PT-H
DVP-EH
Platinum Temperature Sensors
Instruction Sheet
1 WARNING
Please carefully read this instruction thoroughly prior to use the DVP04PT-H.
In order to prevent electric shock, do not touch the terminals or conduct any maintenance while
power to the PLC is ON. Do NOT open the PLC. Only qualified personel or Delta staff is allowed
to conduct any internal electrical work on the PLC.
This is an OPEN-TYPE device, and was certified to meet the IEC 61131-2 (UL 508) safety
requirements when installed in an enclosure.
The DVP04PT-H must be kept under the environment away from high temperatures, high
humidity, exceessive vibration, corrosive gases, liquids, airborne dust, and metallic particles.
Do not apply AC power to any of the input/output terminals, or it may damage the DVP04PT-H.
Make sure that the DVP04PT-H is properly grounded , to prevent any electromagnetic noise.
Use wires with resistance when connect the platinum resistance thermister (RTD) to PLC.
Please keep the wires as short as possible when connecting the RTD to PLC, and keep power
wires as far away as possible from I/O wires to prevent noise interference.
2 INTRODUCTION
2.1 Model Explanation and Peripherals
Thank you for choosing DELTA DVP PLC Series. DVP04PT-H allows the connection of four
platinum temperature sensors (PT100 3-WIRE 100 Ω
C1604-1989)). The DVP-PLC EH MPU converts the sensors input into a 14 bit digital signal, and
then be manipulated by using TO and FROM instructions in the ladder logic program. There are
49 Controlled Registers (CR, each register has 16 bits) in each module.
Software version DVP04PT-H platinum temperature sensors can be updated via RS-485
communication.
DVP04PT-H displays both Centigrade and Fahrenheit. The input resolution for Centigrade is 0.1
degrees and for Fahrenheit is 0.18 degrees.
Nameplate Explanation
PLC model
20.4VDC ~ 28.8VDC
Input Power Supply Spec.
Analog Input / Output Module Spec.
0.1 C or 0.18 F
Barcode
VX.XX 04PT-H0T 4250003
Model Explanation
Model Serial Number
Product Series
Input+O utput point
S: for SS series MPU
P: for EP series MPU
H: for EH ser ies MPU
Model type
AD: Analog input module
XA: A/D , D/A Functions
DA: Analog output module RT: Resistor Thermocouple
PT: Platinum temperatur e sensors(PT-100)
HC: High speed count input module
TC: Thermocouple sensor s(Type J/K)
PU: single axis positioning unit
2.2 Product Profile and Outline
1. DIN rail track (35mm)
2. Mounting hole for wire to connect extension
unit/extension module
3. Model name
4. Indicator for power, error and run status
5. DIN rail clip
2.3 External wiring
PT100
Shielded*1
PT100
Shielded*1
3850 PPM/°C (DIN 43760 JIS
terminal of
power module
*3
System
Grounding
Class 3 Grounding
(100 of less)
3
3.1 Function Specifications
Platinum Temperature Module
(04PT)
Power supply voltage
Analog input channel
Sensors type
Current excitation
Temperature input range
Digital conversion range
Resolution
Overall accuracy
Response time
Isolation Method
Production week
Digital data format
Production year (2004)
Average function
Production place (Taoyuan)
Self diagnostic function
Production Model
Communication mode (RS-485)
Connection to a DVP-PLC MPU
in series
3.2 Other Specification
Unit: mm
6. Terminals
7. Mounting hole
8. Terminal layout
9. Mounting port to connect extension
unit/extension module
Note 1: Use only the wires that are packed
with the temperature sensor (PT 100)
1mA
for analog input and separate from
other power line or any wire that may
CH1
L+
cause noise. Please use 3wire for PT
L-
I-
100.
1mA
FG
AG
Note 2: Terminal FG is a ground location for
CH4
L+ noise suppression.
L-
I-
Note 3: Please connect power supply
FG
AG
module terminal and
*2 5V
platinum temperature sensors module
AG
terminal to system earth ground or
+15V
DC/ DC
24+
AG
24- connect it to machine cover.
Converter
-15V
Warning: DO NOT connect wires to the No
Connection (●) terminals.
STANDARD SPECIFICATIONS
Centigrade (°C) Fahrenheit (°F)
24 VDC (20.4VDC~28.8VDC) (–15%~+20%)
4 channels per module
3-WIRE PT100Ω 3850 PPM/°C(DIN 43760 JIS C1604-1989)
1mA
-200°C~600°C -328°F~1112°F
K-2000~K6000 K-3280~K11120
14 bits (0.1°C) 14 bits (0.18°F)
±0.5% of full scale of 25°C(77°F), ±1% of full scale during 0~55°C
(32~131°F)
200 ms × channels
Isolation between digital and analog circuitry. But no isolation
between channels.
2's complement of 16-bit, (13 Significant Bits)
Yes (CR#2~CR#5 may be set and the range is K1~K4096)
Upper bound and lower bound detection per channel
Yes, either ASCII or RTU modes, communication rate can be
4800 /9600 /19200 /38400 /57600 /115200. Communication
format of ASCII mode is 7Bit, even bit, 1 stop bit (7 E 1).
Communication format of RTU mode is 8Bit, even bit, 1 stop bit (8
E 1). When connecting to PLC MPU in series, RS-485 can't be
used. The RS-485 is disabled when the DVP04PT-H is connected
in series to an MPU (use the RS485 on MPU).
When DVP04PT-H modules are connected to an MPU, the
modules are numbered from 0 – 7. 0 is the closest and 7 is the
furthest to the MPU. 8 modules is the max and they do not occupy
any digital I/O points of the MPU.
Power Specification
Maximum Power Consumption 2W at 24 VDC (20.4VDC~28.8VDC) (-15 % ~ + 20%)
Environment Condition
Environment Condition Follow the DVP-PLC MPU.
Static Electricity Prevention All places between terminals and ground comply with the spec
4 CR (CONTROLLED REGISTER)
DVP04PT-H platinum temperature sensors
RS-485
CR
Parameter Latched Register name b15 b14 b13 b12 b11 b10 b9
No.
address
#0 H 4064 ○ R Model type System used, data length is 8bits (b7~b0). DVP04PT-H model code = H 0402
#1 Reserved
#2 H 4066 ○ R/W CH1 average number
The number piece of readings used for the calculation of "average" temperature
#3 H 4067 ○ R/W CH2 average number
on channels CH1~CH4.
#4 ○ R/W CH3 average number
H 4068
Setting range is K1~K4096 and factory setting is K10.
#5 H 4069 ○ R/W CH4 average number
#6 H 406A ╳ R CH1 average degrees(°C)
#7 R CH2 average degrees(°C)
H 406B ╳
Average degrees for channels CH1~CH4. (unit: 0.1 degrees C)
#8 H 406C ╳ R CH3 average degrees(°C)
#9 R
H 406D ╳ CH4 average degrees(°C)
#10~ #11 Reserved
#12 H 4070 R CH1 average degrees(°F)
╳
#13 H 4071 ╳ R CH2 average degrees(°F)
Average degrees for channels CH1~CH4. (unit: 0.1 degrees F)
#14 R CH3 average degrees(°F)
H 4072 ╳
#15 H 4073 ╳ R CH4 average degrees(°F)
#16~ #17 Reserved
R Present temperature of
╳
#18 H 4076
CH1 (°C)
R Present temperature of
╳
#19 H 4077
CH2 (°C)
Present temperature of channels CH1~CH4. (unit: 0.1 degrees C)
╳ R Present temperature of
#20 H 4078
CH3 (°C)
╳ R Present temperature of
#21 H 4079
CH4 (°C)
#22~ #23 Reserved
╳ R Present temperature of
#24 H 407C
CH1 (°F)
╳ R Present temperature of
#25 H 407D
CH2 (°F)
Present temperature of channels CH1~CH4. (unit: 0.1degrees F)
R Present temperature of
╳
#26 H 407E
CH3 (°F)
R Present temperature of
╳
#27 H 407F
CH4 (°F)
#28~ #29 Reserved
DVP04PT-H
#30 H 4082 R Error status Data register stores the error status. Refer to the fault code chart for details.
╳
○ R/W Communication address RS-485 communication address.
#31 H 4083
setting Setting range is 01~255 and factory setting is K1
#32 H 4084 ○ R/W Communication baud rate Communication baud rate (4800, 9600, 19200, 38400, 57600 and 115200 bps).
setting Communication format: ASCII mode is 7Bit, even bit, 1 stop bit (7 E 1).
Communication format of RTU mode is 8Bit, even bit, 1 stop bit (8 E 1).
b0: 4800 bps (bit/sec).
b1: 9600 bps (bit/sec). (factory setting)
b2: 19200 bps (bit/sec).
b3: 38400 bps (bit/sec).
b4: 57600 bps (bit/sec).
b5: 115200 bps (bit/sec).
b6~b13: Reserved.
b14: switch between low bit and high bit of CRC code (RTU mode only)
b15: RTU mode.
#33 H 4085 ○ R/W Reset to factory setting b15 b14 b13 b12 b11 b10 b9
Definition of ERR
Example: Setting of CH1
1. b0 Reserved
2. b1 Reserved
3. b2: Set to 1 and PLC will be reset to factory settings.
Definition of ERR LED: b12~b15=1111(factory settings)
1. b12 corresponds to CH1: when b12=1, scale exceeds the range or external
contact has no connection, ERR LED flashes.
2. b13 corresponds to CH2: when b13=1, scale exceeds the range or external
contact has no connection, ERR LED flashes.
3. b14 corresponds to CH3: when b14=1, scale exceeds the range or external
contact has no connection, ERR LED flashes.
4. b15 corresponds to CH4: when b15=1, scale exceeds the range or external
contact has no connection, ERR LED flashes.
#34 H 4086 R Software version Display software version in hexadecimal. Example: H 010A = version 1.0A.
○
#35~#48 System used
○ means latched.
╳ means not latched.
R means read data by using FROM instruction or RS-485.
W means write data by using TO instruction or RS-485.
Explanation:
1. CR#0: The PLC model type.
2. CR#1, CR#10, CR#11, CR#16, CR#17, CR#22, CR#23, CR#28, CR#29 are reserved.
3. CR#2 ~ CR#5: Used to set the number piece of input readings used for the average temperature
calculation. The available range is K1~K4096 and factory setting is K10.
4. CR#6 to CR#9: The average temperature (
pieces temperature readings. Example: If CR#2 is 10, the temperature in CR#6 will be the
average of the last 10 readings on CH1.
5. CR#12 to CR#15: The average temperature (
pieces temperature readings. Example: If CR#2 is 10, the temperature in CR#12 will be the
average of the last 10 readings on CH1.
6. CR#18 ~ CR#21: display the present temperature (
Explanation
b8 b7 b6 b5 b4 b3 b2 b1 b0
b8 b7 b6 b5 b4 b3 b2 b1 b0
CH4 CH3 CH2 CH1
LED
). Temperature is calculated by averaging multiple
°C
). Temperature is calculated by averaging multiple
°C
) of CH1~CH4 input signal.
°C
