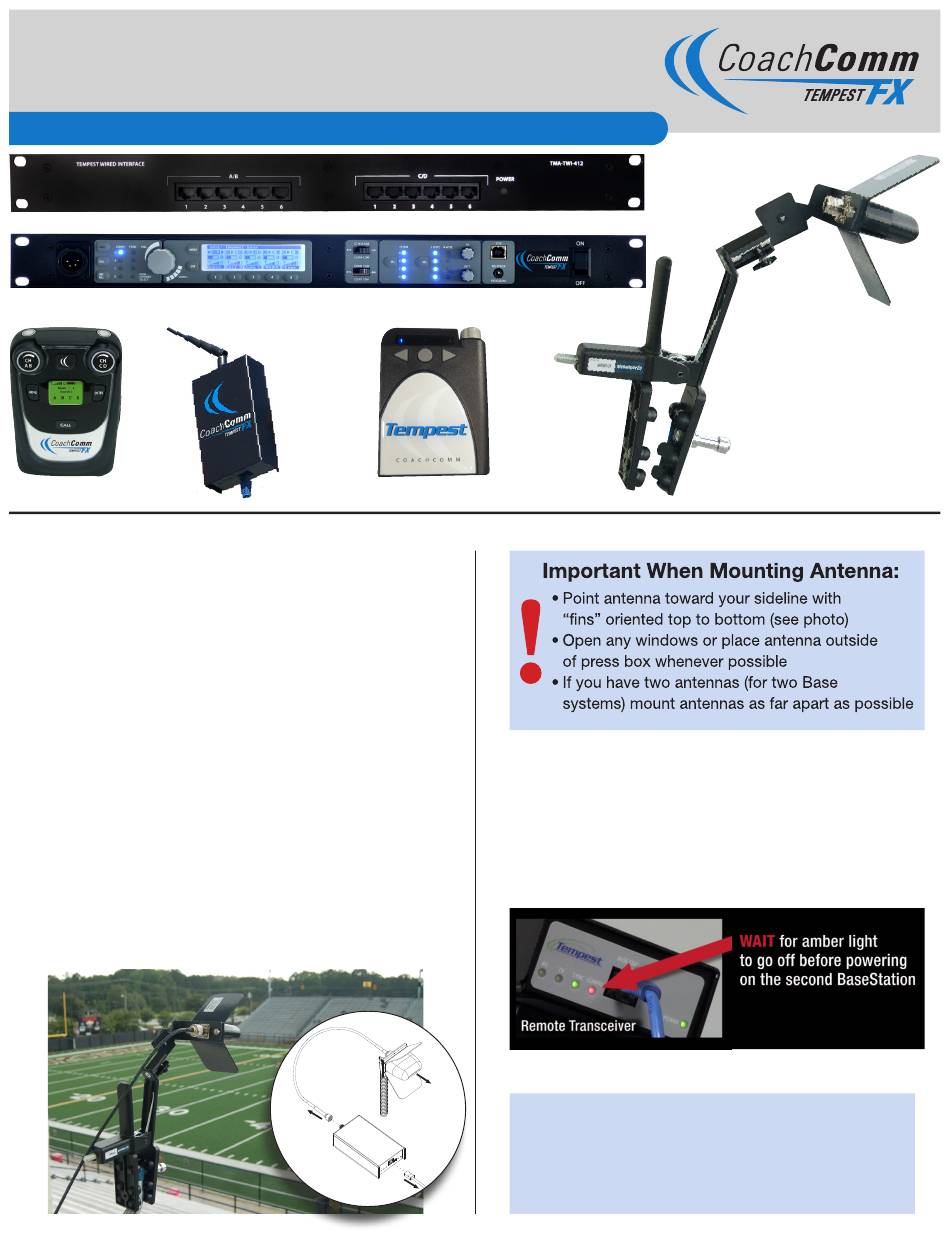

CoachComm Tempest FX Quick Start Manual

Wired Interface
Wireless BaseStation
Wireless BeltPack
1
Set Up Main Unit
• Unpack Main Unit, antennas, wired beltpacks,
accessories
• Position Main Unit out of the way to avoid foot traffic
• Plug main unit in but DO NOT Turn ON power to
BaseStation(s)
2
Mount Antenna System(s)
• Mount Remote Antenna using provided mounting
options. IMPORTANT: Ensure line-of-sight is achieved
from the antenna to the field!
• Mount Remote Transceiver with or near Remote
Antenna
• Connect Remote Antenna to Remote Transceiver using
black coaxial antenna cable
• Connect Remote Transceiver to BaseStation
using (blue Cat-5) transceiver cable (one Remote
Transceiver/Antenna per BaseStation)
Q u i c k S t a r t G u i d e
Remote Transceiver Wired BeltPack
Point to
Field
To
Antenna
Remote
Transceiver
To Base
Station
• While observing bottom LEDs of Remote Transceiver,
turn ON BaseStation and confirm Config LED
(amber light) turns on and off. Note: If you have a
two BaseStation system, turn on and configure one
BaseStation at a time
• Repeat step 2 for additional Antenna System (if
applicable)
Visit our website to view Set-up and
mounting antenna instructional videos.
http://www.coachcomm.com/communication/
headsets/tempest-fx
®
Remote Antenna
®
