CoachComm X-System Game Day Manual

Getting Started
This Game Day Guide is a basic reference for setting up your X-System. For complete operation instructions, see the
X-System Operating Manual, which is available on CoachComm's website at: www.coachcomm.com/x-system-support.
CAUTION: Allow only responsible, authorized individuals who have read all of the instructions and warnings to set up and
operate your X-System.
Provided Tools:
• 1/2" socket wrench
• Drill bit adapter (1/4" hex to 1/2" square) for
use with any 1/4" drill or cordless screwdriver

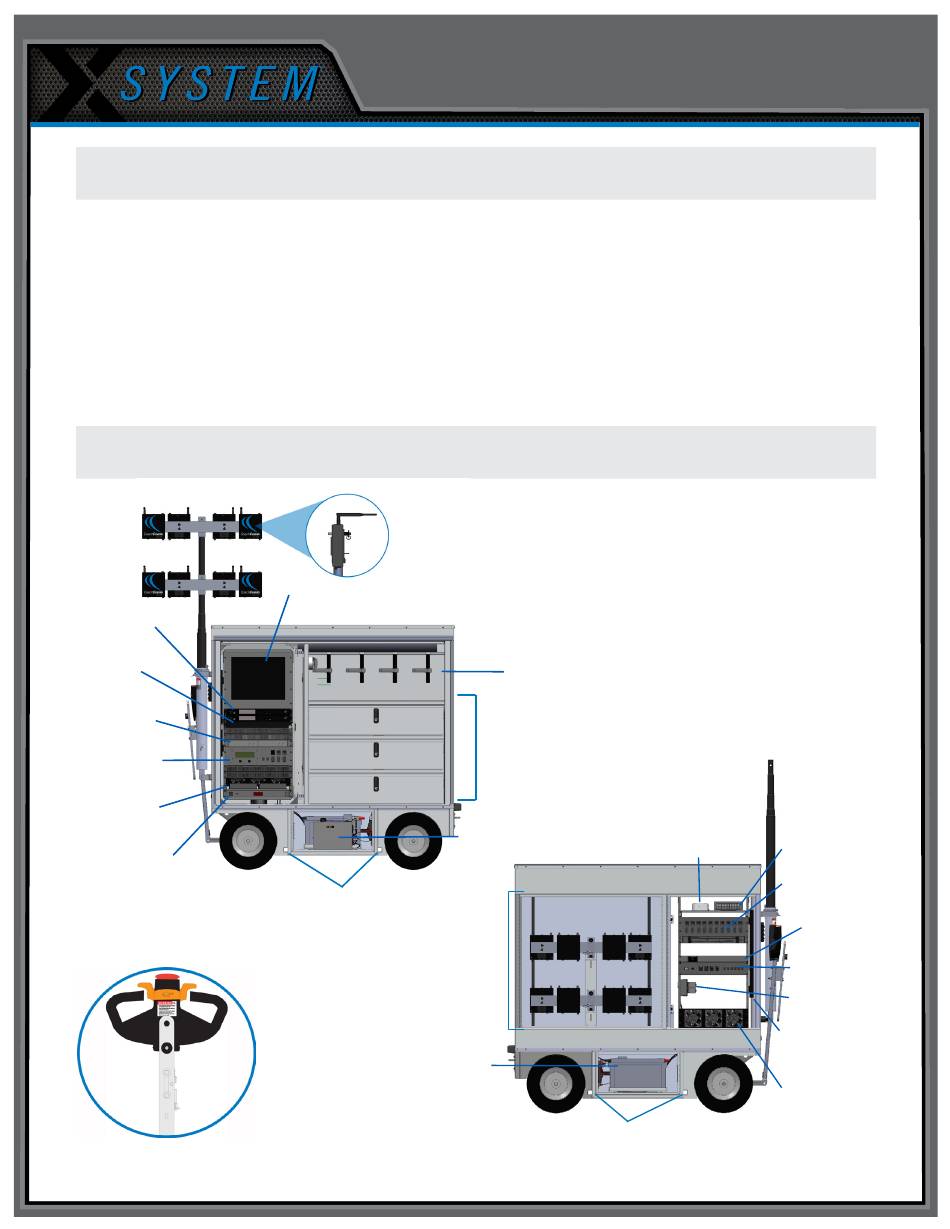

Sideline Cart Overview
X-System Control
Unit(s)
Pull-Out PC
Keyboard
PS-4001
AudioCom
©
Power Supply(s)
Wired Interface
Module (WIM)
5-Bay Battery
Chargers
AC Power
Distribution Unit
Drive System Handle
Game Day Guide
19" Touchscreen Monitor
Stabilizing Slots
Front
Note: Information for
operating the Sideline Cart's
drive system can be found
Power Bay
in the separate Drive System
Quick Start Guide included
with your cart.
Additional Tools You May Need:
• 1/4" drill or cordless screwdriver
Required Power Connection:
• Minimum of one dedicated 15 amp 120V circuit
Work Space
Drawers
Power Bay
Access
RT Storage
Access
Stabilizing Slots
PC
Inverter ComBox
Wired Assignment
Module (WAM)
Rear Patch Panel
Inverter Outlet
AC "Rack" Power
Distribution Unit
Fans
Rear
Drive System
Switch
