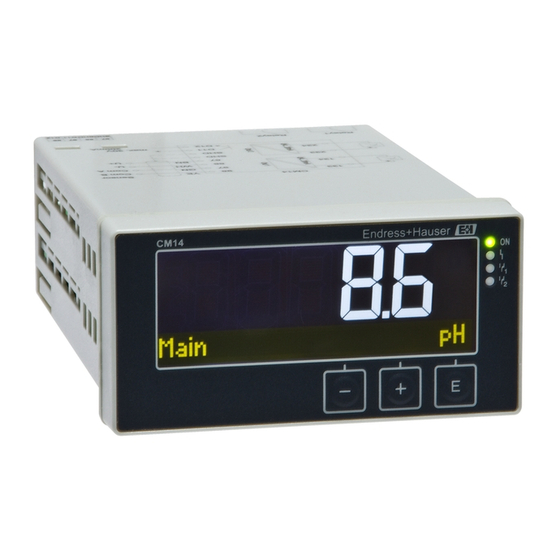

Endress+Hauser CM14 Operating Instructions Manual
Ph and orp
Hide thumbs
Also See for CM14:
- Operating instructions manual (48 pages) ,
- Manual (44 pages) ,
- Operating instructions manual (44 pages)
Related Manuals for Endress+Hauser CM14
Summary of Contents for Endress+Hauser CM14

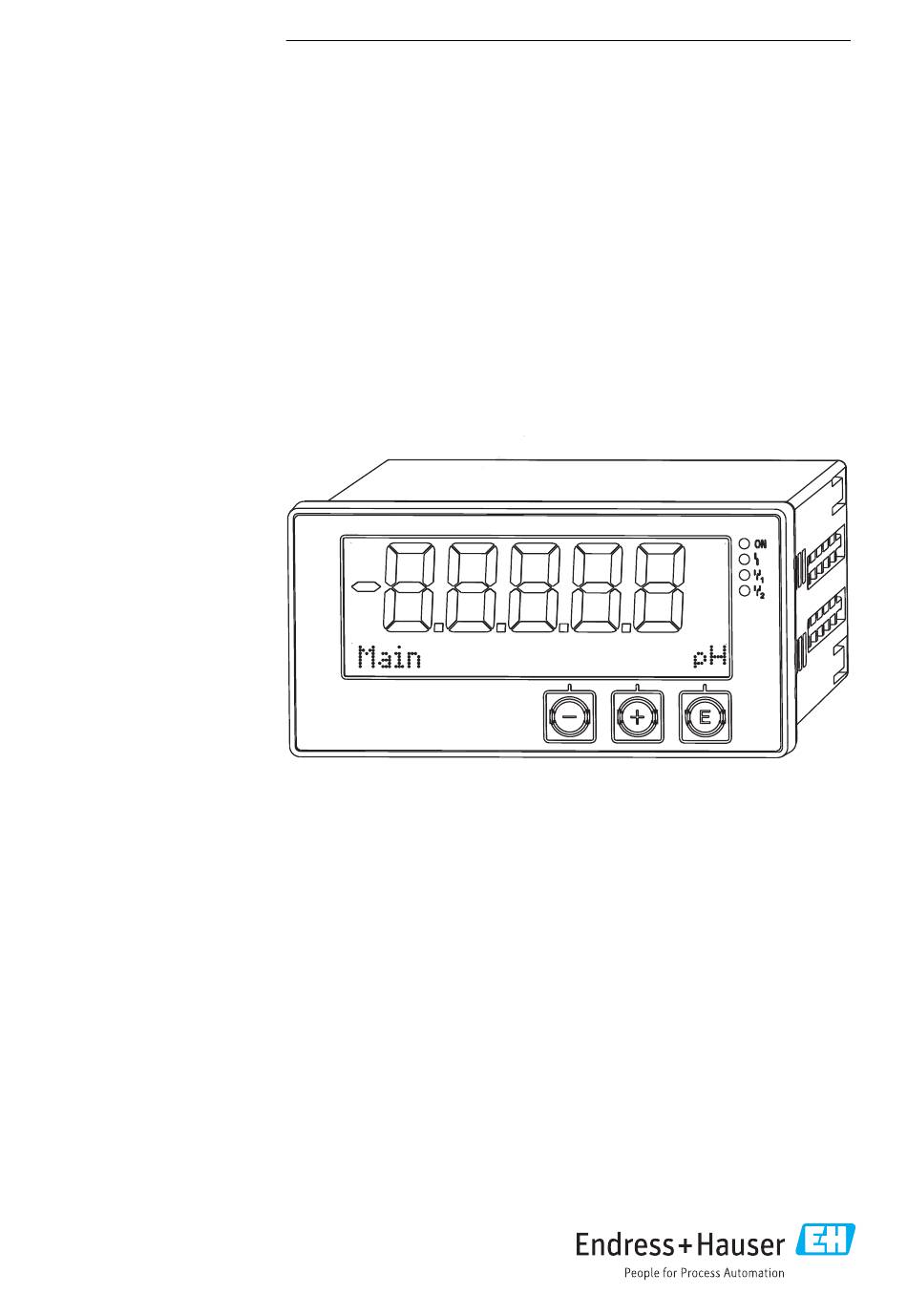

- Page 1 Products Solutions Services BA01032C/09/EN/03.19 71462789 2019-11-30 Valid from version: 02.01 (device version) Operating Instructions CM14 Transmitter, pH and ORP...
-
Page 3: Table Of Contents
CM14 Table of contents Table of contents Safety instructions ....4 Calibration and adjustment . . 23 Workplace safety ....4 Definitions . -
Page 4: Safety Instructions
Conversions to the device Unauthorized modifications to the device are not permitted and can lead to unforeseeable dangers. ‣ If, despite this, modifications are required, consult with Endress+Hauser. Repair To ensure continued operational safety and reliability, ‣ Carry out repairs on the device only if they are expressly permitted. -
Page 5: Designated Use
CM14 Safety instructions Designated use The transmitter evaluates measured values of an analytical sensor and visualizes them on its multicolored display. Processes can be monitored and controlled with the unit' s outputs and limit relays. The device is equipped with a wide array of software functions for this purpose. - Page 6 Safety instructions CM14 NOTICE Causes (/consequences) Consequences of non-compliance (if applicable) ‣ Corrective action ‣ This symbol alerts you to situations which may result in damage to property. 1.7.2 Document symbols Allowed Indicates procedures, processes or actions that are allowed.
-
Page 7: Identification
CM14 Identification Identification Device name 2.1.1 Nameplate Compare the nameplate with the following diagram: Liquiline -10°C (14°F) < Ta < 60°C (140°F) â 1 A0015221 1 Nameplate of the transmitter (example) Device name Device order code, serial number and ID number... -
Page 8: Certificates And Approvals
Identification CM14 Certificates and approvals 2.3.1 CE mark The product meets the requirements of the harmonized European standards. As such, it complies with the legal specifications of the EC directives. The manufacturer confirms successful testing of the product by affixing to it the CE-mark. -
Page 9: Installation
CM14 Installation Installation Incoming acceptance, transport, storage The permitted ambient and storage conditions must be observed. The precise specifications can be found in Section "Technical data" → 34. 3.1.1 Incoming acceptance On receipt of the goods, check the following points: •... -
Page 10: Installation Procedure
Installation CM14 Installation procedure The required panel cutout is 92 mm x 45 mm (3.62 in x 1.77 in). A0015216 2 Installation in the panel Screw the threaded rods (item 2) into the positions provided on the mounting frame (item 1). -
Page 11: Wiring
CM14 Wiring Wiring WARNING Danger from electrical voltage ‣ The entire connection of the electrical system must take place while the device is de- energized. Danger if protective ground is interrupted ‣ The protective ground connection must be established before any other connection is made. -
Page 12: Connecting The Transmitter
Wiring CM14 Connecting the transmitter A0015215 3 Connection diagram of the transmitter Terminal Description Terminal for Memosens cable, brown, sensor power supply U+ Terminal for Memosens cable, white, sensor power supply U- Terminal for Memosens cable, green, Com A... -
Page 13: Post-Connection Check
CM14 Wiring Post-connection check Device condition and specifications Notes Are the device or cables damaged? Visual inspection Electrical connection Notes Does the supply voltage match the specifications on the nameplate? 24 to 230 V AC/DC (–20 % / +10 %) 50/60 Hz... -
Page 14: Operation
Operation CM14 Operation The device' s simple operating concept enables you to perform commissioning for many applications without the need for hardcopy operating instructions. Display and device status indicator / LED A0015891 4 Device display Dot matrix section 7-segment display... -
Page 15: Icons
CM14 Operation • Open the Configuration menu • Confirm an entry • Select a parameter or submenu offered in the menu Within the Configuration menu: • Gradually scroll through the parameters / menu items / characters offered • Change the value of the selected parameter (increase or decrease) -
Page 16: Operating Functions
Operation CM14 Reject entry. If this symbol is selected, the entry is rejected and you quit editing mode. The previously set text remains. Jump one position to the left. If this symbol is selected, the cursor jumps one position to the left. -
Page 17: Commissioning
CM14 Commissioning Commissioning Post-installation check and switching on the device Make sure that all post-connection checks have been carried out before you commission your device: • Checklist for "post-installation check", → 10. • Checklist for "post-connection check", → 13. -
Page 18: Configuration Of The Device
Commissioning CM14 Press E to open the Extended Setup menu; System is displayed. Press E to open the System menu. Press + repeatedly until Access code is displayed. Press E to open the setting for access protection. Set the code: press the + and - buttons to set the desired code. The access code is a four- digit number. -
Page 19: Extended Configuration
CM14 Commissioning Parameters Possible settings Description Out 1 20 mA Numerical value Physical value which corresponds to the upper 0.000 to 99 999 range limit of the analog output. 12 pH When the configured value is exceeded, the current output is set to the saturation current of 20.5 mA. - Page 20 Commissioning CM14 Parameters Possible settings Description Access code 0000 to 9999 User code to protect the device configuration. Default: 0000 Additional information: 0000 = user code protection is disabled Calib Code 0000 to 9999 User code to protect the calibration function.
- Page 21 CM14 Commissioning Parameters Possible settings Description Process check Checks the process settings Function On, Off Switch on the process check. Inactive time 1 to 240 min Duration of the process check 60 min Analog outputs Settings for analog outputs Current range...
-
Page 22: Device Diagnostics
Commissioning CM14 6.5.1 Configuration of the relays The device has two relays with limit values that are either switched off or can be allocated to the input signal. The limit value is entered as a numerical value including the decimal position. -
Page 23: Calibration And Adjustment
CM14 Calibration and adjustment Calibration and adjustment Definitions 7.1.1 Calibration (as per DIN 1319): Determining the relationship between the measured or expected value of the output variable and the corresponding true or correct value of the measured variable (input variable) for a measuring device under specified conditions. - Page 24 Calibrating with buffers with pH 7.0 and 4.0 is recommended for most applications. You use calibration buffers to perform two-point calibration. The quality buffers supplied by Endress+Hauser are certified and measured in an accredited laboratory. The accreditation (DAR registration number "DKD-K-52701") confirms that the actual values and the maximum deviations are correct and traceable.
-
Page 25: Orp Sensors
CM14 Calibration and adjustment The calibration is not completed successfully or is canceled and is not valid. Possible reasons: • The sensor is old or contaminated. As a result, the permitted limit values for the slope and/or zero point are exceeded. -
Page 26: Device Functions For Calibration
Maintenance CM14 Press "E" and select "yes" to confirm. 10. Remove the sensor from the measurement medium, flush with distilled water, dry it and place it back into the measurement medium. To calibrate the ORP sensors, you can also remove them from the medium and calibrate them in the laboratory. -
Page 27: Accessories
CM14 Accessories Accessories Sensors Glass electrodes for pH measurement Orbisint CPS11D • pH electrode for process engineering, with dirt-repellent PTFE junction • Memosens technology • Order as per product structure, see Technical Information (TI00028C/07/en) Orbipore CPS91D • pH sensor with Memosens technology •... -
Page 28: Troubleshooting
Troubleshooting CM14 Troubleshooting To help you troubleshoot, the following section is designed to provide an overview of possible causes of errors and initial remedial measures. 10.1 Troubleshooting instructions WARNING Danger! Electric voltage! ‣ Do not operate the device in an open condition for error diagnosis! - Page 29 CM14 Troubleshooting Examples of how messages are displayed: F 61 sensor elec. A0015896 M 915 USP warning A0015897 S 844 Process value A0015898 C 107 Calib. active A0015899 Diagnostic Message text Description code Sensor data invalid. Remedy: Sensor data • Update the transmitter data •...
- Page 30 Troubleshooting CM14 Diagnostic Message text Description code Sensor not communicating. Possible reasons: • No sensor connection • Incorrect sensor connection • Short-circuit in sensor cable • Short-circuit in adjacent channel F100 Sensor comm. • Sensor firmware update interrupted incorrectly Remedy: •...
- Page 31 CM14 Troubleshooting Diagnostic Message text Description code Incorrect parameter checksum Possible cause: F846 Param error Firmware update Remedy: Reset parameter to factory defaults F847 Couldn' t save param The parameters could not be saved F848 Calib AO1 Incorrect calibration values for analog output 1...
-
Page 32: Firmware History
Troubleshooting CM14 Diagnostic Message text Description code Measured value outside the specified range. Measured value outside the specified range Possible reasons: • Sensor in air • Air pockets in the assembly S844 Process value • Incorrect flow to sensor • Sensor defective Remedy: •... -
Page 33: Spare Parts
A0015745 5 Spare parts of the device Item no. Description Order no. Housing front + foil, incl. keyboard CM14, without display XPM0004-DA CPU/Display board CM14 pH, ORP (glass) XPM0004-CM Mainboard 24-230VDC/AC, CM14 XPM0004-NA Relay board + 2 limit relays... -
Page 34: Return
Technical data CM14 10.5 Return For a return, e.g. in case of repair, the device must be sent in protective packaging. The original packaging offers the best protection. Repairs must only be carried out by your supplier' s service organization. -
Page 35: Current Outputs, Active
CM14 Technical data 11.2.4 Alarm output The alarm output is designed as an "open collector." In normal operation the alarm output is closed. In the event of a fault (F-fault, device without current) the "open collector" opens. Current max. 200 mA Voltage max. -
Page 36: Wiring
Technical data CM14 11.5 Wiring 11.5.1 Electrical connection Sensor Com B Com A max 30 V 200 mA A0015303 Connection Description Terminal for Memosens cable, brown, sensor power supply U+ Terminal for Memosens cable, white, sensor power supply U- Terminal for Memosens cable, green, Com A... -
Page 37: Performance Characteristics
CM14 Technical data Connection Description Terminal for analog output 1, - Terminal for analog output 2, + Terminal for analog output 2, - R11, R12, R13 Terminal for relay 1 R21, R22, R23 Terminal for relay 2 11.5.2 Supply voltage... -
Page 38: Environment
Technical data CM14 Installation position The orientation is determined by the legibility of the display. Max. viewing angle range of +/- 45° from the central display axis in every direction. 92 (3.62) A0010351 6 Panel cutout, dimensions in mm (in) 11.8... -
Page 39: Mechanical Construction
CM14 Technical data 11.9 Mechanical construction 11.9.1 Dimensions 118.6 (4.67) 16.7 96 (3.78) (0.66) 151.8 (5.98) A0015925 7 Dimensions of the transmitter in mm (in) 11.9.2 Weight 0.3 kg (0.66 lbs) 11.9.3 Materials Housing, casing: Polycarbonate Front foil: Polyester, UV-resistant 11.9.4... -
Page 40: 11.10 Display And Operating Elements
Technical data CM14 11.10 Display and operating elements 11.10.1 Operating elements A0018699 8 Display and operating elements LC display for displaying the measured values and configuration data Status LED, power supply connected Status LED, alarm function Status LED for limit switch relay 1... -
Page 41: Index
CM14 Index Index Calibration ORP sensors ....25 pH sensors ....23 CE mark . - Page 44 www.addresses.endress.com...
