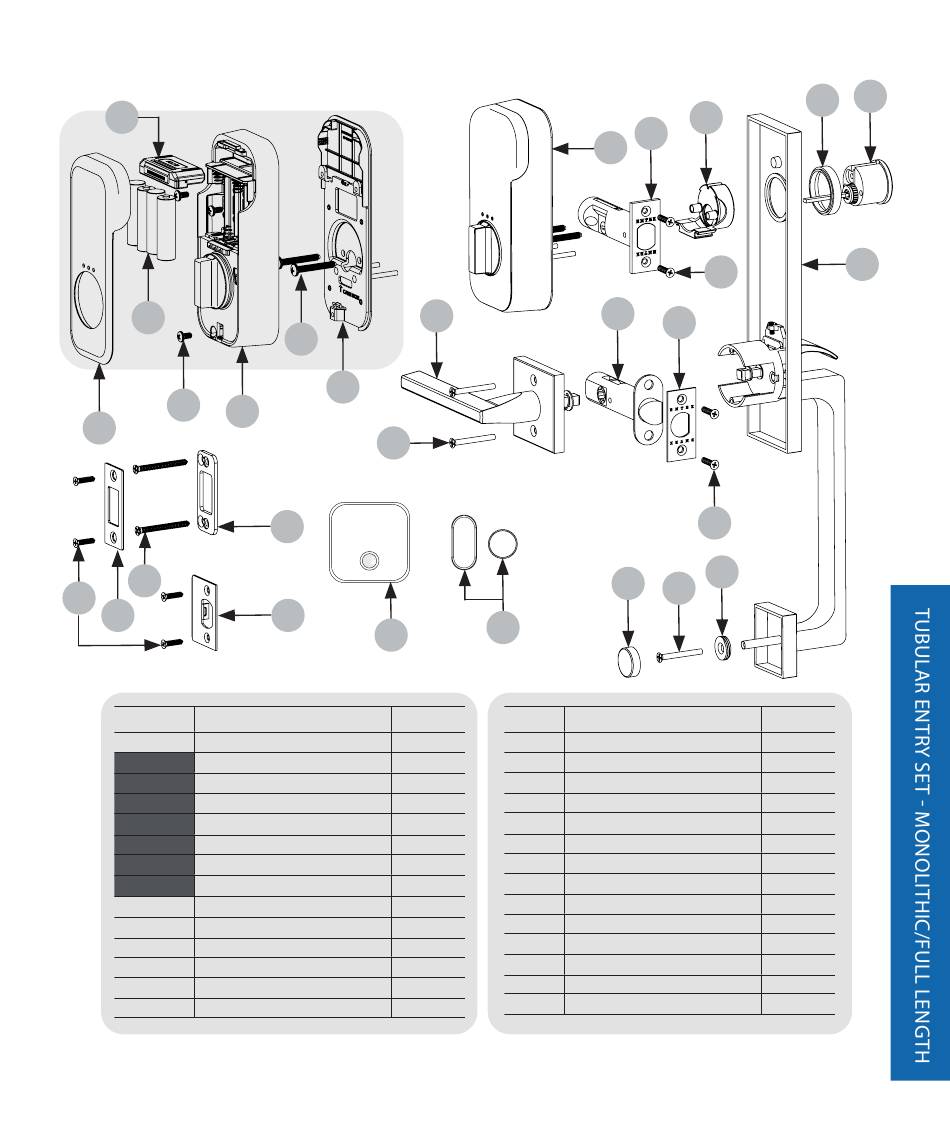

What's in the box
1a
1c
1d
1e
1b
18
14
16
ITEM NO.
1
EMPowered™ Unit
1a
August Module
1b
Battery Cover
1c
AA Batteries
1d
M4-0.7 x 8mm Machine Screws
1e
Interior Escutcheon
1f
#10-32 x 2-1/8" Machine Screws
1g
Mounting Plate
2
Interior Knob/Lever Assembly
3
#8-32 x 1-1/2" Machine Screws
4
Deadbolt Latch 2-3/4" Backset
4
Deadbolt Latch 2-3/8" Backset
5
Deadbolt Screw Guide
6
Entry Set Exterior Assembly
2
1f
1g
3
17
15
19
DESCRIPTION QTY.
1
1
1
4
3
1
2
1
1
2
1
1
1
1
43
4
1
9
10
11
12
20
ITEM NO. DESCRIPTION
7
Deadbolt Extension Collar
8
Deadbolt Cylinder
9
Passage Latch
10
Latch Face Plate
11
Decorative Cap
12
#8-32 Flat Head Machine Screw
13
Threaded Washer
14
#8 x 3/4" Wood Screws
15
Latch Strike Plate
16
Deadbolt Strike Plate
17
Deadbolt Security Plate
18
#10 x 3" Wood Screws
19
August Connect
20
August DoorSense
TM
8
7
5
6
14
14
13
QTY.
1
1
1
1
1
1
1
8
1
1
1
2
1
1
