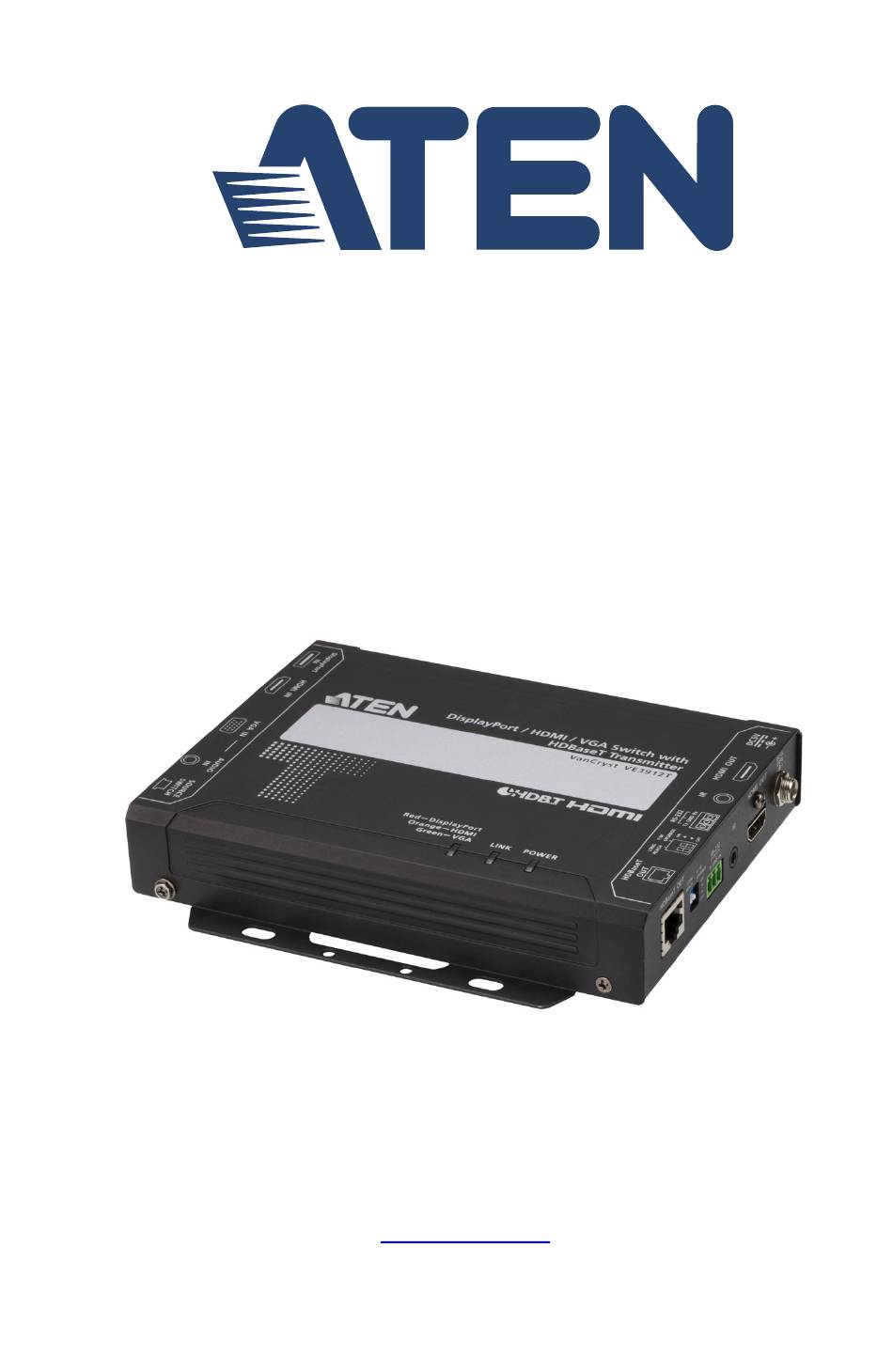

- Page 1 DisplayPort / HDMI / VGA Switch with HDBaseT Transmitter VE3912T User Manual www.aten.com...
-
Page 2: Emc Information
VE3912T User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
VE3912T User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
VE3912T User Manual Package Contents 1 VE3912T DisplayPort / HDMI / VGA Switch with HDBaseT Transmitter 1 RS-232 Terminal Block 1 Power Adapter 4 Foot Pads 1 User Instructions Note: 1. Check to make sure that all the components are present and that nothing got damaged in shipping. -
Page 5: Table Of Contents
Mounting the VE3912T Unit ........ - Page 6 VE3912T User Manual Technical Support ......... . 20 International .
-
Page 7: About This Manual
VE3912T User Manual About this Manual This user manual is provided to help you get the most from the VE3912T unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below. -
Page 8: Conventions
VE3912T User Manual Conventions This manual uses the following conventions: Indicates text that you should key in. Monospaced Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt]. -
Page 9: Product Information
VE3912T User Manual Product Information For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... - Page 10 VE3912T User Manual This Page Intentionally Left Blank...
-
Page 11: Introduction
Overview The ATEN VE3912T is an HDBaseT transmitter that extends 4K DisplayPort, HDMI, or VGA video signals up to 100m over a single Cat 6/6a or ATEN 2L- 2910 Cat 6 cable. Featuring multiple video input formats and output resolutions up to 4K, it ensures a superior video quality for applications that require digital/ analog sources conversion and extension. -
Page 12: Features
HDMI/DisplayPort: 4K at distance up to 100 m via a Cat 6a or ATEN 2L- 2910 Cat 6 cable VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable ... -
Page 13: Planning The Installation
(up to 1080p in Long Reach Mode) A compatible ATEN Video HDMI Extender to the display Compatible ATEN Video Extenders The VE3912T is designed to work with a wide range of ATEN HDBaseT video extenders. Visit our official web site for more details. -
Page 14: Components
VGA input mode. The input mode status is indicated by the four LEDs to the right of this pushbutton. For details, see VE3912T Top View, page 6. To switch between Bypass Mode and Command mode, see RS-232 Serial Transmission, page 13. -
Page 15: Ve3912T Rear View
VE3912T Rear View 2 3 4 Component Description HDBaseT Connects to the HDBaseT Output port on a compatible ATEN Output Port video receiver via an RJ-45 cable. HDBaseT Long Put the switch to ON to enable the Long Reach Mode. For... -
Page 16: Ve3912T Top View
Chapter 1. Introduction VE3912T Top View You can find the unit’s LEDs on the top and front panel as illustrated below. See the table below for details on LED indication. 1 2 3 No. LED Indication Description DisplayPort / Lights red The DisplayPort signal is stable. -
Page 17: Hardware Setup
Hardware Setup 1. Please review the safety information regarding the placement of this device in Safety Instructions, page 17. 2. Do not power on the VE3912T until all the necessary hardware is connected. Mounting the VE3912T Unit You can mount the VE3912T to the wall or on a rack. -
Page 18: Connecting The Ve3912T Unit
Chapter 2. Hardware Setup Connecting the VE3912T Unit Follow the steps below to connect the VE3912T to a source, a compatible ATEN Video Extender, and other controls as required. Control Pad ATEN Contol Box HMI Display Example: VE2812R Power Adapter HDMI, DisplayPort, or VGA Source 1. - Page 19 5. (Optional) To receive IR signals to remotely control a device (e.g. blu-ray disc) connected to the video receiver, connect an IR emitter to the VE3912T’s IR Port and an IR receiver to the VE2812R’s IR Port or vice versa.
-
Page 20: Rs-232 Channel Transmission
You can set the VE3912T to either bypass serial data or to receive RS-232 commands. By default, the VE3912T is set to receive serial data. To set the unit to bypass RS-232 commands, press the Input Switch pushbutton for 3 seconds. -
Page 21: Operation
The VE3912T only transmits DisplayPort source to the connected receiver. (LED lights orange) HDMI The VE3912T only transmits HDMI source to the connected receiver. (LED lights orange) The VE3912T only transmits VGA source and its audio input to the connected receiver. (LED lights orange) -
Page 22: Source Switch Pushbutton
Chapter 3. Operation Source Switch Pushbutton Press the Source Switch Pushbutton located on the front panel to switch among the Auto Switch, DisplayPort, HDMI, and VGA input mode. VE3912T Front Panel Auto LED DisplayPort LED HDMI LED VGA LED Source Switch Pushbutton... -
Page 23: Rs-232 Serial Transmission
VGA LED light orange and blink once every 0.3 seconds for three seconds. Note: 1. By default, the VE3912T is set to Command mode. 2. The RS-232 status is kept even VE3912T is powered on and off. For detailed LEDs behavior, see VE3912T Top View, page 6. Bypass RE-232 serial data is bypassed from the controller PC or Pad to other connected devices. - Page 24 Chapter 3. Operation Type the corresponding command to execute a task. For example, to enable automatic input switching, type swmode plugin auto and then press [Enter]. Command Task Control Input Port Enables automatic input switching swmode plugin auto Disables automatic input switching swmode plugin off Enables automatic plug-out switching swmode plugout prev...
-
Page 25: Long Reach Mode
HDBaseT Long Reach Mode Switch to ON at either the transmitter or the connected receiver. VE3912T Front Panel Source Switch Pushbutton Note: When Long Reach Mode is enabled, the VE3912T will not be able to transmit 4K signals, in which case, the output display will be blank. - Page 26 Chapter 3. Operation This Page Intentionally Left Blank...
-
Page 27: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 28 Appendix If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 29: Rack Mounting
VE3912T User Manual Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 30: Technical Support
Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase Your computer configuration, including operating system, revision level, expansion cards, and software ... -
Page 31: Specifications
HDBaseT Output: 4Kx2K @ 60Hz (4:2:0) / 4Kx2K @ 60Hz (4:4:4) Max. Resolutions / HDMI/DisplayPort: Distances Up to 4k @70m (Cat 5e/6) / 100m (Cat 6a/ATEN.2L- 2910 Cat6) Up to 1080p @100m (Cat 5e/6/6a) VGA: Up to 1920 x 1200 & 1600 x 1200 @70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat 6) ... - Page 32 Appendix Function VE3912T Connectors Unit To Unit 1 x RJ-45 Female Power 1 x DC Jack (Black) with locking or, 1 x RJ-45 Female (PoE) Control RS-232 Connector 1 x Terminal Block, 3 Pole; Type: DTE Baud Rate 115200 Data Bits...
-
Page 33: Supported Vga Resolutions
VE3912T User Manual Supported VGA Resolutions The VE3912Tsupports the following VGA resolutions: VGA Resolution Frame Rate (Hz) 640 x 480 640 x 480 800 x 600 800 x 600 1024 x 768 1024 x 768 1152 x 864 1152 x 864... -
Page 34: Limited Warranty
ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
