ATEN VanCryst™
VS261 / VS461
DVI Video Switch
User Manual
© Copyright 2021 ATEN
®
International Co. Ltd.
ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All
rights reserved. All other trademarks are the property of their respective owners.
Part No. PAPE-1256-301G
Released: 07/2021
Advertisement
Table of Contents
Related Manuals for ATEN VanCryst VS261
Summary of Contents for ATEN VanCryst VS261
- Page 1 User Manual © Copyright 2021 ATEN ® International Co. Ltd. ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners. Part No. PAPE-1256-301G Released: 07/2021...
-
Page 2: Compliance Statements
Compliance Statements FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 3 Telephone Support International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 1-949-428-1111 Technical Support For international online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For North American technical support: Email Support support@aten-usa.com...
-
Page 4: Package Contents

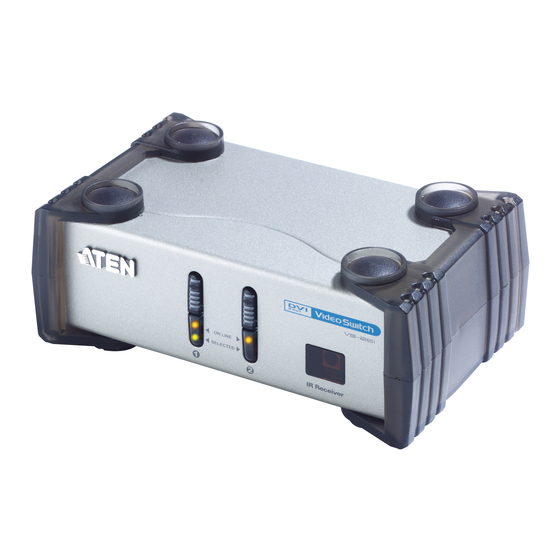

Package Contents The DVI Video Switch package contains the following items: 1 VS-261 or VS-461 DVI Video Switch 1 IR remote control handset 1 power adapter 1 user instructions Check to make sure that all the components are present and that nothing got damaged in shipping. - Page 5 Overview The 2 port VS261 and 4 port VS461 chart a revolutionary new direction in multimedia functionality by combining a Digital Visual Interface (DVI) Video Switch with stereo quality audio. It is not necessary to have a separate display and set of speakers for each source.
-
Page 6: System Requirements
System Requirements Consoles A DVI display capable of the highest resolution that you will be using on any DVI output Stereo speakers for audio output Computers The following equipment must be installed on each computer that is to be connected to the system: ... - Page 7 Operating Systems Supported operating systems are shown in the table, below: Version Windows 2000 or above Linux RedHat 6.0 or later SuSE 8.2 or later Mandriva 9.0 or later (Mandrake) UNIX 4.3 or later FreeBSD 3.51 or later Solaris 8 or later Novell Netware 5.0 or later...
-
Page 8: Front View
Front View No. Component Description port Press a pushbutton to display video selection (playback audio) from the device attached to pushbuttons the corresponding port. port LEDs The port LEDs are built into the Port Selection Switches. - The ON LINE LED lights to indicate that the device attached to the corresponding port is on. -
Page 9: Rear View
Rear View Compo- Description nent power The power adapter cable plugs in here. jack video / The output section is comprised of a DVI-I audio connector and two RCA audio jacks. The output cables that connect to the video and audio input ports on the Video Display plug in here. -
Page 10: Ir Remote Control Unit
IR Remote Control Unit Compo- Description nent port up / Press these buttons to cycle among the source devices. port down port Press a port selection pushbutton to switch the source device installed at the selection corresponding port. pushbuttons - 10 -... -
Page 11: Installation
Installation 1. Make sure that the power to any device that you connect to the installation has been turned off. You must unplug the power cords of any computers that have the Keyboard Power On function. 2. Make sure that all devices you will be installing are properly grounded Refer to the installation diagram (the numbers in the diagrams correspond to the numbers of the steps) and do the following:... - Page 12 Video Port Switching There are two convenient methods for switching among video sources: Manual and the Remote Control. Manual Selection To select a source device, press and release the front panel pushbutton that corresponds to the port that the device is connected to.
-
Page 13: Hot Plugging
To switch directly to a source device, press the numerical button (1, 2, 3, or 4) that corresponds to the port that the device is connected to. Note: 1. Pressing button 3 or 4 has no effect on the VS-261. 2. -
Page 14: Specifications
Specifications Function VS261 VS461 Video Input Interfaces 2 x DVI-I Female 4 x DVI-I Female (White) (White) Impedance 100 Ω Max. 1.8 m Distance Video Interfaces 1 x DVI-I Female (White) Output Impedance 100 Ω Max. Distance Video Max. Data 6.75 Gbps (2.25 Gbps Per Lane) Rate Max. -
Page 15: Troubleshooting
Function VS261 VS461 Environment Operating 0–50ºC Temp. Storage -20–60ºC Temp. Humidity 0–80% RH, Non-condensing Physical Housing Metal Properties Weight 0.50kg (1.1 lb) 0.75kg (1.65 lb) Dimensions 14.00 x 8.80 x 21.00 x 8.80 x (L x W x H) 5.55 cm 5.50 cm (5.51 x 3.46 x (8.27 x 3.46 x... -
Page 16: Limited Warranty
What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or...
