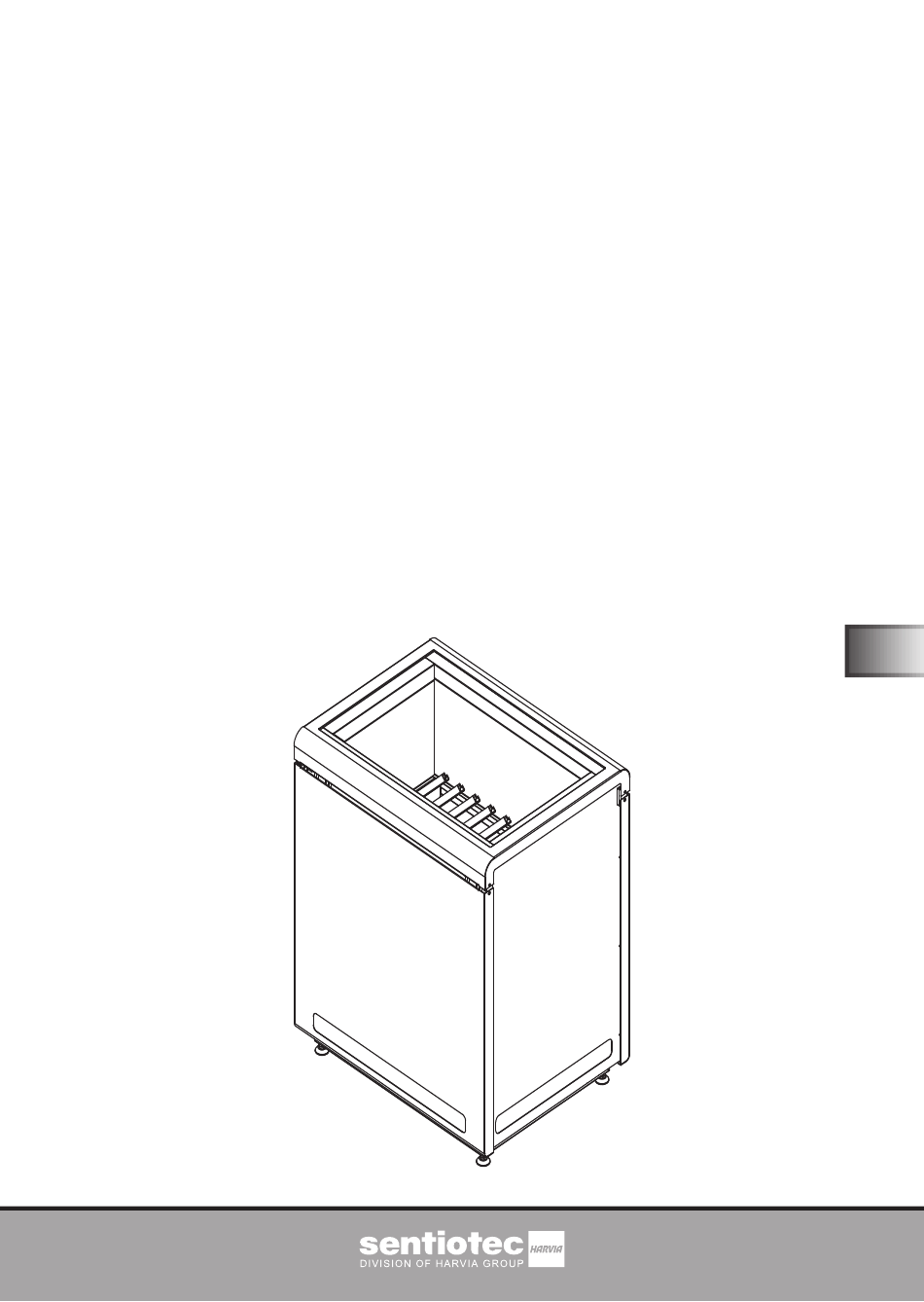

Sentiotec Concept R Instructions For Installation And Use Manual

Sauna heater, 9.0/10.5/12.0/15.0 kw black

Advertisement

Quick Links

Sauna heater
Concept R black
CP-RB-090 / 1-027-768: Concept R 9.0 kW black
CP-RB-105 / 1-027-769: Concept R 10.5 kW black
CP-RB-120 / 1-027-770: Concept R 12.0 kW black
CP-RB-150 / 1-027-771: Concept R 15.0 kW black
INSTRUCTIONS FOR INSTALLATION AND USE
English
EN
Version 12/17
Ident. no. CP-RB-MA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Concept R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sentiotec Concept R

  • Page 1 Sauna heater Concept R black CP-RB-090 / 1-027-768: Concept R 9.0 kW black CP-RB-105 / 1-027-769: Concept R 10.5 kW black CP-RB-120 / 1-027-770: Concept R 12.0 kW black CP-RB-150 / 1-027-771: Concept R 15.0 kW black INSTRUCTIONS FOR INSTALLATION AND USE...
  • Page 2: Table Of Contents

    Table of Contents 1. About this instruction manual 2. Important information for your safety 2.1. Intended use 2.2. Safety information for the installer 2.3. Safety information for the user 3. Product description 3.1. Scope of delivery 3.2. Accessories 3.3. Product functions 4.
  • Page 3 7. Maintenance 7.1. Extended periods of non-use 7.2. Cleaning the sauna heater 7.3. Changing the sauna stones 8. Disposal 9. Problem-solving by the installer 10. Technical data...
  • Page 4: About This Instruction Manual

    These installation and operating instructions can also be found in the down- loads section of our website: www.sentiotec.com/downloads. Symbols used for warning notices In these instructions for installation and use, a warning notice located next to an activity indicates that this activity poses a risk.
  • Page 5: Important Information For Your Safety

    The Concept R sauna heater can also be used with a sauna control unit with a remote start function, but only in conjunction with the optional safety shutdown feature (CP-R-SWL).
  • Page 6 Instructions for installation and use p. 6/28 Only install one sauna heater in the cabin. The Concept R sauna heater must not be used together with other sauna heaters in a sauna cabin. The roof and walls of the sauna cabin must be manufactured from low-resin, untreated or thermally treated wood, e.g.
  • Page 7: Safety Information For The User

    Instructions for installation and use p. 7/28 2.3. Safety information for the user The device must not be used by children under 8 years of age. The device may only be used by children over 8 years of age, by persons with limited psychological, sensory or mental capa- bilities or by persons with lack of experience/knowledge under the following conditions: –...
  • Page 8 Instructions for installation and use p. 8/28 sauna heater before the sauna control unit is switched on. Heat up the sauna heater for half an hour BEFORE using the this period. Then ventilate the sauna cabin well (see 5.2. Heating on page 21).
  • Page 9: Product Description

    O-S2-18 / O-S2-18S /O-S2- 3.3. Product functions The Concept R sauna heater is a Finnish sauna heater and makes it possible to produce a typical Finnish sauna climate of 80 to 100 °C with an air humidity of approximately 10%.
  • Page 10: Installation And Connection

    The sauna heater may only be installed and connected when the power supply is disconnected. A fully disconnecting all-pole isolating device compliant with overvoltage The Concept R sauna heater is a free-standing heater. It does not need to example. 4.1. Installation location and sensor position Position the heater centrally in front of the air intake opening in the cabin wall.
  • Page 11: Safety Distances

    Installation instructions, only for experts p. 11/28 4.2. Safety distances Fig. 1 and Fig. 2. Fig. 1 Safety distances for Concept R 9 kW and 10.5 kW (CP-RB-090 / CP-RB-105) Measurements in mm CP-RB-090 min. min. CP-RB-105...
  • Page 12: Adjusting The Height

    Installation instructions, only for experts p. 12/28 Fig. 2 Safety distances for Concept R 12 kW and 15 kW (CP-RB-120 / CP-RB-150) Measurements in mm CP-RB-120 min. min. CP-RB-150 4.3. Adjusting the height The Concept R sauna heater has height-adjustable feet. The height can therefore be set between 715 mm and 725 mm.
  • Page 13: Connection Diagram For 400 V 3N

    Installation instructions, only for experts p. 13/28 4.4. Connection diagram for 400 V 3N~ Fig. 3 Connection diagram for Concept R 9 kW and 10.5 kW (CP-RB-090 / CP-RB-105) L2 L2 400 V~ 3x16 A 1 Sauna control unit 2 Temperature sensor with excess temperature cut-out 3 Sauna heater, 9 kW or 10.5 kW...
  • Page 14 Installation instructions, only for experts p. 14/28 Fig. 4 Connection diagram for Concept R 12 kW and 15 kW (CP-RB-120 / CP-RB-150)
  • Page 15: Connection Diagram For 230 V 1N

    Installation instructions, only for experts p. 15/28 4.5. Connection diagram for 230 V 1N~ Connection diagram for Concept R 9 kW and 10.5 kW Fig. 5 (CP-RB-090 / CP-RB-105) L1 L2 230V 1N~ 1 Sauna control unit 2 Temperature sensor with excess temperature cut-out 3 Sauna heater, 9 kW or 10.5 kW...
  • Page 16: Wiring Diagrams

    Installation instructions, only for experts p. 16/28 4.6. Wiring diagrams CP-RB-090 U V W CP-R-090 9.0 kW 9,0 kW To the sauna control unit U V W CP-RB-105 CP-R-105 10.5 kW 10,5 kW To the sauna control unit...
  • Page 17 Installation instructions, only for experts p. 17/28 CP-RB-120 U1V1W1 N 12.0 kW CP-R-120 To the To the 12,0 kW sauna power control unit booster 9 kW 3.3 kW CP-RB-150 U1V1W1 N CP-R-150 15.0 kW To the To the 15,0 kW sauna power control unit...
  • Page 18: Electrical Connection

    1. Unscrew the screws 3 and 4 with a screwdriver. 2. Unscrew the screws 1 and 5 with a screwdriver. 3. Remove the cover plate 2. Connection of Concept R 9 kW and 10.5 kW (CP-RB-090 / CP-RB-105) 1. Guide the connection cable through the feed-through 6.
  • Page 19 Installation instructions, only for experts p. 19/28 Connection of Concept R 12 kW and 15 kW (CP-RB-120 / CP-RB-150) 1. Guide the connection cable for the sauna control unit through the feed- through 8. 2. Connect the connectors of this connection cable to the U1 – V1 – W1 – N – PE terminals on the connector block 9 and to the applicable sauna control unit terminals.
  • Page 20: Commissioning

    Instructions for use for the user p. 20/28 5. Commissioning 5.1. Filling the stone container WARNING! If the sauna heater is used without sauna stones, the cabin walls will NEVER operate the sauna heater without the sauna stones. The amount of stones suited to your heater output can be found in chapter 10.
  • Page 21 Instructions for use for the user p. 21/28 5.2. CAUTION! Materials used during the manufacturing process will be present on the new heating elements. These evaporate when the sauna heater is heat- Breathing in the fumes or smoke can be harmful to your health. Perform the following steps when time and if the heating elements for the sauna heater have been replaced.
  • Page 22: Operation

    Please note that only sauna control units without a remote start function are permitted for use with the Concept R sauna heater. With the optional safety shutdown feature (CP-R-SWL), the Concept R sauna heater is also suitable for sauna control units WITH a remote start function.
  • Page 23: Maintenance

    Instructions for use for the user p. 23/28 7. Maintenance 7.1. Extended periods of non-use Moisture can accumulate in the heating rods in humid ambient conditions or during long periods of non-use. This is a physical process and not a manufactur- ing fault.
  • Page 24: Disposal

    Instructions for use for the user p. 24/28 1. Remove the old sauna stones. 2. Clear the stone container of limescale deposits, dust and other contamination. 3. Wash the stones thoroughly using water and a brush before use. Do not use any cleaning additives.
  • Page 25: Problem-Solving By The Installer

    Instructions for use for the user p. 25/28 9. Problem-solving by the installer Baking out of the heating rods Moisture can accumulate in the heating rods in humid ambient conditions or dur- ing long periods of non-use. This is a physical process and not a manufacturing fault.
  • Page 26: Technical Data

    Instructions for installation and use p. 26/28 10. Technical data The dimensions of the various power rating versions can be found in Fig. 6 and Fig. 7 on page 27. Weight Power Cabin Minimum size of Item without rating volume ventilation opening number stones...
  • Page 27 Instructions for installation and use p. 27/28 Fig. 6 Dimensions of Concept R 9 kW and 10.5 kW (CP-RB-090 / CP-RB-105) Measurements in mm Fig. 7 Dimensions of Concept R 12 kW and 15 kW (CP-RB-120 / CP-RB-150) Measurements in mm...
