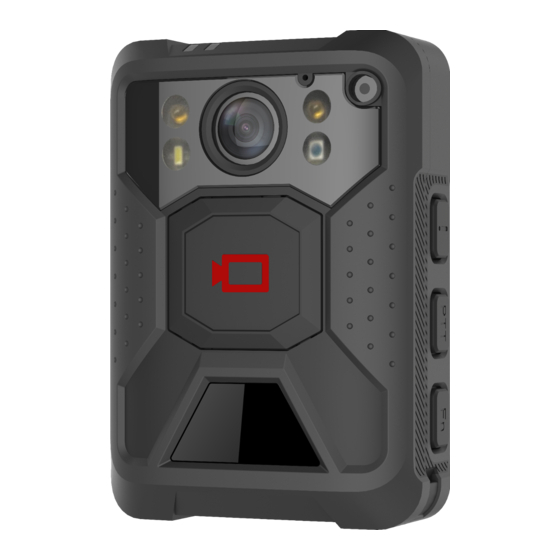

Body camera
Hide thumbs Also See for DS-MCW407:
Table of Contents

Advertisement

Quick Links

Download this manual
Body Camera
User Manual

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION DS-MCW407

Summary of Contents for HIKVISION DS-MCW407

  • Page 1 Body Camera User Manual...
  • Page 2 ● Products described in this Document, which may include licenses obtained from third parties. Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part ● of this Document may be excerpted, copied, translated, or modified in whole or in part by any means without written permission.
  • Page 3 LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY ●...
  • Page 4 Body Camera User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could Caution result in equipment damage, data loss, performance degradation, or unexpected results.

  • Page 5: Table Of Contents

    Body Camera User Manual Contents Chapter 1 Product Introduction ....................1 1.1 Introduction ........................... 1 1.2 Key Feature ..........................1 Chapter 2 Activation ........................2 Chapter 3 Startup and Main Menu ..................... 3 3.1 Login ............................3 3.2 Live View Page Introduction ....................3 3.3 Main Menu ..........................
  • Page 6 Body Camera User Manual 5.7 Set Multi-Line OSD ....................... 15 Chapter 6 Network Settings ...................... 16 6.1 Set Positioning ........................16 6.2 Dial-up ..........................17 6.3 Connect to Wi-Fi ........................19 6.4 Connect to Platform ......................20 6.4.1 Connect to ISUP Platform ................... 20 6.4.2 Connect to Guarding Vision ..................
  • Page 7 Body Camera User Manual 9.8 Restore Basic Settings ......................30 9.9 Restore Factory Settings ....................... 31 9.10 Alarm Settings ........................31 9.10.1 Set Auto Alarm ......................31 9.10.2 Set Manual Alarm ..................... 31 9.11 Shut down and Sleep ......................31 9.11.1 Shut down .........................

  • Page 8: Chapter 1 Product Introduction

    Body Camera User Manual Chapter 1 Product Introduction 1.1 Introduction Body camera (hereinafter referred to as device) highly integrates with record, taping, capture, positioning, etc. It is embedded with positioning module with high sensitivity to locate the occurring position of events accurately. It can record the process and condition of events completely via record, taping, and capture.

  • Page 9: Chapter 2 Activation

    Body Camera User Manual Chapter 2 Activation Activate the device for the first-time use. Steps 1. After you start up the device, you will enter the activation page. Set a custom 6-digit admin password, and select OK. Figure 2-1 Activation Note The password can contain the same numbers.

  • Page 10: Chapter 3 Startup And Main Menu

    Body Camera User Manual Chapter 3 Startup and Main Menu 3.1 Login Users issued by the dock station or platform can log in to the device. The logged user can view all the videos, audios, and pictures of all the users. Before You Start Connect the device to the dock station or platform.
  • Page 11 Body Camera User Manual Figure 3-2 Live View Page Table 3-1 Live View Page Description Description The TF card status. Note If the TF card is abnormal, there will be an exclamation mark on the icon. ● When overwritten recording is enabled, there will be a green recycling symbol ●...

  • Page 12: Main Menu

    Body Camera User Manual Description Group intercom status: If the device is not connected to the group intercom platform, the icon will not display. After the device is connected to the group intercom platform, the icon changes to white. Refer to Group Intercom for details. Mute.
  • Page 13 Body Camera User Manual Table 3-2 Main Menu Description Menu Description File Select it to view the videos, audios, and pictures saved in the device. Group Select it to set group intercom parameters and join the group intercom. Intercom Select it to set camera, network and system. Note If you have enabled Menu Verification or Playback Verification, you need to enter the admin password when you enter the main menu or File page.

  • Page 14: Chapter 4 Basic Operations

    Body Camera User Manual Chapter 4 Basic Operations 4.1 Storage The recorded videos, taped audios, and captured pictures will be stored in the device. 4.1.1 Release Storage Capacity When the device available capacity is less than 150 MB, it will prompt that the storage is not enough.

  • Page 15: Tape

    Body Camera User Manual 2. Hold the recording button again to stop recording. 3. Optional: Select File on the main menu to view the recorded videos. Note If you want to record a period of time before recording starts, select Set → Camera → Record ●...

  • Page 16: Playback

    Body Camera User Manual Steps 1. After the device starts up, press the capture button. The device captures a picture. 2. Optional: Select File on the main menu to view the captured pictures. 4.2 Playback You can play back videos, audios, and pictures via the device. Steps 1.

  • Page 17: Backup

    If you have set Video Format as PS in Set → Camera → Record Param. , you can only play the ● backed up video files via Hikvision player or other players with Hikvision play plugin. Visit Hikvision official website to download VSPlayer and install it. Or visit Hikvision official website to download MFPlugin and install it.
  • Page 18 Body Camera User Manual Figure 4-4 Set a Tag During Video Playback After recording, taping, or capturing, select File, and select a certain file from the video, audio, ● or picture file list. Hold the file name to set a tag. The name of the tagged file will be displayed as orange.

  • Page 19: Chapter 5 Camera Settings

    Body Camera User Manual Chapter 5 Camera Settings 5.1 Set Record Parameters You can set the video stream parameters when recording. Steps 1. Select Set → Camera → Record Param. 2. Set the parameters below. Video Resolution The higher the resolution is, the clearer the image will be. Meanwhile, the network bandwidth requirement is higher.

  • Page 20: Set Network Transmission Parameters

    Select PS, and the video files will be packed in PS format. You need to play the video files via Hikvision player or other players with Hikvision play plugin. Visit Hikvision official website to download VSPlayer and install it. Or visit Hikvision official website to download MFPlugin and install it.

  • Page 21: Set Picture Quality

    Body Camera User Manual IR light will be enabled only when the environment is dim and recording or remote live view starts. No matter how the environment light is, once you start recording or remote live view, IR light will be enabled. No matter how the environment light is, IR light will be disabled for recording or remote live view.

  • Page 22: Set Multi-Line Osd

    Body Camera User Manual 5.7 Set Multi-Line OSD You can set the overlay information on the videos and pictures. Steps 1. Select Set → Camera → Multi-Line OSD . 2. Enable Multi-Line OSD. 3. Select OSD to set OSD information. Result After you have switched the device to the USB mode, you can view the OSD information overlaid on the videos and pictures copied to the connected computer.

  • Page 23: Chapter 6 Network Settings

    Body Camera User Manual Chapter 6 Network Settings 6.1 Set Positioning You can set positioning to locate the position of the device. Steps 1. Enable positioning via the below operations. - Swipe the screen down to open the notification center. Select to enable positioning.

  • Page 24: Dial-Up

    Body Camera User Manual Figure 6-2 Enable Positioning from Network Settings 2. Set the following parameters. GPS Overlay The positioning information will be overlaid on the videos, pictures, and remote live view image. GPS Time Sync. The device will synchronize time with the GPS time. Result The white positioning icon appears on the status bar, indicating positioning succeeded.
  • Page 25 Body Camera User Manual Figure 6-3 Enable Dial-up from Notification Center - On the main menu, select Set → Network → Dial-up to enable Dial-up. Figure 6-4 Enable Dial-up from Network Settings 2. Select Set → Network → Dial-up → APN to set APN parameters. Note Contact the service supplier to get the APN information.

  • Page 26: Connect To Wi-Fi

    Body Camera User Manual Result The white dial icon appears on the status bar, indicating dialing succeeded. 6.3 Connect to Wi-Fi Set Wi-Fi parameters if you want to connect the device to the network via Wi-Fi. Steps Note Dial-up will be disabled after Wi-Fi is enabled. ●...

  • Page 27: Connect To Platform

    Body Camera User Manual Figure 6-6 Enable Wi-Fi from Network Settings 2. Select Refresh to search available Wi-Fi. 3. Select the Wi-Fi to connect, and enter the password. 4. Optional: You can do the below operations. View the connected Wi-Fi information Select the connected Wi-Fi to view the information. Set the static Wi-Fi a.

  • Page 28: Connect To Guarding Vision

    Body Camera User Manual Steps 1. Select Set → Network → ISUP . 2. Enable ISUP Connection. Note After enabling platform connection, reboot the device to take the new settings into effect. 3. Select ISUP to set IP, Port, and other parameters. Note The device ID should be the same as the ID set on the platform.

  • Page 29: Connect To Otap Platform

    Body Camera User Manual Note If the password set when activation is not changed, the admin password is the activation password. If the admin password has been changed after activation, the admin password is the changed one. 3) Set verification code and video key. Caution You need to set a medium password (8 to 16 characters, including the combinations of digits and special characters, the combinations of uppercase and lowercase letters, the...
  • Page 30 Body Camera User Manual 2. Enable OTAP Connection. Note After enabling platform connection, reboot the device to take the new settings into effect. 3. Set OTAP parameters. 1) Select OTAP Settings. 2) Enter the platform IP address, port, and device ID. Note The device ID should be the same with the added one on the OTAP platform.

  • Page 31: Chapter 7 System Settings

    Body Camera User Manual Chapter 7 System Settings 7.1 Set Voice Prompt You can enable or disable the voice prompt when you start/stop recording. Steps 1. Select Set → System → Voice Prompt . 2. Enable or disable Voice Prompt according to your needs. Result If you enable the function, there will be voice prompt when you start/stop recording.

  • Page 32: Switch Usb Mode

    Body Camera User Manual 7.6 Switch USB Mode You can switch the device to USB mode to import or export data. Steps 1. Select Set → System → Auto USB Mode . 2. Enable Auto USB Mode. 3. Enter the admin password. What to do next Connect the device to the computer via a data cable, and you can import or export data.
  • Page 33 Body Camera User Manual Enable power saving mode via the below operations. Swipe the screen down to open the notification center. Select to enable power saving mode. ● You can hold the icon to enter the settings page. Figure 7-1 Enable Power Saving Mode from Notification Center On the main menu, select Set →...

  • Page 34: Chapter 8 Group Intercom

    Body Camera User Manual Chapter 8 Group Intercom You can realize group intercom via the device. Before You Start The device is connected to the platform. ● Register the device on the group intercom service configuration interface via the web browser. ●...
  • Page 35 Body Camera User Manual Search the group On the group member page, enter the key words in the text field to member search the member. Receive/hang up When the other member in the group sends an audio call to you, you can the audio call select to receive the audio call, or you can select...

  • Page 36: Chapter 9 Maintenance

    Body Camera User Manual Chapter 9 Maintenance 9.1 View Device Information Select Set → System → Device Information to view the device information such as person ID, device ID, etc. Select User Information to select the information to display on the lower left corner of the live view page.

  • Page 37: Edit Password

    Body Camera User Manual 9.6 Edit Password It is recommended to edit the admin password regularly to raise data security. Steps 1. Select Set → System → PWD Verification → Edit Password . 2. Enter the old password and new password, and confirm the new password. 3.
  • Page 38 Body Camera User Manual 9.9 Restore Factory Settings If there is device exception due to the wrong set parameters, you can restore the device to the factory settings. Steps 1. Select Set → System → System → Restore Factory Settings . 2.
  • Page 39 Body Camera User Manual 9.11.2 Shut down Forcedly If the device cannot be shut down normally, you can hold the startup/shutdown button for 15 seconds to shut it down forcedly. 9.11.3 Sleep Manually After the device starts up, press the startup/shutdown button to sleep the device. 9.11.4 Set Screen Saver You can set the device to sleep automatically to save power if there is no operation within a certain time.
