Assembly Instructions for Java Furniture: JFV65 & JFV75
Thank you for Choosing the Java Furniture Line from Sanus Systems. If you have any questions regarding this or any other Sanus
Systems product, please contact us at 800.359.5520 or visit us at www.sanus.com. Our customer service representatives can assist you
quickly with any issues regarding assembly or missing parts. Check carefully to make sure none of the parts are missing or defective.
Never use defective parts. Replacement parts for products purchased from an authorized dealer will be shipped directly to you. Please
call Sanus Systems before returning products to retail stores.
Required Tools: Phillips Screw Driver
Note: Check carefully to make sure you have all the hardware listed below.

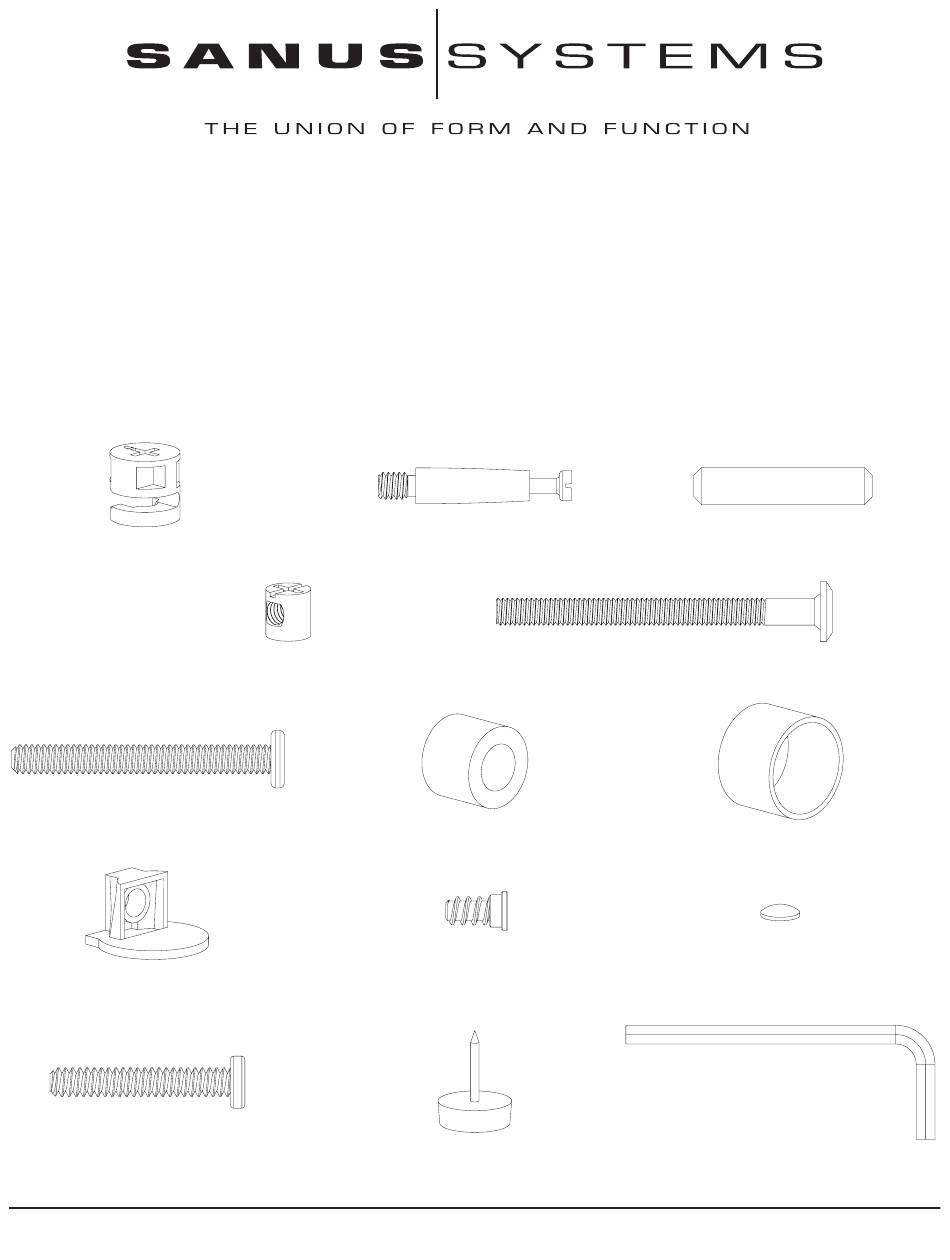

Hardware: Hardware shown at actual size.
(18) Cam - a
(18) Cam Pin - b
(26) Dowel - c
(4) Barrel Nut - d
(4) Barrel Nut Bolt - e
(8) M6 Bolt - f
(8) Rubber Spacer - g
(8) Aluminum Spacer - h
(12) Shelf Pin - i
(12) Shelf Pin Screw - j
(8) Door Protectors - k
(8) Base Bolt - l
(10) Carpet Glide - m
(1) Allen Key - n
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 11.14.16 (6901-100105)
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the JFV65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sanus Systems JFV65

  • Page 1 Assembly Instructions for Java Furniture: JFV65 & JFV75 Thank you for Choosing the Java Furniture Line from Sanus Systems. If you have any questions regarding this or any other Sanus Systems product, please contact us at 800.359.5520 or visit us at www.sanus.com. Our customer service representatives can assist you quickly with any issues regarding assembly or missing parts.
  • Page 2 (1) Top - o (1) Bottom - p (1) Right Inside Panel - q (1) Left Inside Panel - r (1) Right Outside Panel - s (1) Left Outside Panel - t (2) Side Shelf - u (1) Middle Shelf - v (2) Front Base Rail - w (2) Side Base Rail - x (2) Leg - y...
  • Page 3 Step 1: Prepare the Top Place the Top (o) upside down on a soft surface to lessen the chance of scratching. Insert 8 Cam Pins (b) and 8 Dowels (c) into the Top as seen in Diagram 1. Proceed to tighten each Cam Pin with a Phillips screw driver. Next, orient the Barrel Nut (d) so the hole in its side faces the hole in the back of the Top.
  • Page 4 Step 3: Add Inside Panels Insert each Cam (a) into each Inside Panel (q,r) in the same manner as you did in Step 2. Place the Inside Panel so that it fits over the Dowels (c) and Cam Pins (b) as shown in the Detailed View of Diagram 3. Make sure the Inside Panels do not block the Channel. The Cams on the Inside Panel should be facing the Outside Panels.
  • Page 5 Step 5: Add Barrel Nut and Bolt Place the Bottom (p), with track and channel facing up on a soft surface, which will help prevent scratching. Next, orient the Barrel Nut (d) so the hole in its side faces the hole in the back of the Top. Proceed to insert the Barrel Nut into the hole as shown in the Detail View of Diagram 5.
  • Page 6 Step 7: Prepare Bottom Insert 6 Cam Pins (b) and 6 Dowels (c) into the Bottom (p) as shown in the Detailed View of Diagram 7. Tighten all Cam Pins with a Phillips screw driver until they are tight. Detailed View Diagram 7 Step 8: Assemble Base Insert 4 Cam Pins (b), 4 Dowels (c), and 10 Cams (a) as shown in Diagram 8.
  • Page 7 Step 9: Add Base Assembly to Bottom Flip and align the assembled base frame so the holes in the assembled base frame line up with the Dowels (c) and Cam Pins (b) on the Bottom (p). Proceed to tighten all 6 of the Cams (a) on the Front Base Rails (w) that correspond with the Cam Pins on the Bottom so that the assembled base frame is secured to the Bottom.
  • Page 8 Step 11: Add Carpet Glides Gently tap a Carpet Glide (m) into each Leg (y), and into the locations shown in the Front Base Rails (w) and Side Base Rails (x). See the Detailed View of Diagram 11 for assistance. Detailed View Diagram 11 Step 12: Add Shelves...
  • Page 9 Diagram 14 track Note: If Doors (z) do not slide easily, make sure wheels are sitting properly on the track. Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 11.14.06 (6901-100105) Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com...
