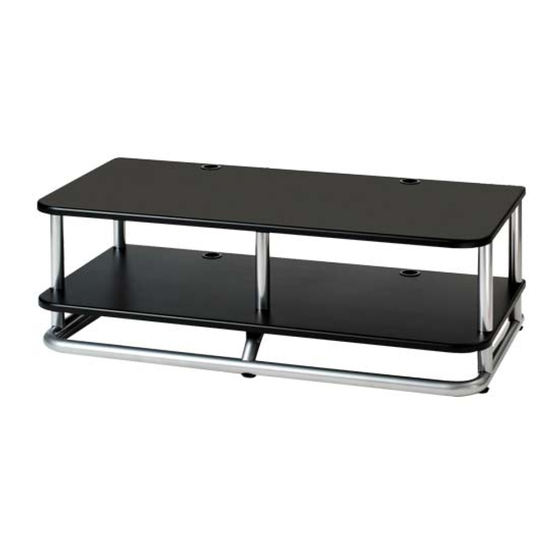

Assembly Instructions for Model: EFAV-II
Thank you for choosing the Sanus Systems Model EFAV-II. Every effort has
been made to ensure that your Sanus Systems furniture is perfect. If you have
questions or feel that there is a problem of any kind, please contact us at
800-359-5520 or at www.sanus.com. We can quickly help with any issues
regarding assembly or missing parts. Replacement parts for Sanus systems
products purchased through authorized dealers will be shipped directly to you.
Supplied Parts List: (All threaded fasteners are shown full scale)
8" Pillar - A
Metal Base - D
Top Bolt - F
Qty. 5
Floor Glide - I
Sanus Systems
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
Qty. 5
Qty. 1
Pan head Bolt - G
Qty. 5
2221 Hwy 36 West, Saint Paul, MN 55113 2.01.06 (000009)
3" Cope Tube - B
Qty. 4
Qty. 5
Wire Bushing - J
Qty. 4
Angled Center Support - C
Qty. 1
Video Shelf - E
Qty. 2
Shelf Connector - H
Qty. 5
Allen Key - K
Qty. 1
Advertisement
Table of Contents
Related Manuals for Sanus Systems Sanus Euro Furniture EFAV EFAV-II EFAV-II
Summary of Contents for Sanus Systems Sanus Euro Furniture EFAV EFAV-II EFAV-II
- Page 1 Thank you for choosing the Sanus Systems Model EFAV-II. Every effort has been made to ensure that your Sanus Systems furniture is perfect. If you have questions or feel that there is a problem of any kind, please contact us at 800-359-5520 or at www.sanus.com.
- Page 2 Step 1 - Attach Floor Glides to Metal Frame Thread the fi ve Floor Glides (I) into the Metal Base (D). Step 2 - Attach 3” Cope Tubes to Metal Base Thread a Shelf Connector (H) securely into the four 3” Cope Tubes (B). NOTE: Do not tighten the Pan Head Bolts (G) until the entire EFAV-II is assembled.
- Page 3 Step 3 - Place a Video Shelf on the Metal Base Align four holes in a Video Shelf (E) with the Shelf Connectors (H) threaded into the 3” Cope Tubes (B) in Step 2; then, place the Video Shelf onto the 3” Cope Tubes. Step 4 - Secure the Angled Center Support to the Video Shelf NOTE: Make sure the coped end of the Angled Center Support (C) fi...
- Page 4 Step 5 - Attach 8” Pillars By hand, fi rmly thread an 8” Pillar (A) to the four Shelf Connectors (H) protruding through the Video Shelf (E). Diagram 5 NOTE If you are installing addditional shelves, refer to the Assembly Instructions for Model: EFVS-II. Step 6 - Secure Video Shelf to 8”...
- Page 5 Step 7 - Install Wire Bushings Snap the four Wire Bushings (J) into the four holes in the Video shelves (E). Diagram 7 2221 Hwy 36 West, Saint Paul, MN 55113 2.01.06 (000009) Sanus Systems Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com...
