VI . D I S A S S E M B LY AND A S S E M B LY
DISASSEMBLY
You can disassemble the Travel Scooter into several pieces: the seat, the under-seat storage, the rear section, the front
section, the basket and the battery pack, See figure 31. No tools are required to disassemble or assemble your
Travel Scooter. Always disassemble or assemble your Travel Scooter on a level, dry surface with sufficient room for
you to work and move around—about 5 feet (1.5 meters) in all directions. Remember that some Travel Scooter
components are heavy and you may need assistance when lifting them.
WARNING! Do not lift weight beyond your physical capability. Ask for assistance when necessary
while disassembling or assembling your Travel Scooter.
WARNING! Do not pick up the seat frame or scooter by the armrests. They are free to pivot, and
you may lose control of the seat if they do so.
IDENTIFICATION KEY
1. Seat
2. Under-seat Storage
3. Rear Section
4. Front Section
5. Basket
6. Battery Pack
* Indicates
Lifting Points

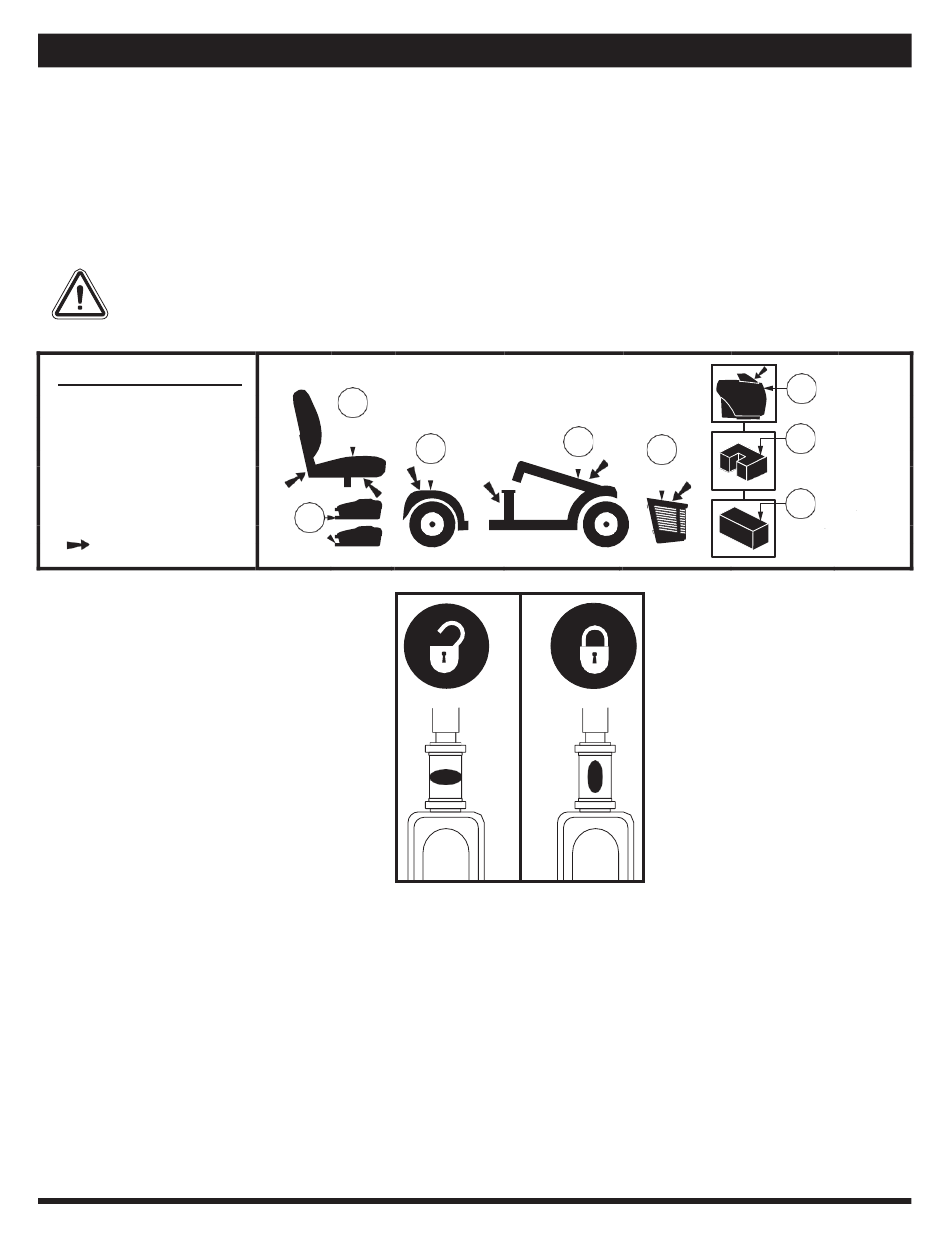

Figure 31. Disassembled Travel Scooter
Figure 32. Tiller Lock Knob

DISASSEMBLY PROCEDURES

1. Remove the key from the key switch and then lock the tiller in the straight-ahead position by pushing the tiller lock
knob in and turning it clockwise 90°. See figure 32. The front wheel must face forward in order to lock the tiller.
2. Remove the seat by lifting it straight up and off of the Travel Scooter. If you encounter resistance when removing
the seat, disengage the seat rotation lever and swivel the seat back and forth while lifting up on the seat.
3. Remove the battery pack by lifting the pack straight up and off the Travel Scooter.
1
3
2
4
5
Apex Alumalite
6a
6b
6c
