Assembly/Disassembly - Pride Mobility IGO Fold Owner's Manual

Initial Assembly
Your power chair may require some assembly either before initial use or after transportation. It may also
require disassembly to make some comfort adjustments.
NOTE: Any nylon insert lock nut removed during the disassembly or adjustment of the power
chair must be replaced with a new nut. Nylon insert lock nuts should not be reused as it may
cause damage to the nylon insert, resulting in a less secure fit. Replacement nylon insert lock
nuts are available at local hardware stores or through your authorized retailer.
To assemble your power chair:
1. Unfold the power chair assembly. See "Folding and Unfolding."
2. Install the battery box into the battery tray by sliding it horizontally into the rear of the frame beneath
the seat until the securement pin clicks into place. See figure 4.
3. Flip up the armrests.
4. Adjust the controller.
5. Remove the battery charger from the box and plug into the controller charger port. Follow the charging
instructions printed on the charger. See figure 12.

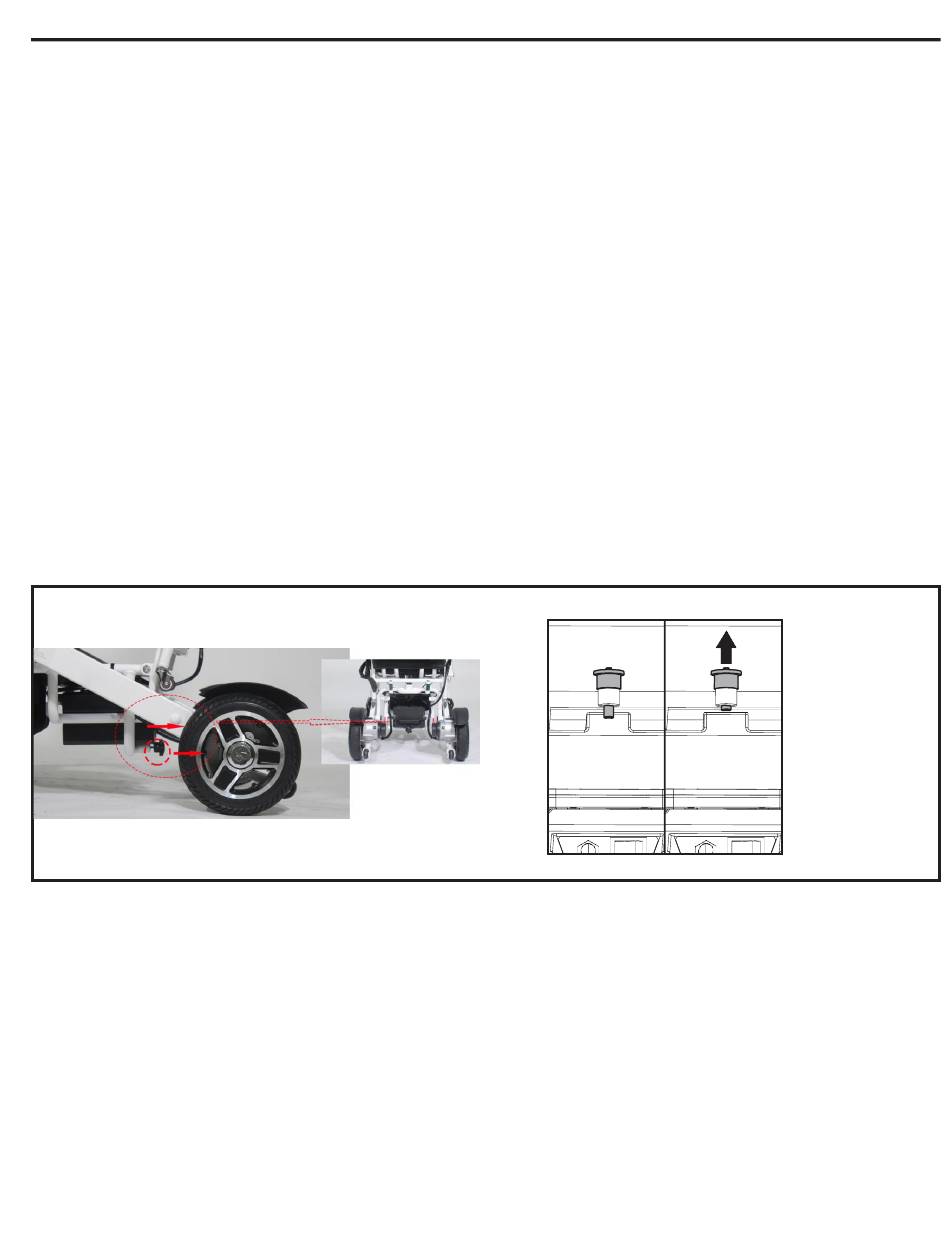

Figure 4. Battery Box Removal/Installation

Assembly/Disassembly

See figure 5.
13
