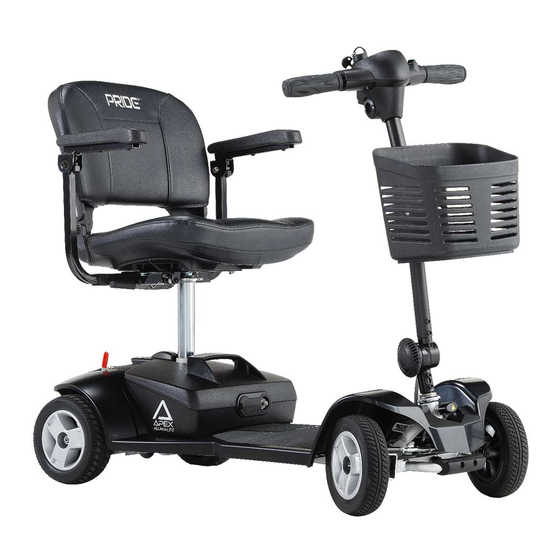

- Page 1 APEX ALUMALITE LITHIUM BATTERY...
- Page 2 NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements. NOTE: This product meets IPX4 classification (IEC 60529). NOTE: The Travel Scooter and its components are not made with natural rubber latex. Consult with the manufacturer regarding any after-market accessories. Apex Alumalite Manual Copyright © 2020 P4030221/Rev A/July 2020...
- Page 3 PROHIBITED! These actions are prohibited. These actions should not be performed at any time or in any circumstances. Performing a prohibited action can cause personal injury and/or equipment damage. On the product, this icon is represented as a black symbol with a red circle and red slash. Apex Alumalite...
- Page 4 Remove key from an unattended Travel Scooter. Indicates tie-down points on the Travel Scooter. Does not meet ISO 7176-19 standards for occupied transport in a motor vehicle. When traveling in a motor vehicle, do not sit in your Travel Scooter. Manufactured in Apex Alumalite...
- Page 5 ◼ Ensure the manual freewheel lever is in drive mode before sitting on the Travel Scooter. If you discover a problem, contact your authorized Provider for assistance. Please refer to the Contact Information insert in your Owner’s Package. Apex Alumalite...
- Page 6 IDENTIFICATION KEY FOR FIGURES 1 THROUGH 6 1. Horn 7. Off-board Charger Fuse 2. Key Switch 3. Battery Condition Meter 4. Speed Adjustment Dial 5. Throttle Control Lever 6. Charger Power Cord Receptacle (Tiller Port)* Figure 2. Tiller Console Apex Alumalite...
- Page 7 ◼ The image of the hare represents the fastest speed setting. Throttle Control Lever This lever allows you to control the forward speed and the reverse speed of your scooter up to the maximum speed you preset with the speed adjustment dial. Apex Alumalite...
- Page 8 2. Push forward on the manual freewheel lever to disable the drive system and the brake system. You may now push your Travel Scooter. 3. Push the manual freewheel lever rearward to reengage the drive and the brake systems; this takes your Travel Scooter out of freewheel mode. Apex Alumalite...
- Page 9 NOTE: You must turn off the power before disabling the drive systems; otherwise, you may get an error code on the scooter. To clear this code, turn off the scooter and place the travel scooter in drive mode. Then turn on the scooter. The error message should be cleared. If not, contact an authorized Provider. Apex Alumalite...
- Page 10 ◼ If the main circuit breaker trips frequently, you may need to charge your batteries more often. You may also need to have your authorized Provider perform a load test on your Travel Scooter’s batteries. ◼ If the main circuit breaker trips repeatedly, see your authorized Provider for service. Apex Alumalite...
- Page 11 6. Battery Terminals 3. Charger Power Cord Receptacle 7. Tiller Console Fuse 4. Battery Pack Fuse Alumalite Pack Battery Pack Style B Battery Pack Style D Battery Pack Style C (Travel Scooter Deck) (Travel Scooter Deck) Figure 9. Battery Pack Apex Alumalite...
- Page 12 Travel Scooter’s batteries. See figure 13. Figure 12. Charger Power Cord Receptacle (Battery Pack) Figure 11. Charger Power Cord Receptacle (Tiller Mounted) Figure 13. Off-board Battery Charger Apex Alumalite...
- Page 13 Travel Scooter could tip or slide out of place. IDENTIFICATION KEY Front Securement Points Rear Securement Points Figure 14. Securement Points (Identified with black dots) Apex Alumalite...
- Page 14 Batteries and Charging Batteries and Charging Your scooter uses one long-lasting Lithium-Ion battery. This battery is sealed and maintenance-free. Since it is sealed, there is no need to check the electrolyte (fluid) level. Lithium-Ion batteries are designed to handle a longer and deeper discharge. Though they are similar in appearance to automotive batteries, they are not interchangeable.
- Page 15 NOTE: The scooter battery can be charged with the battery box either installed on or removed from the scooter. To charge the battery using the off-board charger: 1. Position your scooter next to a standard electrical outlet. 2. Be certain the scooters power is turned off. 3.
- Page 16 To charge the battery with the battery removed from the scooter: 1. Remove the battery from the scooter. See figure 4. 2. Position the battery next to a standard electrical outlet. 3. Plug the off-board charger into the battery charger port. See figure 13. 4.
- Page 17 How can I get maximum range or distance per charge? Rarely do you have an ideal driving situation such as smooth, flat, hard terrain with no wind, hills, or curves. More often you are presented with hills, pavement cracks, uneven and loosely packed surfaces, curves, and wind.
- Page 18 How should I store my scooter and its battery? If you do not use your scooter regularly, we recommend maintaining battery vitality by charging the battery at least once per week. If you do not plan on using your scooter for an extended period, fully charge the battery prior to storage. Disconnect the battery, and store the scooter in a warm, dry environment.
- Page 19 ◼ Pull on the right handgrip to steer your Travel Scooter to the right. ◼ Move the tiller to the center position to drive straight ahead. ◼ To stop, slowly release the throttle control lever. The electronic brakes will automatically engage when your Travel Scooter comes to a stop. Apex Alumalite...
- Page 20 Travel Scooter for approximately 20 minutes, the Travel Scooter’s controller shuts down automatically. If the power down timer feature takes effect, perform the following steps to resume normal operation. 1. Remove the key from the key switch. 2. Reinsert the key and power up your Travel Scooter. Apex Alumalite...
- Page 21 4. While holding the upper seat post at that height, align the adjustment holes of the upper and lower seat posts. 5. Fully insert the detent pin. 6. Replace the battery pack and seat. Figure 25. Seat Height Adjustment Apex Alumalite...
- Page 23 If you discover a problem, contact your authorized Provider for maintenance and repair. Figure 30. Positioning Belt - Reusable Hook and Loop Fastener Style Apex Alumalite...
- Page 24 2. Remove the seat by lifting it straight up and off of the Travel Scooter. If you encounter resistance when removing the seat, disengage the seat rotation lever and swivel the seat back and forth while lifting up on the seat. 3. Remove the battery pack by lifting the pack straight up and off the Travel Scooter. Apex Alumalite...
- Page 25 5. Reinstall the seat and rotate it until it is secured into place. 6. Unlock the tiller by turning the tiller lock knob 90° counterclockwise. See figure 32. WARNING! After assembly, make absolutely certain the tiller lock knob is in the unlocked position before riding your Travel Scooter. Apex Alumalite...
- Page 26 ◼ When the manual freewheel lever is pushed forward, the brakes are disengaged and all power to the motor/ transaxle assembly is cut. ◼ Pull back on the manual freewheel lever, turn the Travel Scooter off, and then back on to return to normal operation. Apex Alumalite...
- Page 27 ◼ Or, see the previous troubleshooting question for load testing the batteries yourself. If you experience any problems with your Travel Scooter that you are not able to solve, immediately contact your authorized Provider for information, maintenance, and service. Apex Alumalite...
- Page 28 ◼ Use a damp cloth and mild, non-abrasive cleanser to clean the plastic and metal parts of your Travel Scooter. Avoid using products that may scratch the surface of your Travel Scooter. ◼ If necessary, clean your product with an approved disinfectant. Make sure the disinfectant is safe for use on your product before application. Apex Alumalite...
- Page 29 ◼ Check for extreme wear on the anti-tip wheels. Replace them as necessary. ◼ Check for tire wear. See your authorized provider for repair. ◼ Keep you Travel Scooter clean and free of foreign material, such as mud, dirt, hair, food, drink, etc. Apex Alumalite...
- Page 30 Your Travel Scooter must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorized Provider for information on proper disposal of packaging, metal frame components, plastic components, electronics, batteries, neoprene, silicone, and polyurethane materials. Apex Alumalite...
- Page 31 NO TE S Apex Alumalite...
- Page 32 Manufacturer: Suzhou Sweetrich Vehicle Industry Technology co., Ltd. No.68 XinFa Road, Suzhou Industrial Park, Jiangsu, China, 215123 EU Representative: SWEMO GmbH Adenauerstrasse 6 52146, Wuerselen, Germany UK Distributor: Pride Mobility Ltd 32 Wedgwood Road Bicester, Oxfordshire OX26 4UL www.pride-mobility.co.uk...
