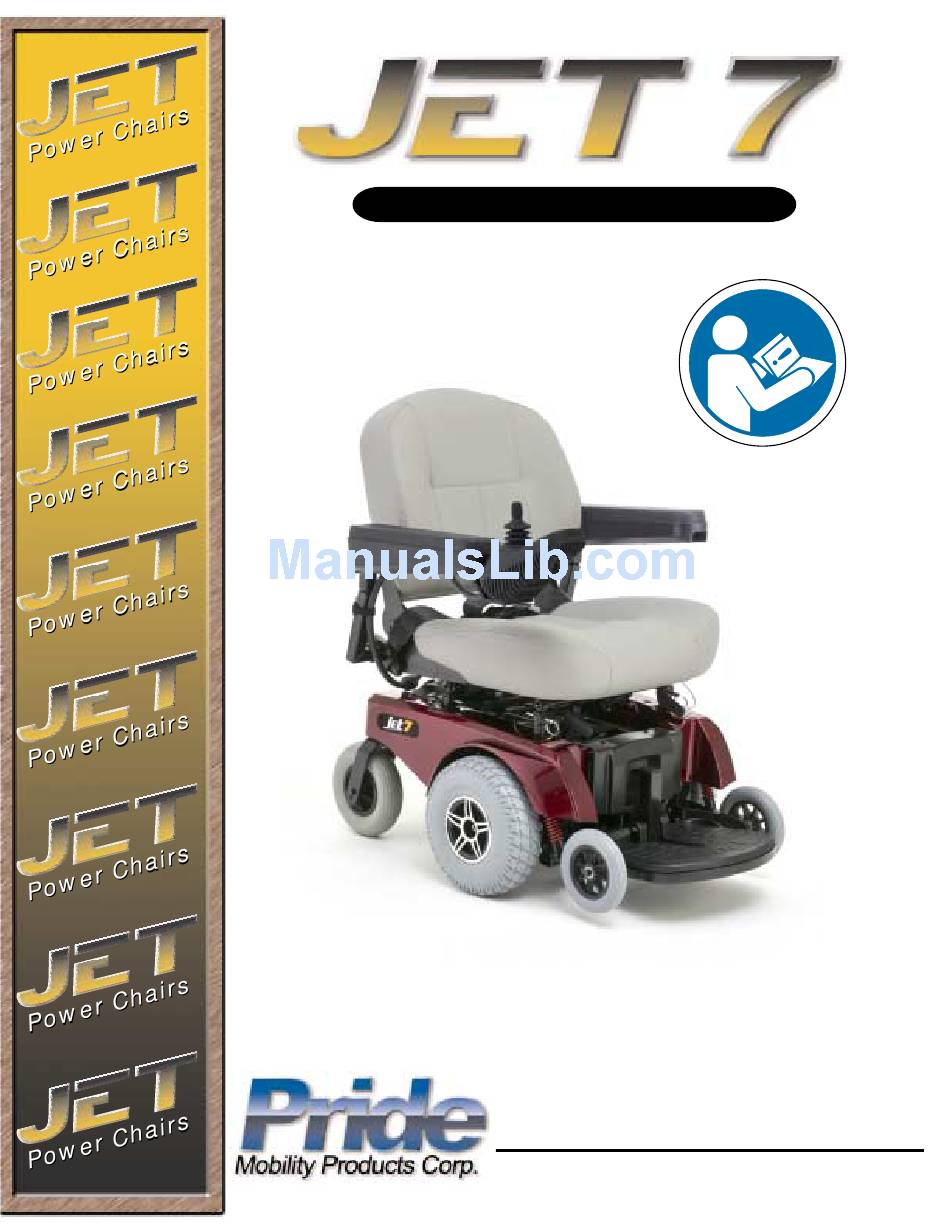

  • Page 1 Owner’s Manual ® Stylish Design and Premium Performance Exeter, PA St. Catharines, ON 1-800-800-8586 www.pridemobility.com...
  • Page 2 Performing a prohibited action can cause injury to personnel and/or damage to equipment (black symbol with red circle and red slash). Copyright © 2006 Pride Mobility Products Corp. INFMANU1807/Rev J/Aug 2006 G U I D E L I N E S www.pridemobility.com...
  • Page 3 We reserve the right to make changes as they become necessary. Any changes to our products may cause slight variations between the illustrations and explanations in this manual and the product you have purchased. Jet 7 C O N T E N T S...
  • Page 4 I N T R O D U C T I O N SAFETY WELCOME to Pride Mobility Products Corporation (Pride). The power chair you have purchased combines state-of- the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities.
  • Page 5 These message boards invite you to communicate with other Pride customers as well as Pride represen- tatives who are available to assist you with any questions or concerns you may have. My Authorized Pride Provider is: Name:_____________________________________________________________________________________ Address:____________________________________________________________________________________ Phone Number:_______________________________________________________________________________ Purchase Date:________________________________________________________________________________ Jet 7 www.pridemobility.com...
  • Page 6 ! Check the brakes. See IX. “Care and Maintenance.” ! Check battery charge. See VIII. “Batteries and Charging.” NOTE: If you discover a problem, contact your authorized Pride Provider for assistance. I I . S A F E T Y www.pridemobility.com Jet 7...
  • Page 7 WARNING! Never travel down an incline backwards. This may result in personal injury. WARNING! Even though your power chair is capable of climbing slopes greater than those illustrated Jet 7 I I . S A F E T Y...
  • Page 8 ! Avoid tall grass that can entangle the running gear. ! Avoid loosely packed gravel and sand. ! If you feel unsure about a driving surface, avoid that surface. I I . S A F E T Y www.pridemobility.com Jet 7...
  • Page 9 Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator. WARNING! Never use your power chair to negotiate steps or escalators. You may cause injury to yourself and to others and/or damage your power chair. Jet 7 I I . S A F E T Y Figure 3.
  • Page 10 Your power chair was not designed with such use in mind and any damage or injury incurred from such use is not the responsibility of Pride. I I . S A F E T Y Figure 4. Ideal Transfer Position www.pridemobility.com Jet 7...
  • Page 11 WARNING! Prevent personal injury! Keep your hands away from the tires when driving. Be aware that loose fitting clothing can become caught in drive tires. Jet 7 I I . S A F E T Y...
  • Page 12 Removable Parts WARNING! Do not attempt to lift or move a power chair by any of its removable parts. Personal injury and/or damage to the power chair may result. I I . S A F E T Y www.pridemobility.com Jet 7...
  • Page 13 NOTE: For further information on EMI/RFI, go to the Resource Center on www.pridemobility.com. If unintended motion or brake release occurs, turn your power chair off as soon as it is safe to do so. Call Pride at 800-424-8205 to report the incident. Jet 7 I I . S A F E T Y...

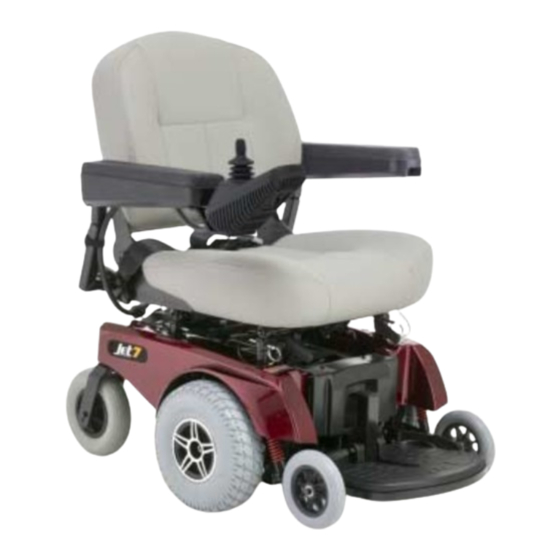

  • Page 14 See figures 5, 6, and 7. SEAT ASSEMBLY POWER BASE ASSEMBLY CASTER WHEEL BODY SHROUD Figure 5. The Jet 7 P O W E R SEATBACK ARMRESTS DRIVE WHEEL www.pridemobility.com C H A I R...
  • Page 15 I I I . Y O U R MANUAL FREEWHEEL LEVER Figure 6. Jet 7 Power Base Jet 7 P O W E R REAR TRAPEZE BAR FRONT TRAPEZE BAR MOTOR CONNECTOR MOTOR CONNECTOR MANUAL FREEWHEEL LEVER www.pridemobility.com C H A I R...
  • Page 16 ²Due to manufacturing tolerances and continued product improvement, this specification can be subject to variance of (+ or – ) 3%. ³AGM or Gel-Cell type recommended. NOTE: All specifications subject to change without notice. P O W E R C H A I R Specifications www.pridemobility.com Jet 7...
  • Page 17 WARNING! Failure to properly align the connectors can result in damage to the controller, the charger, and the connectors. CHARGER INHIBIT CONNECTOR Figure 7. Electronics Tray Jet 7 P O W E R CONTROLLER CONNECTOR AMMETER www.pridemobility.com C H A I R...
  • Page 18 NOTE: If a lever is difficult to move in either direction, rock your power chair back and forth slightly. The lever should then move to the desired position. MANUAL FREEWHEEL LEVERS Figure 8. Drive Mode P O W E R C H A I R Figure 9. Freewheel Mode www.pridemobility.com MANUAL FREEWHEEL LEVERS Jet 7...
  • Page 19 7. Secure the controller cable to the armrest receiver with one or more wire ties. REAR EXTRUSION FRONT TRAPEZE BAR FRONT EXTRUSION Figure 10. Universal Mounting System Jet 7 I V . A S S E M B L Y REAR TRAPEZE BAR Figure 11.
  • Page 20 See III. “Your Power Chair.” SEAT BATTERY WELL FRAME RIGHT POWER BASE FRAME ASSEMBLY FRONT FRAME Figure 12. The Jet 7 Component Assemblies D I S A S S E M B L Y FOOTREST www.pridemobility.com BATTERY BOXES TRAPEZE BARS...
  • Page 21 18. Carefully let the frame assembly tilt to a resting position. NOTE: Follow the disassembly procedure in the reverse order to assemble the unit. Jet 7 D I S A S S E M B L Y Figure 13. Seat Latch Safety SEAT POST Figure 14.
  • Page 22 ASSEMBLY HANDLE Figure 19. Removing Front Frame D I S A S S E M B L Y Figure 16. Removing Battery Boxes Figure 18. Battery Well Frame www.pridemobility.com LOCATING PINS LOCATING PIN Figure 20. Front Frame Assembly Jet 7...
  • Page 23 WARNING! Make sure the seat latch safety is flipped down before using your power chair. 10. Connect the controller to the electronics tray. Jet 7 A D J U S T M E N T S TRAPEZE BARS SEAT POST Figure 21.
  • Page 24 A D J U S T M E N T S Figure 22. Seat Mounting Holes JAM NUT ARMREST HEIGHT ADJUSTING SETSCREWS SEATBACK ANGLE ADJUSTMENT SCREW ARMREST KNOB Figure 23. Seatback Angle Adjustment www.pridemobility.com ARMREST ANGLE ADJUSTMENT SCREW Jet 7...
  • Page 25 2. Turn the setscrew clockwise to lower the front of the foot platform. 3. Turn the setscrew counterclockwise to raise the front of the foot platform. Jet 7 A D J U S T M E N T S Figure 24. Underside of Armrest MOUNTING HARDWARE Figure 25.
  • Page 26 12. Plug the left and right motor connectors into their receptacles. 13. Reinstall the seat. 14. Connect the controller to the electronics tray. A D J U S T M E N T S ANTI-TIP ADJUSTMENT NUT Figure 27 Anti-tip Wheel adjustment www.pridemobility.com Jet 7...
  • Page 27 Unless the joystick is damaged, this action should stop your power chair. Keypad The keypad is located in front of the joystick. It contains keys necessary to operate your power chair. See figure 29. Jet 7 O P E R A T I O N Figure 28. VSI Controller...
  • Page 28 Actuator keys and actuator lights are used for optional equipment such as power elevating seats or power elevating leg rests. For specific operation of the actuator keys and actuator lights, contact your authorized Pride Provider. O P E R A T I O N Figure 29. VSI Controller Keypad www.pridemobility.com Jet 7...
  • Page 29 WARNING! Failure to properly align the connectors can result in damage to the controller, the charger, and the connectors. Jet 7 O P E R A T I O N www.pridemobility.com...
  • Page 30 Make sure the controller connections are secure. An excessive voltage has been applied to the controller. This is usually caused by a poor battery connection. Check the battery connections. O P E R A T I O N www.pridemobility.com Jet 7...
  • Page 31 WARNING! Prevent injury and/or equipment damage! Do not allow unsupervised children to play near the power chair while the batteries are charging. Jet 7 A N D C H A R G I N G...
  • Page 32 The charger supplied with your power chair will not be able to charge your batteries after the batteries have been discharged to nearly zero voltage. If this happens, call your authorized Pride Provider for assistance. A N D C H A R G I N G www.pridemobility.com Jet 7...
  • Page 33 Deep-cycle batteries are specifically designed to provide power, drain down their charge, and then accept a relatively quick recharge. Deep-cycle batteries should be charged as often as possible. They do not have a “memory” like nickel-cadmium batteries. Jet 7 A N D C H A R G I N G...
  • Page 34 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container and ship the batteries in separate boxes. www.pridemobility.com Jet 7...

  • Page 35: Care And Maintenance

    C A R E CARE AND MAINTENANCE Your Jet 7 is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from your authorized Pride Provider. Preventive maintenance is very important.
  • Page 36 See VIII. “Batteries and Charging.” WARNING! If you fail to store the unit properly, the frame can rust and the electronics can be damaged. A N D M A I N T E N A N C E www.pridemobility.com Jet 7...
  • Page 37 3. If you are changing a pneumatic tire, completely deflate it before removing the wheel. 4. Remove the drive wheel nut and washer from the axle. See figure 30. Jet 7 A N D M A I N T E N A N C E...
  • Page 38 15. Place the rear battery box back into the battery well. 16. Place the front battery box back into the battery well. A N D M A I N T E N A N C E www.pridemobility.com Jet 7...
  • Page 39 Disconnect both batteries before load testing and follow the directions that come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair still does not power up, contact your authorized Pride Provider. Jet 7 www.pridemobility.com...
  • Page 40 Circumstances beyond the control of Pride Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products Corporation Repairs and/or modifications made to any part without specific consent from Pride...
  • Page 41 This warranty gives you specific rights, and you may also have other rights which vary from state to state. Please fill out and return the product registration card to Pride. This will aid Pride in providing the best possible technical and customer service. Jet 7 www.pridemobility.com...
  • Page 42 N O T E S www.pridemobility.com Jet 7...
  • Page 43 Quality Control - Model Jet 7 Thank you for making the Jet 7 your choice in power chairs. The following checkmarks indicate that we have thoroughly inspected and test driven your power chair. Pride keeps a more detailed report on file at the factory.
