INSTALLATION GUIDE
NI SPEEDY-33
2
1
1 Power Port for Standalone Mode
2 PC USB Port
3 Power LED
4 Reset Button
This installation guide describes how to install and configure the
NI SPEEDY-33 DSP device for use with a PC. Figure 1 depicts
the NI SPEEDY-33.

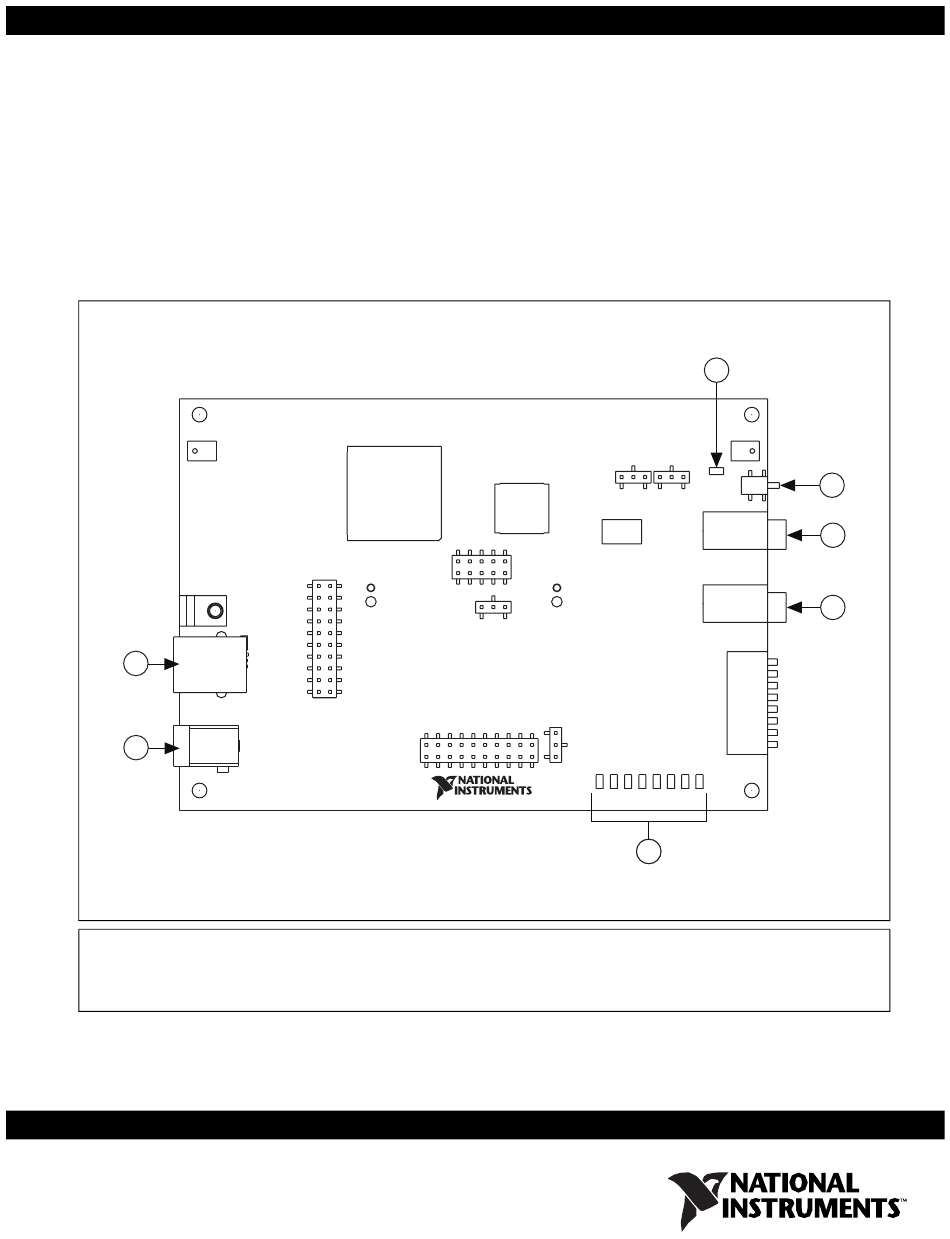

Figure 1. NI SPEEDY-33 DSP Device
15 7
5 Audio Stereo Input Port
6 Audio Stereo Output Port
7 Switch Input Port
8 Digital Output Port LEDs
3
4
5
6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NI SPEEDY-33
Summary of Contents for NI SPEEDY-33
- Page 1 INSTALLATION GUIDE NI SPEEDY-33 This installation guide describes how to install and configure the NI SPEEDY-33 DSP device for use with a PC. Figure 1 depicts the NI SPEEDY-33. 15 7 1 Power Port for Standalone Mode 5 Audio Stereo Input Port...
- Page 2 Never touch the exposed pins of connectors. Remove the device from the package and inspect the device for loose components or any other sign of damage. Notify NI if the device appears damaged in any way. Do not install a damaged device into the computer.
-
Page 3: Step 3. Connect The Hardware
PC USB port. Connect the other end of the USB cable to a USB port on the PC. The USB cable also serves as the NI SPEEDY-33 power supply. The green power LED on the device lights. © National Instruments Corporation... - Page 4 Windows recognizes any newly installed device and opens the Found New Hardware Wizard. Complete the following steps to connect the NI SPEEDY-33 with the NI SPEEDY-33 driver. If Windows fails to recognize new hardware, proceed to the Confirming Hardware Installation...
- Page 5 Windows begins scanning the hard drive for the files it needs. Note On non-English Windows operating systems, it can take up to five minutes for the Hardware Wizard to locate the necessary files. © National Instruments Corporation NI SPEEDY-33 Installation Guide...
- Page 6 A Hardware Installation alert might appear during the hardware scan. Click Note Continue Anyway. When Windows finishes detecting the required files, the following window opens. Click Finish. Your computer is now set up so that the software can communicate with the NI SPEEDY-33. NI SPEEDY-33 Installation Guide ni.com...
-
Page 7: Windows Vista
Click the Device Manager button. Expand the Universal Serial Bus controllers section of the tree. Verify that the NI SPEEDY-33 icon is listed with no Windows alert symbols displayed, as shown in the following figure. If an alert symbol is displayed on top of the device icon, proceed to step 6. -
Page 8: Step 4. Launch The Software
Verify that the NI SPEEDY-33 icon is listed with no Windows alert symbols displayed, as shown in the following figure. If an alert symbol is displayed on top of the device icon, proceed to step 5. (Optional) If the device icon has an alert symbol, you must update the NI SPEEDY-33 driver. - Page 9 Run the VI by clicking the Run button, shown at left, on the LabVIEW front panel menu bar. The VI front panel displays a blinking LED and a waveform. The NI SPEEDY-33 digital output port LED #1 blinks in time with the © National Instruments Corporation NI SPEEDY-33 Installation Guide...
- Page 10 Driver. Click the STOP button on the front panel to stop the VI. You can also test the NI SPEEDY-33 by right-clicking the SPEEDY-33 target in the Project Explorer window and selecting Basic Test from the shortcut menu. Click the Start button in the Basic Test dialog box and read the information on the screen.
-
Page 11: Where To Go From Here
The NI SPEEDY-33 User Manual contains information about the features and functions of the digital signal processor, components, and interface of the NI SPEEDY-33 DSP device. You can find this document on the NI SPEEDY-33 User Documentation CD. All NI user documentation is available on the National Instruments Web site at ni.com/manuals... - Page 12 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or...
