- Page 1 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
-
Page 2: Required Components

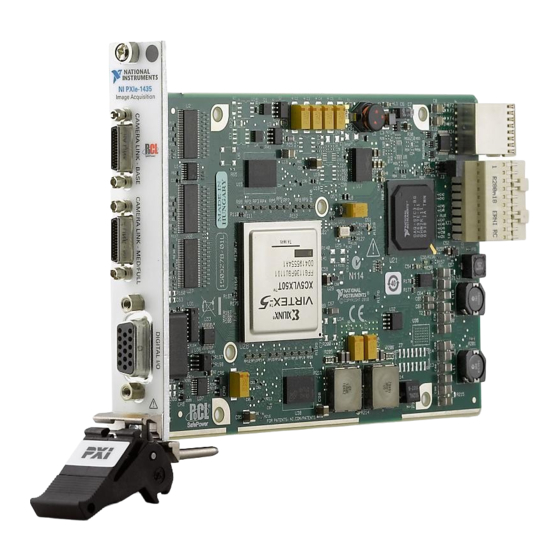

NI PXIe-1435 User Guide and Specifications The NI PXIe-1435 (NI 1435) is a PXI Express (PXIe) image acquisition device that supports Base, Medium, Full, and Extended Full configuration Camera Link cameras and supports Power over Camera Link (PoCL). This document describes how to install and configure the necessary hardware and software components to begin using the NI 1435. -
Page 3: Safety Information
Measurement Categories as defined in electrical safety standard IEC 61010-1. Working voltage is the highest rms value of an AC or DC voltage that can occur across any particular insulation. NI PXIe-1435 User Guide ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 4 Install Application Software and Driver Before installing the NI 1435, you must install the application software and device driver. National Instruments provides two options for developing machine vision applications. •...
- Page 5 PXI Express chassis or device before removing equipment covers or connecting or disconnecting signal wires. Identify a supported PXI Express slot in the chassis. The NI 1435 is compatible with PXI Express slots, PXI Express Hybrid slots, and PXIe System Timing slots. Figure 1 shows the symbols that indicate the slot types for a PXI Express chassis.
- Page 6 Connect the Camera Link cable(s) to the Camera Link camera. Refer to the camera manufacturer documentation for specific instructions about how to connect the cable to your camera. Connect the Camera Link cable to the Camera Link connector on the NI 1435 front panel. 10. Plug in and power on the PXI Express chassis.
-
Page 7: Signal Connections
Signal Connections This section describes the connectors on the NI 1435. The following figure shows the connectors. NI PXIe-1435 Image Acquisition Base Camera Link SDR Connector Digital I/O Connector Medium/Full Camera Link SDR Connector Figure 2. NI 1435 Connectors NI PXIe-1435 User Guide ni.com... - Page 8 SDR Connectors Figure 3 shows the NI 1435 Base configuration 26-pin SDR connector assignments. Refer to Table 1 for a description of the signals. DGND DGND X(0)– X(0)+ X(1)– X(1)+ X(2)– X(2)+ XCLK– XCLK+ X(3)– X(3)+ SerTC+ SerTC– SerTFG– SerTFG+ CC(1)–...
- Page 9 Figure 4 shows the NI 1435 Medium/Full configuration 26-pin SDR connector assignments. Refer to Table 2 for a description of the signals. DGND DGND Y(0)– Y(0)+ Y(1)– Y(1)+ Y(2)– Y(2)+ YCLK– YCLK+ Y(3)– Y(3)+ 100 Ω differential termination with pin 7 100 Ω...
- Page 10 • NI 17xx 5m Pigtail breakout cable (part number 197818-05) • NI 17xx Unshielded Screw Terminal Breakout with 2M Cable (part number 780261-01) © National Instruments Corporation NI PXIe-1435 User Guide Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 11: Hardware Block Diagram
Pixel Clock Figure 5. NI 1435 Block Diagram Specifications This section lists specifications for the NI PXIe-1435. These specifications are typical at 25 °C, unless otherwise stated. Features Supported camera standard........Camera Link 1.2 Supported configurations ........Base, Medium, Full, Extended Full Camera connectors..........Two 26-pin SDR... -
Page 12: Trigger Characteristics
Single-ended input threshold ......TTL compatible Input high voltage ........2.0 V Input low voltage ........0.8 V Maximum quadrature count rate......5 MHz © National Instruments Corporation NI PXIe-1435 User Guide Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 13: Serial Interface
This value corresponds to the serialized Camera Link cable transmission rate of 140 to 595 MHz. NI PXIe-1435 User Guide ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 14: Electromagnetic Compatibility
NI recognizes that eliminating certain hazardous substances from our products is beneficial to the environment and to NI customers. For additional environmental information, refer to the NI and the Environment Web page at ni.com/ environment. This page contains the environmental regulations and directives with which NI complies, as well as other environmental information not included in this document. -
Page 15: Where To Go From Here
Additional Resources for Vision Builder for Automated Inspection Users Refer to the NI Vision Builder for Automated Inspection Tutorial to learn how to perform basic machine vision techniques using Vision Builder AI. You can access the NI Vision Builder for Automated Inspection Tutorial and other Vision Builder AI documentation by selecting Start»All Programs»... -
Page 16: Where To Go For Support
For telephone support in the United States, create your service request at ni.com/support and follow the calling instructions or dial 512 795 8248. For telephone support outside the United States, visit the Worldwide Offices section of ni.com/niglobal to access the branch office Web sites, which provide up-to-date contact information, support phone numbers, email addresses, and current events. - Page 17 CVI, LabVIEW, National Instruments, NI, ni.com, the National Instruments corporate logo, and the Eagle logo are trademarks of National Instruments Corporation. Refer to the Trademark Information at ni.com/trademarks for other National Instruments trademarks. The mark LabWindows is used under a license from Microsoft Corporation. Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
- Page 18 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
