USER GUIDE
NI TBX-68
Unshielded 68-Pin Screw Terminal Accessory

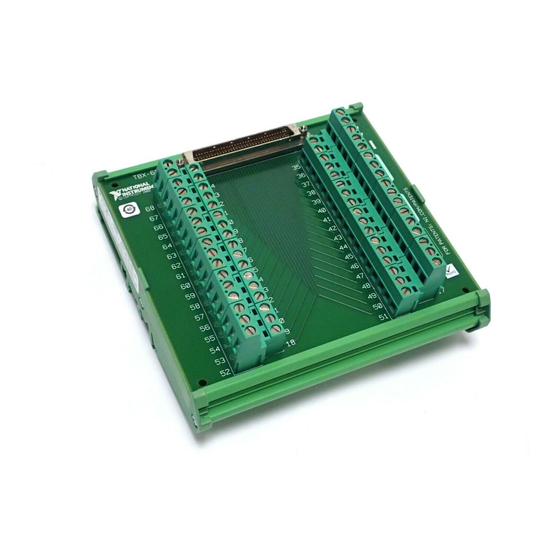

The NI TBX-68, shown in Figure 1, is an unshielded I/O accessory with 68 screw terminals for
easy signal connection to a National Instruments 68-pin DAQ device.
The TBX-68 accessory is excluded from the scope of the low-voltage
Note
directive (LVD) and electromagnetic compatibility (EMC) directive. The
CE marking indicates compliance with the RoHS directive 2011/65/EU.
1
1
Attached DIN Rail Clip
If the accessory is missing any of the components in Figure 1, contact NI.
Note
Figure 1. TBX-68 Parts Locator Diagram
2
Screw Terminals
2
3
3
2
68-Pin I/O Connector
