4.2 Plug-in 52-way 5mm pitch terminal block

4.2.1 Connector pinout

Every MTX-DIN modem has a 52-way terminal block where all the interface signals are available for

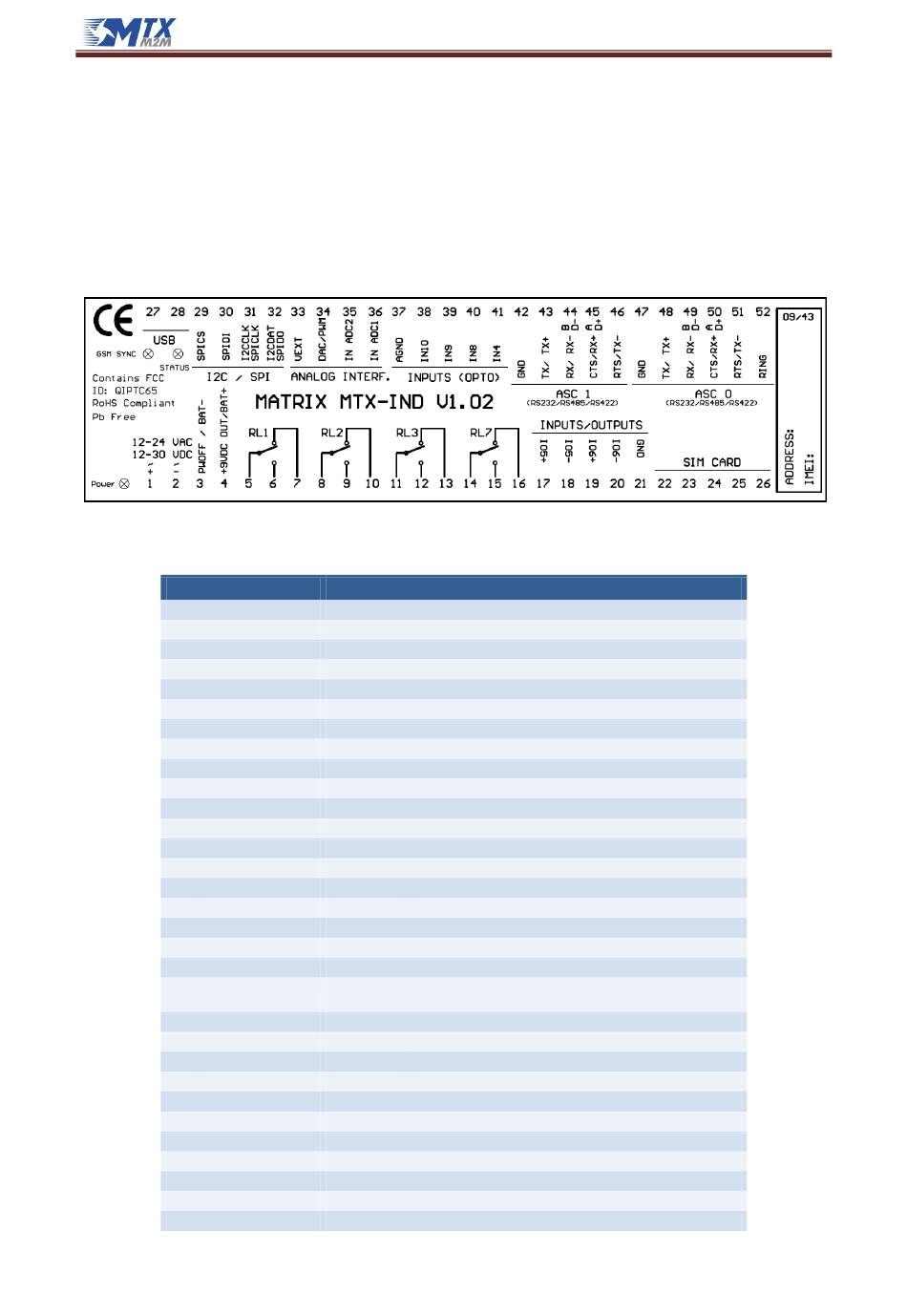

use by the user. There is a label in the device which explains the pinout of this connector, as you can
see in the following figure. Use it as a reference for the following sections
Pin Signal
1 VAC IN
2 VAC IN
3 POWER OFF
4 VDC OUT
5 RL1COM
6 RL1NO
7 RL1NC
8 RL2COM
9 RL2NO
10 RL2NC
11 RL3COM
12 RL3NO
13 RL3NC
14 RL7COM
15 RL7NO
16 RL7NC
17 IN5/OUT5+
18 IN5/OUT5 -
19 IN6/OUT6+
20 IN6/OUT6-
21 GND
29 SPICS
30 SPIDI
31 I2CCLK/SPICLK
32 I2CDAT/SPIDO
33 Vext
34 DAC_OUT
35 ADC2_IN
36 ADC1_IN
37 AGND
38 IN10
www.mtx-terminals.com
Direction Description
Input Power In 90-264VAC
Input Power In 90-264VAC
Input Shutdown signal input
Output 9V (max 500mA)
Relay 1 common contact
Relay 1 normally open contact
Relay 1 normally closed contact
Relay 2 common contact
Relay 2 normally open contact
Relay 2 normally closed contact
Relay 3 common contact
Relay 3 normally open contact
Relay 3 normally closed contact
Relay 7 common contact
Relay 7 normally open contact
Relay 7 normally closed contact
I/O Optocoupled IO positive signal (HW selectable)
I/O Optocoupled IO negative signal (HW selectable)
I/O Optocoupled IO positive signal (HW selectable)
I/O Optocoupled IO negative signal (HW selectable)
Ground connection
Output SPI chip select line
Input SPI data in line
Output I2C clock signal / SPI clock signal
Output I2C data line / SPI data out line
Output Voltage reference (3V, 50mA max.)
Output Analog output
Input Analog input 1
Input Analog input 2
Analog Ground connection
Input Optocoupled input 10
