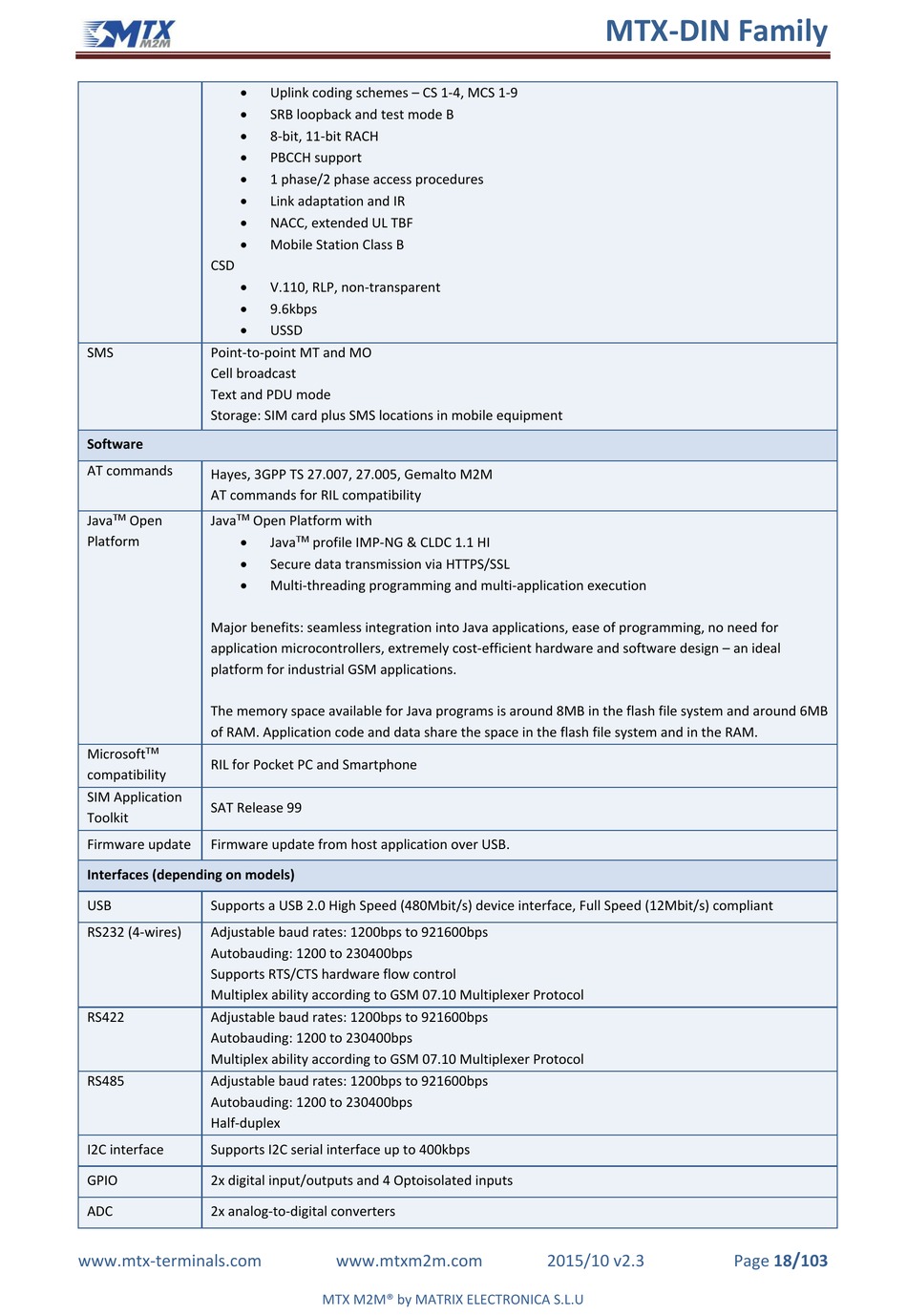

MTX M2M MTX-DIN Series User Manual page 18









CSD



SMS Point-to-point MT and MO
Cell broadcast
Text and PDU mode
Storage: SIM card plus SMS locations in mobile equipment
Software
AT commands
Hayes, 3GPP TS 27.007, 27.005, Gemalto M2M
AT commands for RIL compatibility
TM TM
Java Open Java

Platform


Major benefits: seamless integration into Java applications, ease of programming, no need for
application microcontrollers, extremely cost-efficient hardware and software design – an ideal
platform for industrial GSM applications.
The memory space available for Java programs is around 8MB in the flash file system and around 6MB
of RAM. Application code and data share the space in the flash file system and in the RAM.
TM
Microsoft
RIL for Pocket PC and Smartphone
compatibility
SIM Application
SAT Release 99
Toolkit
Firmware update Firmware update from host application over USB.
Interfaces (depending on models)
USB Supports a USB 2.0 High Speed (480Mbit/s) device interface, Full Speed (12Mbit/s) compliant
RS232 (4-wires) Adjustable baud rates: 1200bps to 921600bps
Autobauding: 1200 to 230400bps
Supports RTS/CTS hardware flow control
Multiplex ability according to GSM 07.10 Multiplexer Protocol
RS422 Adjustable baud rates: 1200bps to 921600bps
Autobauding: 1200 to 230400bps
Multiplex ability according to GSM 07.10 Multiplexer Protocol
RS485 Adjustable baud rates: 1200bps to 921600bps
Autobauding: 1200 to 230400bps
Half-duplex
I2C interface Supports I2C serial interface up to 400kbps
GPIO 2x digital input/outputs and 4 Optoisolated inputs
ADC 2x analog-to-digital converters
www.mtx-terminals.com
Uplink coding schemes – CS 1-4, MCS 1-9
SRB loopback and test mode B
8-bit, 11-bit RACH
PBCCH support
1 phase/2 phase access procedures
Link adaptation and IR
NACC, extended UL TBF
Mobile Station Class B
V.110, RLP, non-transparent
9.6kbps
USSD
Open Platform with
TM
Java profile IMP-NG & CLDC 1.1 HI
Secure data transmission via HTTPS/SSL
Multi-threading programming and multi-application execution
