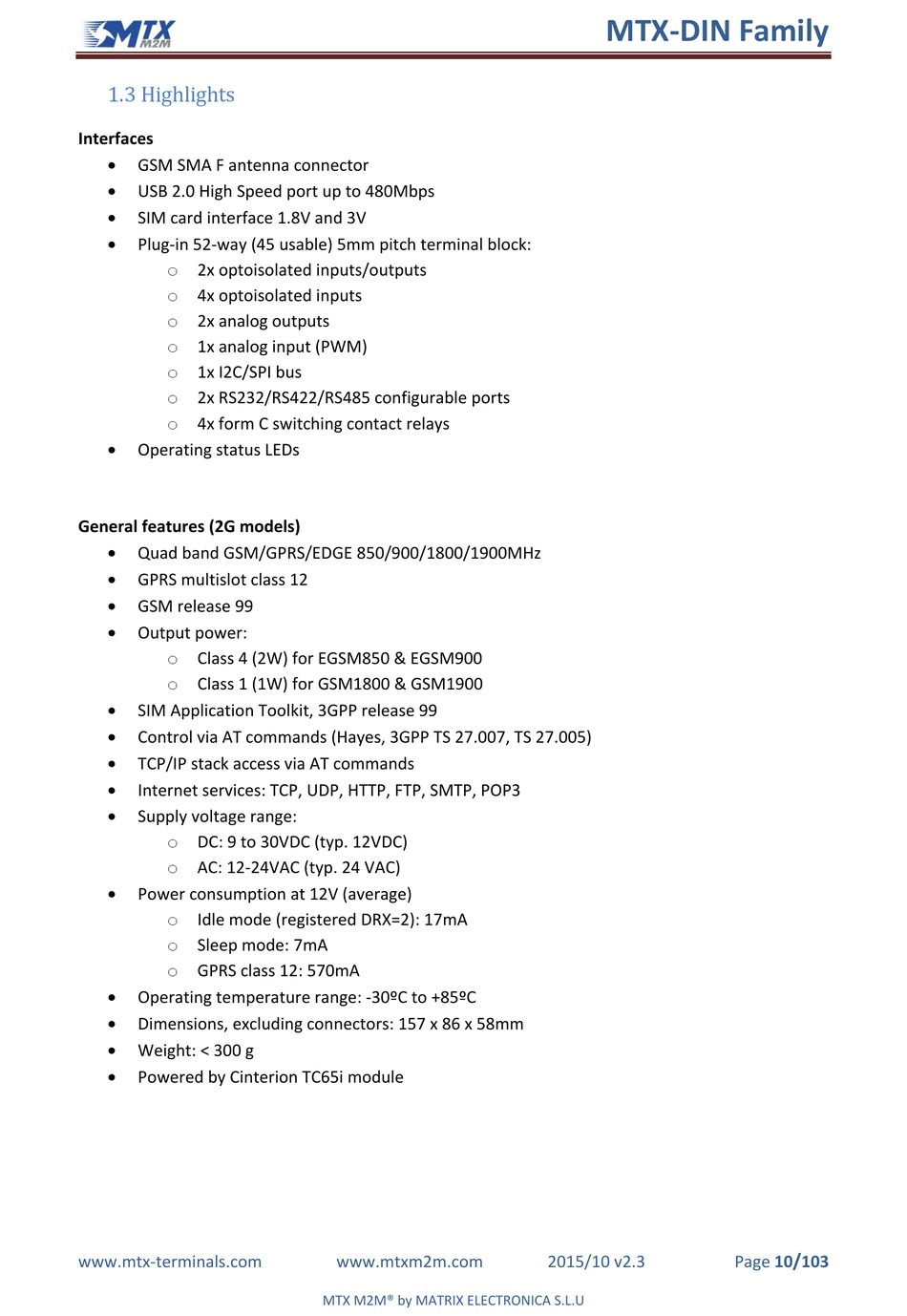

1.3 Highlights

Interfaces

GSM SMA F antenna connector

USB 2.0 High Speed port up to 480Mbps

SIM card interface 1.8V and 3V

Plug-in 52-way (45 usable) 5mm pitch terminal block:
o 2x optoisolated inputs/outputs
o 4x optoisolated inputs
o 2x analog outputs
o 1x analog input (PWM)
o 1x I2C/SPI bus
o 2x RS232/RS422/RS485 configurable ports
o 4x form C switching contact relays

Operating status LEDs
General features (2G models)

Quad band GSM/GPRS/EDGE 850/900/1800/1900MHz

GPRS multislot class 12

GSM release 99

Output power:
o Class 4 (2W) for EGSM850 & EGSM900
o Class 1 (1W) for GSM1800 & GSM1900

SIM Application Toolkit, 3GPP release 99

Control via AT commands (Hayes, 3GPP TS 27.007, TS 27.005)

TCP/IP stack access via AT commands

Internet services: TCP, UDP, HTTP, FTP, SMTP, POP3

Supply voltage range:
o DC: 9 to 30VDC (typ. 12VDC)
o AC: 12-24VAC (typ. 24 VAC)

Power consumption at 12V (average)
o Idle mode (registered DRX=2): 17mA
o Sleep mode: 7mA
o GPRS class 12: 570mA

Operating temperature range: -30ºC to +85ºC

Dimensions, excluding connectors: 157 x 86 x 58mm

Weight: < 300 g

Powered by Cinterion TC65i module
