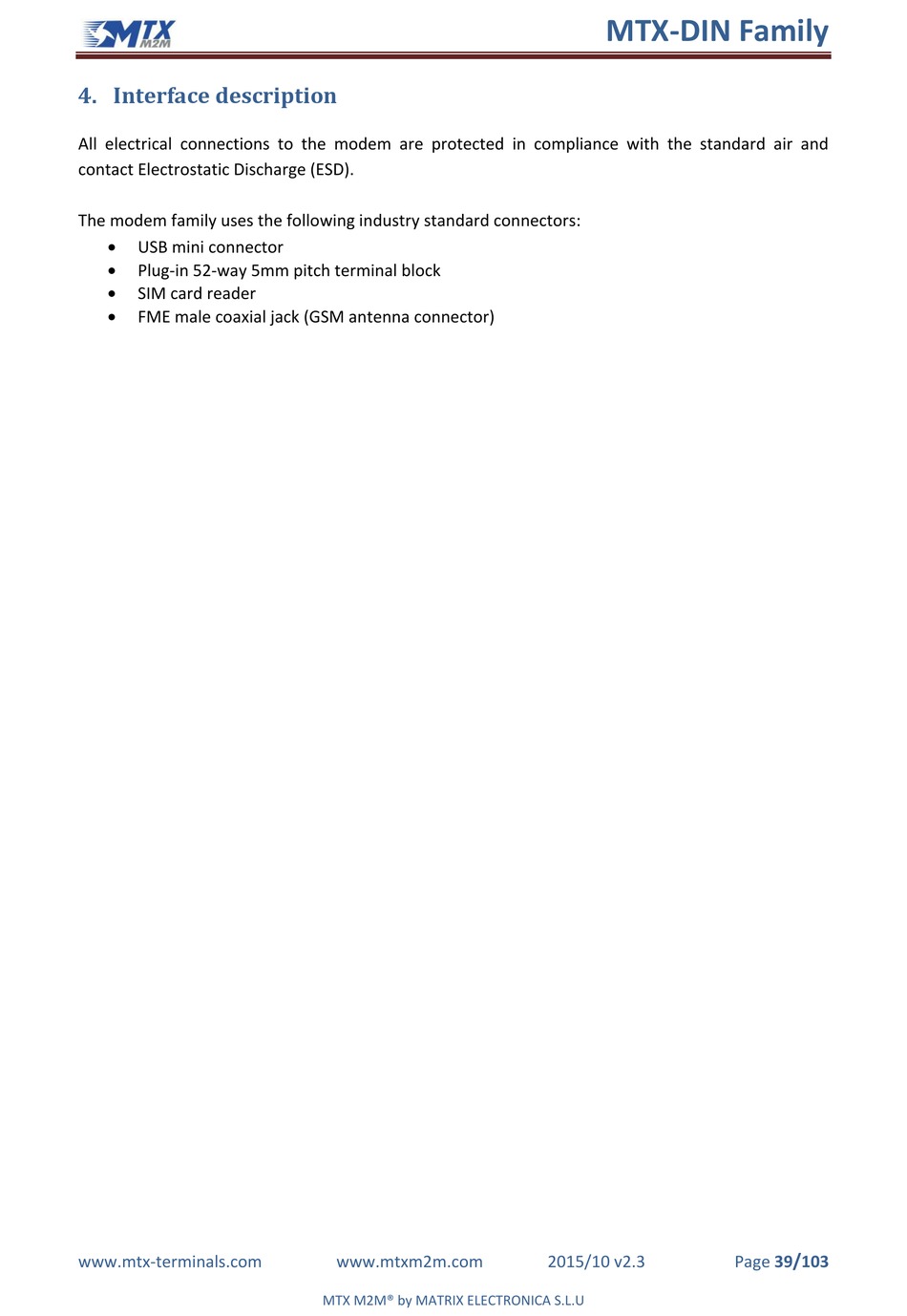

4. Interface description

All electrical connections to the modem are protected in compliance with the standard air and
contact Electrostatic Discharge (ESD).
The modem family uses the following industry standard connectors:

USB mini connector

Plug-in 52-way 5mm pitch terminal block

SIM card reader

FME male coaxial jack (GSM antenna connector)
