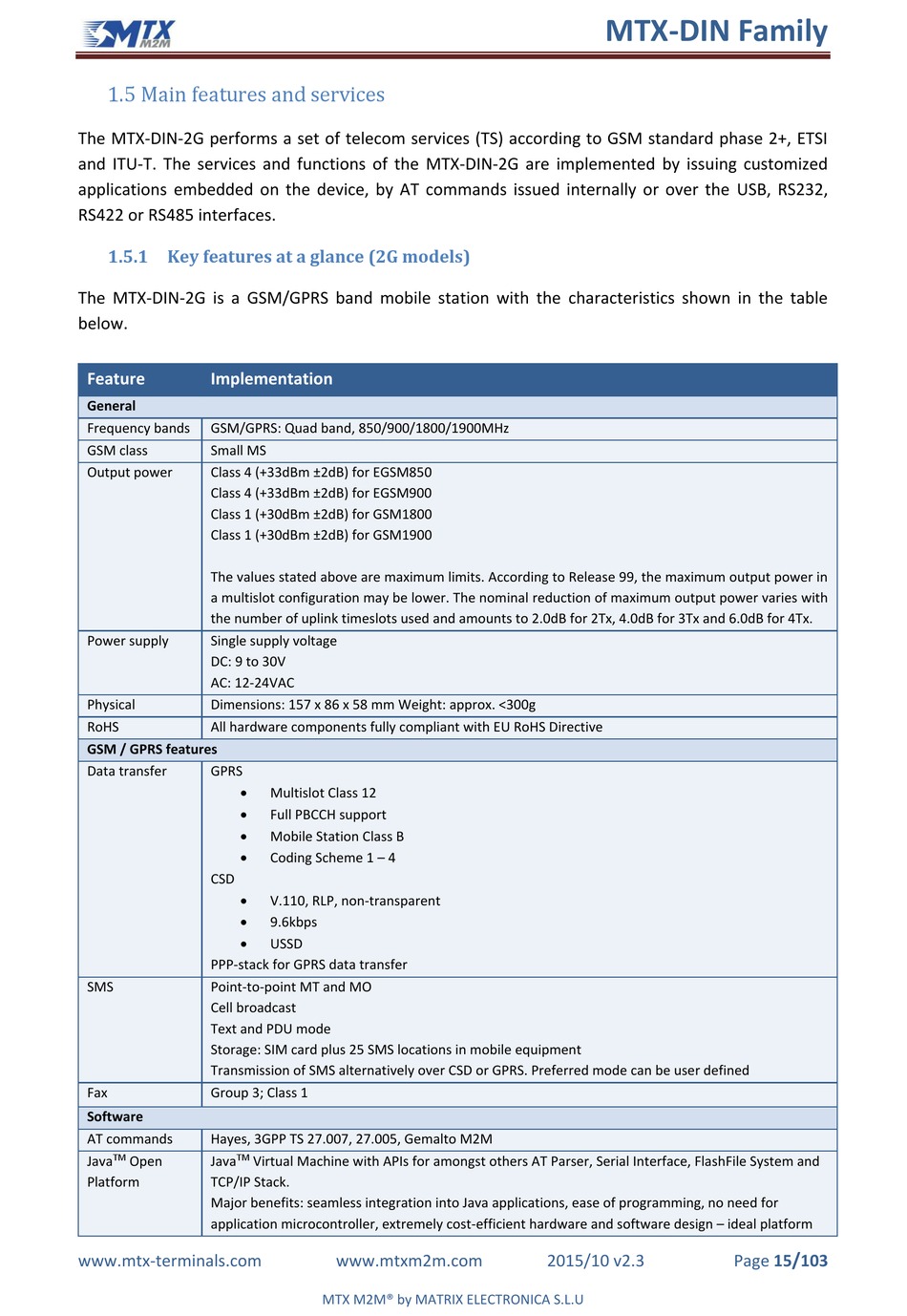

1.5 Main features and services

The MTX-DIN-2G performs a set of telecom services (TS) according to GSM standard phase 2+, ETSI
and ITU-T. The services and functions of the MTX-DIN-2G are implemented by issuing customized
applications embedded on the device, by AT commands issued internally or over the USB, RS232,
RS422 or RS485 interfaces.

1.5.1 Key features at a glance (2G models)

The MTX-DIN-2G is a GSM/GPRS band mobile station with the characteristics shown in the table
below.
Feature Implementation
General
Frequency bands GSM/GPRS: Quad band, 850/900/1800/1900MHz
GSM class Small MS
Output power Class 4 (+33dBm ±2dB) for EGSM850
Class 4 (+33dBm ±2dB) for EGSM900
Class 1 (+30dBm ±2dB) for GSM1800
Class 1 (+30dBm ±2dB) for GSM1900
The values stated above are maximum limits. According to Release 99, the maximum output power in
a multislot configuration may be lower. The nominal reduction of maximum output power varies with
the number of uplink timeslots used and amounts to 2.0dB for 2Tx, 4.0dB for 3Tx and 6.0dB for 4Tx.
Power supply Single supply voltage
DC: 9 to 30V
AC: 12-24VAC
Physical Dimensions: 157 x 86 x 58 mm Weight: approx. <300g
RoHS All hardware components fully compliant with EU RoHS Directive
GSM / GPRS features
Data transfer GPRS




CSD



PPP-stack for GPRS data transfer
SMS Point-to-point MT and MO
Cell broadcast
Text and PDU mode
Storage: SIM card plus 25 SMS locations in mobile equipment
Transmission of SMS alternatively over CSD or GPRS. Preferred mode can be user defined
Fax Group 3; Class 1
Software
AT commands Hayes, 3GPP TS 27.007, 27.005, Gemalto M2M
TM TM
Java Open Java
Platform TCP/IP Stack.
Major benefits: seamless integration into Java applications, ease of programming, no need for
application microcontroller, extremely cost-efficient hardware and software design – ideal platform
www.mtx-terminals.com
Multislot Class 12
Full PBCCH support
Mobile Station Class B
Coding Scheme 1 – 4
V.110, RLP, non-transparent
9.6kbps
USSD
Virtual Machine with APIs for amongst others AT Parser, Serial Interface, FlashFile System and
