Berkshire

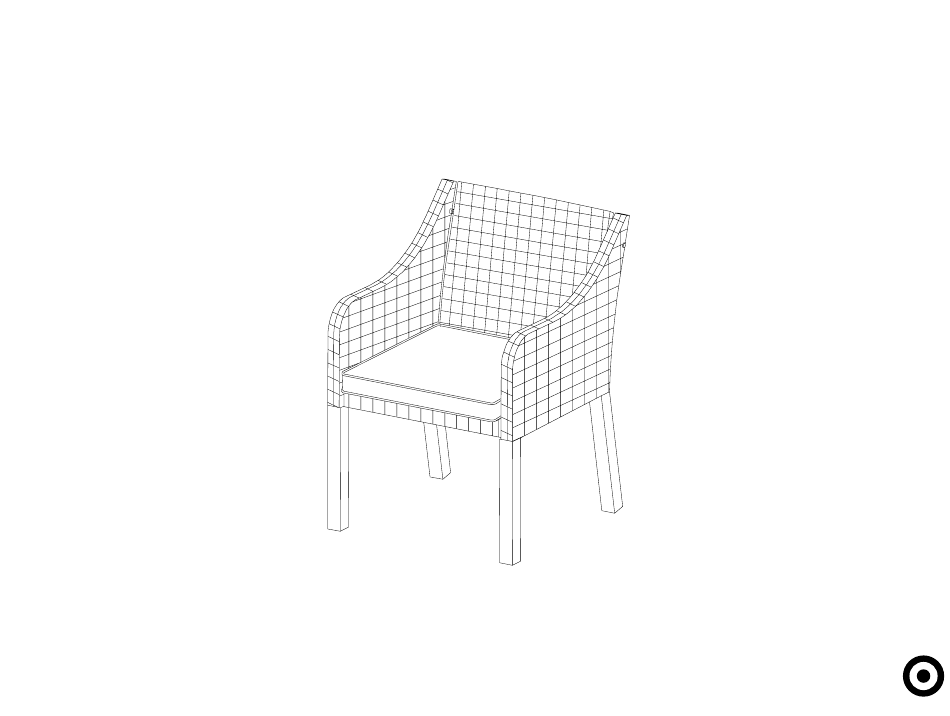

4pk wicker dining chair
style # FRS81033A
dpci # 009004042
>>assembly instructions
TM

Advertisement

loading
Need help?

Need help?

Do you have a question about the Berkshire FRS81033A and is the answer not in the manual?

Questions and answers

Summary of Contents for Target Berkshire FRS81033A

  • Page 1 Berkshire 4pk wicker dining chair style # FRS81033A dpci # 009004042 >>assembly instructions...
  • Page 2: Important Warning

    Congratulations on your latest Target purchase. Now what? Don't start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your patio in no time.
  • Page 3: Warranty

    This Chair comes with a one year limited warranty against original manufacture defects. If you experience trouble with your chair, please call the customer service number below. Target Corporation Toll Free at: 855-MYTGTHOME (855-698-4846) during 7am - 7pm CST M-F, and 8am - 5pm CST Saturday.
  • Page 4 table of contents introduction hardware parts list assembly 7-11 QUESTIONS? Please call 855-MYTGTHOME (855-698-4846) parts and service. For faster service, have th e style number and DPCI number r eady when calling.
  • Page 5 hardware (Part H)×1 (Part G)×8 (Part E)×8 (Part F)×20 allen wrench M6*60mm bolt with washer M6*25mm bolt with washer M6*45mm bolt with washer ATTENTION: THE HARDWARE KIT IS FOR 4 CHAIRS...
  • Page 6: Description Quantity

    ITEM DESCRIPTION QUANTITY right armrest left armrest seat frame back frame...
  • Page 7 step 01: (Part E)×1 (Part H)×1 (Part F)×2 allen wrench M6*25mm bolt with washer M6*45mm bolt with washer ATTENTION: To avoid damage to your new patio furniture, please use either the carton or another soft surface such as carpet as a working surface to prevent product damage during assembly.
  • Page 8 step 02: (Part F)×1 (Part H)×1 M6*45mm bolt with washer allen wrench 1. Attach the back frame (D) to the seat frame (C) by lining up bolt holes on the back frame (D) with corresponding bolt holes on the seat frame (C). 2.
  • Page 9 step 03: (Part F)×2 (Part E)×1 (Part H)×1 M6*25mm bolt with washer M6*45mm bolt with washer allen wrench 1. Attach the right armrest (A) to the seat frame (C) by lining up bolt holes on the seat frame (C) with corresponding bolt holes on the right armrest (A). 2.
  • Page 10 step 04: (Part G)×2 (Part H)×1 M6*60mm bolt with washer allen wrench 1. Line up the bolt holes on the back frame (D) with the corresponding bolt holes on the right armrest (A) and left armrest (B). 2. Secure with M6*60mm bolt with washer (G) using allen wrench (H). 3.
  • Page 11 step 05: 1. Tighten all the bolts. 2. Turn the chair to upright position onto a flat level surface. Put the cushion on the chair. You are now ready to enjoy your new chair.
  • Page 13 2020 Target. The Bullseye Design is a trademark of Target Brands Inc. All rights reserved.
