INSTALLER / CONSUMER
SAFETY INFORMATION
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND USING
APPLIANCE.
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL
INJURY OR LOSS OF LIFE.
— Do not store or use gasoline
or other flammable vapors and
liquids in the vicinity of this or
any other appliance.
— WHAT TO DO IF YOU SMELL
GAS:
•
Do not try to light any appliance.
•
Do not touch any electric switch; do
not use any phone in your building.
•
Immediately call your gas supplier
from your neighbor's phone. Follow
the gas supplier's instructions.
•
If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer,
service agency or the gas
supplier.
This appliance may be installed in an
after market permanently located
manufactured (mobile) home where not
prohibited by local codes.
This appliance is only for use with the
type of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases unless a certified kit is
used.

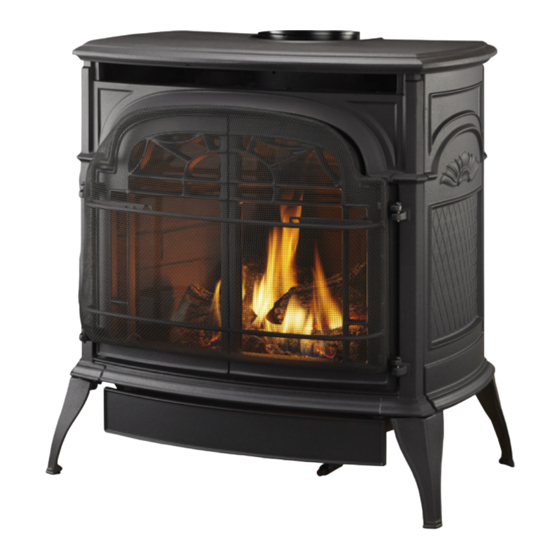

Stardance Direct Vent,
Rear Vent Gas Heater
Models:
SDDVR Series: SDDVRCB, SDDVREB, SDDVRMB,
SDDVRBS, SDDVRCH, SDDVRVG, SDDVRBD
SDDVRC Series: SDDVRCCB, SDDVRCEB,
SDDVRCMB, SDDVRCBS, SDDVRCCH, SDDVRCVG,
SDDVRCBD
Homeowner's Installation
and Operating Manual
�����
��������� �� �����
����
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
C E RT I F I E D
20012950 1/08 Rev. 5
