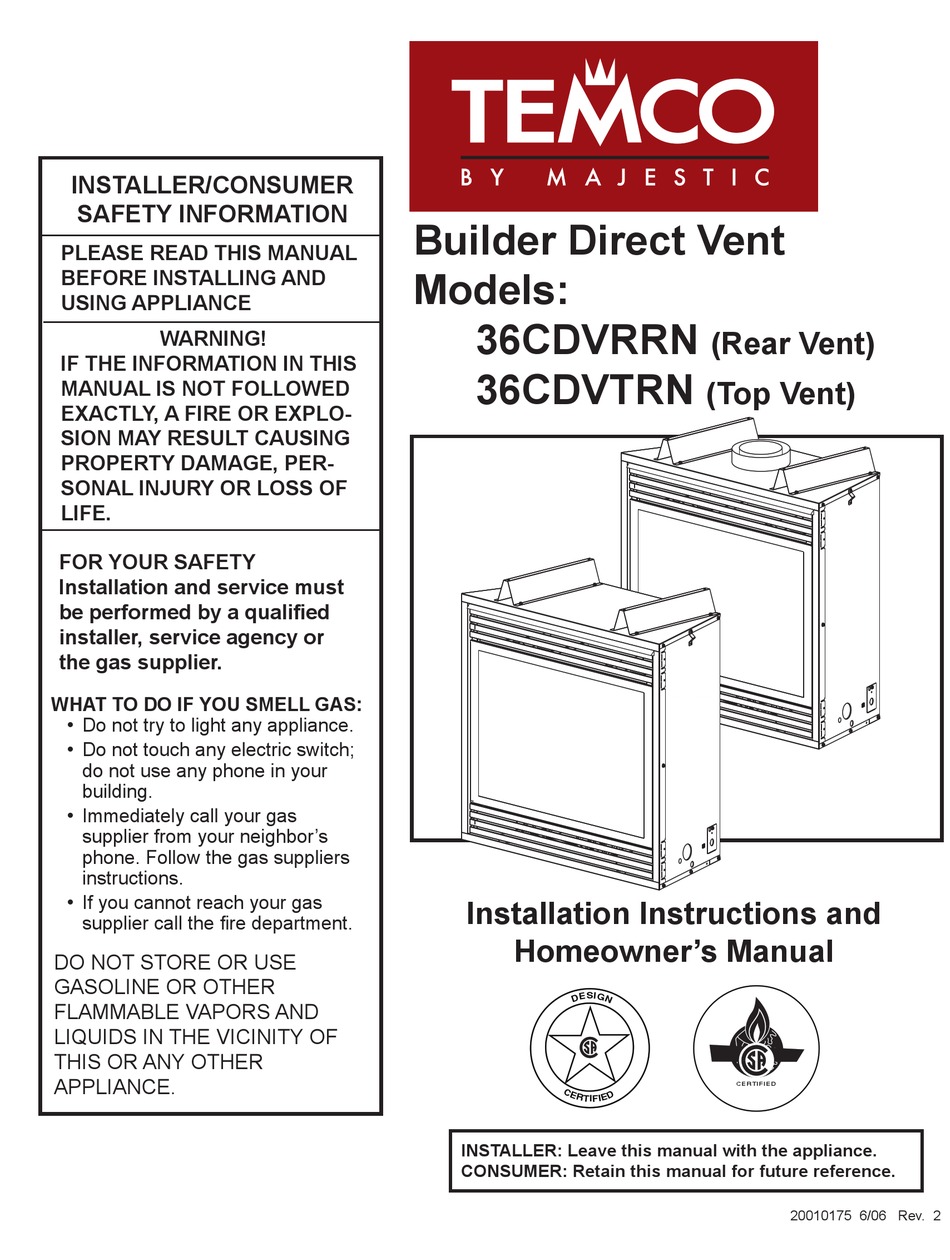

INSTALLER/CONSUMER
SAFETY INFORMATION
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND
USING APPLIANCE
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR EXPLO-
SION MAY RESULT CAUSING
PROPERTY DAMAGE, PER-
SONAL INJURY OR LOSS OF
LIFE.
FOR YOUR SAFETY
Installation and service must
be performed by a qualified
installer, service agency or
the gas supplier.
WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electric switch;
do not use any phone in your
building.
•
Immediately call your gas
supplier from your neighbor's
phone. Follow the gas suppliers
instructions.
•
If you cannot reach your gas
supplier call the fire department.
DO NOT STORE OR USE
GASOLINE OR OTHER
FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER
APPLIANCE.
Builder Direct Vent
Models:
36CDVRRN
36CDVTRN
Installation Instructions and
Homeowner's Manual
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
(Rear Vent)
(Top Vent)
�����
���� �����
�����
C E R T I F I E D
20010175 6/06 Rev. 2
Advertisement
Table of Contents
Related Manuals for Temco 36CDVRRN
Summary of Contents for Temco 36CDVRRN
- Page 1 DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. Builder Direct Vent Models: 36CDVRRN 36CDVTRN Installation Instructions and Homeowner’s Manual ����� ���� ����� ����� INSTALLER: Leave this manual with the appliance.
-
Page 2: Table Of Contents
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS Thank you and congratulations on your purchase of a CFM Corporation fireplace. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions fully may result in a possible fire hazard and will void the warranty. Installation &... -
Page 3: Installation & Operating Instructions
Installation & Operating Instructions This gas appliance should be installed by a qualified installer in accordance with local building codes and with current CSA-B149.1 Installation codes for Gas Burning Appliances and Equipment. For USA Installations follow local codes and/or the current National Fuel Gas Code. ANSI Z223.1/NFPA 54. -
Page 4: Fireplace Dimensions
Fireplace Dimensions - Rear Vent Gas Line Access Voltage Access Fig. 2 Fireplace specifications and framing dimensions. * Must be adhered to! Rough Opening Depth X - Rough Opening Width Rough Opening Height Ref. 36CDVR 35¹⁄₄” (895 mm) 35¹⁄₈” (892 mm) 32¹⁄₈”... -
Page 5: Framing Dimensions
Fireplace Dimensions - Top Vent Gas Line Access Voltage Access Fig. 2 Fireplace specifications and framing dimensions. 20010175 Rough Opening Depth X - Rough Opening Width Rough Opening Height Ref. 36CDVT 35¹⁄₄” (895 mm) 35³⁄₄” (883 mm) 32¹⁄₈” (816 mm) 33”... -
Page 6: Clearance To Combustibles
Clearance to Combustibles Top of Unit to Ceiling ... 36” (914 mm) Front of Unit to Combustibles ... 36” (914 mm) Appliance Top ... 0” (0 mm) Bottom ... 0” (0 mm) Side ... 0” (0 mm) Back ... 0” (0 mm) Venting Concentric sections of DV Vent Top, bottom &... -
Page 7: Framing And Finishing
flush with the edges of the fireplace. 36CDVR / 36CDVT ANSI Z21.88b-2003 / CSA 2.33b-2003 Vented Gas Fireplace Heaters FP1603 36CDVRRN Units: GFRL1J0 36CDVTRN Units: GFTN1J0 Gas Specifications Model Fuel 36CDVRRN 36CDVRRP* Prop... -
Page 8: Gas Inlet And Manifold Pressures
Gas Inlet and Manifold Pressures Natural Inlet Minimum 5.5” w.c. Inlet Maximum 14.0” w.c. Manifold Pressure 3.5” w.c. High Elevations Input ratings are shown in BTU per hour and are certified without deration for elevations up to 4,500 feet (1,370 m) above sea level. For elevations above 4,500 feet (1,370 m) in USA, installations must be in accordance with the cur- rent ANSI Z223.1/NFPA 54 and/or local codes hav-... -
Page 9: General Venting
Ensure that the power to the supply line has been disconnected before commenc- ing this procedure. The electrical junction box has been fitted standard on this model to allow for the easy connection of an op- tional fan kit. To connect the electric box to the house electrical sup- ply follow the steps below. -
Page 10: General Venting Information-Termination Location
General Venting Information - Termination Location VENT TERMINATION CFM145a A = Clearance above grade, veranda, porch, deck, or balcony B = Clearance to window or door that may be opened C = Clearance to permanently closed window D = Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2’... -
Page 11: General Information Assembling Vent Pipes
Termination Clearances Termination clearances for buildings with combustible and noncombustible exteriors. Inside Corner Combustible 6"(152mm) Noncombustible 2"(50mm) Balcony - with no side wall Combustible & Noncombustible 12"(305mm) Fig. 8 Termination clearances. General Information Assembling Vent Pipes Canadian Installations: Venting system must be installed in accordance with the current CSA-B149.1 installation code. -
Page 12: 36Cdvr Venting - How To Use The Vent Graph
Twist Lock Pipes When using CFM Corporation twist-lock pipe, it is not necessary to use sealant on the joints. The only areas of the venting system that need to be sealed with high temperature silicone sealant are the sliding joint of any telescopic vent section used in the system. - Page 13 13" (330 mm) Max. Top View Straight Venting ������ Fig. 12 Rear vent applications. ���� ���� Rear Wall Installation �� ������ Twist Lock Pipe ����� STEP 1 Locate vent opening on the wall. To locate hole center consult with appropriate fireplace dimensions, Page 4. Frame as shown below.
-
Page 14: Rear Wall Vent Installations - 45° Flex Vent Pipe
Rear Wall Vent Installations - 45° Flex Vent Pipe NOTE: Under no circumstances can ridged pipe or a rigid 45° elbow be used. The 7TCDV45KT must be used in a corner installation. The corner placement dimensions on Page 4 of the manual must be ad- hered to! Figures 16 &... -
Page 15: Rear Wall Vent Application (Exterior Outside Wall 20" - 32" From Rear Of Unit)
Screw Flex Vent Collar Fig. 19 Secure collar in place, slide termination into collar. Rear Wall Vent Application ������ * Exterior Outside Wall ���� ���� 20” - 32” (508 - 813 mm) ����� From Rear of Unit * 1. Determine where the termination is to be installed. (Fig. - Page 16 the horizontal vent it must be reduced to 17’ (5.2 m). In Figure 23 Dimension A plus B must not be greater than 17’ (5.2 m). Maximum 3' (914mm) Fig. 22 Maximum horizontal vent run. CFM142 Venting 2/2/01 sta 10 ft. (3048 mm) 90°...
- Page 17 STEP 2 Slide venting component on collar of fireplace. Secure component to fireplace by running a screw (self-tap- ping) through tab & into outer casing. (Fig. 26) STEP 3 Measure the horizontal length requirement including a 2” (51 mm) overlap, i.e. from the elbow to the outside wall finish plus 2”, or the distance required if installing a second 90°...
-
Page 18: Below Grade Installation
Below Grade Installations When it is not possible to meet the required vent ter- minal clearances of 12” (305 mm) above grade level a snorkel vent kit #7TDVSNORK is required. It allows installation depth of down to 7” (178 mm) below grade level. - Page 19 Example: Maximum horizontal length 0 x 45° elbows = 10’ (3 m) 1 x 45° elbows = 8¹⁄₂’ (2.6 m) 2 x 45° elbows = 7’ (2.1 m) 3. A minimum of an 8’ vertical rise. 4. Two sets of 45° elbows offsets within these vertical installations.
-
Page 20: 36Cdvt Vertical Venting - How To Use The Vent Graph
Roof 2’ Min. Roof Support Attic Insulation 50’ Shield (15 m) Attic Insulation Joists Fig. 36 Typical straight-up installation. FP1022 Typical Straight Up Installation 1/26/00 djt Min. 2' (610 mm) Fig. 37 Minimum termination to roof clearance. 9. Install storm collar and seal around the pipe. 10. -
Page 21: Vertical Sidewall Applications & Installation
Vertical Sidewall Applications Since it is very important that the vent- ing system maintain its balance between the combustion air intake and the flue gas exhaust, certain limitations as to vent configurations apply and must be strictly adhered to. The vent graph showing the relationship between verti- cal and horizontal side wall venting will help to deter- mine the various dimensions allowable. - Page 22 Example: Elbow 1 = 90° Elbow 2 = 45° Elbow 3 = 45° Elbow 4 = 90° Total angular variation = 270° 1 + 2 + 3 + 4 = 270° Fig. 42 Maximum number of elbow degrees. Vertical Sidewall Installations STEP 1 Locate vent opening on the wall.
-
Page 23: Below Grade Installations
STEP 5 Use appropriate length of pipe sections - telescopic or fixed - and install the horizontal vent sections. The sec- tions which go through the wall are packaged with the starter kit, and can be cut to suit if necessary. (Fig. 46) Sealing vent pipe and firestop gaps with high temperature sealant will restrict cold air being drawn in around fireplace. -
Page 24: Vertical Through-The-Roof Applications & Installation
Zero Clearance Sleeve Screws (if required) Firestop 7” Pipe 24” (610mm) Minimum* *A minimum of 24” (610mm) ver- tical pipe must be installed when using the 7TDVSNORK Kit. *The 22” (559mm) vertical rise (center to center) of the snorkel may be included for calculationof max. - Page 25 Max. 8' (2.4m) 1 + 2 + 3 + 4 = 270° Fig. 51 Typical offset application. Vertical Through-the-Roof Installation FP1245 through the roof 1. Locate your fireplace. 90 & 45 degree 2. Plumb to center of the (4” (102 mm) flue collar from 12/02 ceiling above and mark position.
- Page 26 2' (610 mm) Fig. 55 Minimum termination to roof clearance. CFM190 TTR Ternim. 2' 1/25/02 Min. CFM190 If there is a room above ceiling level, firestop spacer must be installed on both the bottom and the top side of the ceiling joists.
-
Page 27: Venting Components
584A venting components rear vent term 4/6/99 djt *NOTE: Must order a 7TCDV90 elbow for rear vent to vertical application only. 584B Vent components Starter Kit 2/25/99 djt 584D Vent Components 90 degree elbow 2/25/99 djt 584E 10/20/99 twist lock Venting Components Telescope vent 584F... -
Page 28: Operating Instructions
Glass Information Only glass approved by CFM Corporation should be used on this fireplace. • The use of any non-approved replacement glass will void all product warranties. • Care must be taken to avoid breakage of the glass. • Do not operate appliance with glass front removed, cracked or broken. -
Page 29: Logs
Logs The 36CDV logs are shipped in place. If a log is bro- ken, refer to the replacement parts list for a replace- ment. Figure 58 shows where the logs are secured to the fireplace. The log rear is secured to the back of the fireplace. -
Page 30: Lighting And Operating Instructions
Lighting and Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING:If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This heater has a pilot which must be lit manu- ally. - Page 31 Lighting and Operating Instructions For Fireplaces equipped with SIT822 Gas Valve (EN or EP) Warning: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury and loss of life. FOR YOUR SAFETY READ THE FOLLOWING WARNINGS A.
-
Page 32: Troubleshooting
NOTE: Before trouble shooting the gas control system, be sure external gas shut off is in the “On” position. WARNING: BEFORE DOING ANY GAS CONTROL SERVICE WORK, REMOVE GLASS FRONT. SYMPTOM 1. Spark ignitor will not light A. Defective or misaligned B. -
Page 33: Fuel Conversion Instructions
Fuel Conversion Instructions The conversion of this appliance from one gas to another must be carried out by an authorized service provider. 1. Disconnect power to the unit and shut off the gas sup- ply. 2. Remove window frame assembly. 3. -
Page 34: Maintenance
Burner and Burner Compartment It is important to keep the burner and the burner compartment clean. At least once per year the logs and lava rock/ember material should be removed and the burner compartment vacuumed and wiped out. Remove and refit the logs as per the instructions in this manual. Always handle the logs with care as they are fragile and may also be hot if the fireplace has been in use. -
Page 35: Replacement Parts
CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. Ref. Description Log Rear Assy Log Middle Assy Ceramic Hearth Ember Hood Burner Tube Orifice Burner - Natural (not shown) Orifice Pilot - Natural (not shown) Orifice Pilot - Propane (not shown) PIlot Assy SIT - RN... - Page 36 (continued) Ref. Description Flexible Gas Line w/ON/Off Shut-Off Valve Fan Assy (FK12 Option) Electrical Cord (6 ft.) Door Assy Glass w/Gasket Gasket Glass Frame Window Clamp Frame Window Top Louvre Assy Bottom Louvre Assy ON/OFF Switch Grommet Wire/Bushing Assy (not shown) Fuel Conversion Kits Conversion Kit, NG to LP 36CDV...
-
Page 37: Optional Accessories
Optional Accessories Available Fan Kits FK12 This auxiliary fan system increases the efficiency of the circulation of the heating air. The FK12 Fan Assembly is a fixed speed fan system and does not allow for variable speed control. Specifications 115 Volts / 60 Hz / 56 Watts. Maintenance The fan itself does not require regular maintenance, however periodic cleaning of the fan and the... - Page 38 CDV Series Direct Vent Gas Fireplace 20010175...
-
Page 39: Warranty
PRODUCT COVERED BY THIS WARRANTY All Vermont Castings gas stoves, gas inserts, and gas fireplaces, and all Majestic or Northern Flame brand gas fireplaces equipped with an Insta-Flame Ceramic Burner, or standard steel tube burner. BASIC WARRANTY CFM Corporation (hereinafter referred to collectively as the Company) warrants that your new Vermont Castings or Majestic Gas Fireplace/ Stove is free from manufacturing and material defects for a period of one year from the date of purchase, subject to the following conditions... -
Page 40: Energuide
Efficiency Ratings Model EnerGuide Ratings Fireplace Efficiency (%) 36CDVRRN 66.9 36CDVRRP 66.9 2695 Meadowvale Blvd. • Mississauga, Ontario, Canada L5N 8A3 800-668-5323 • www.cfmcorp.com Steady State (%) Fan-OFF Fan-ON CFM Corporation D.O.E. (AFUE%) 76.5...
