TEMCO FIREPLACE PRODUCTS, Inc.

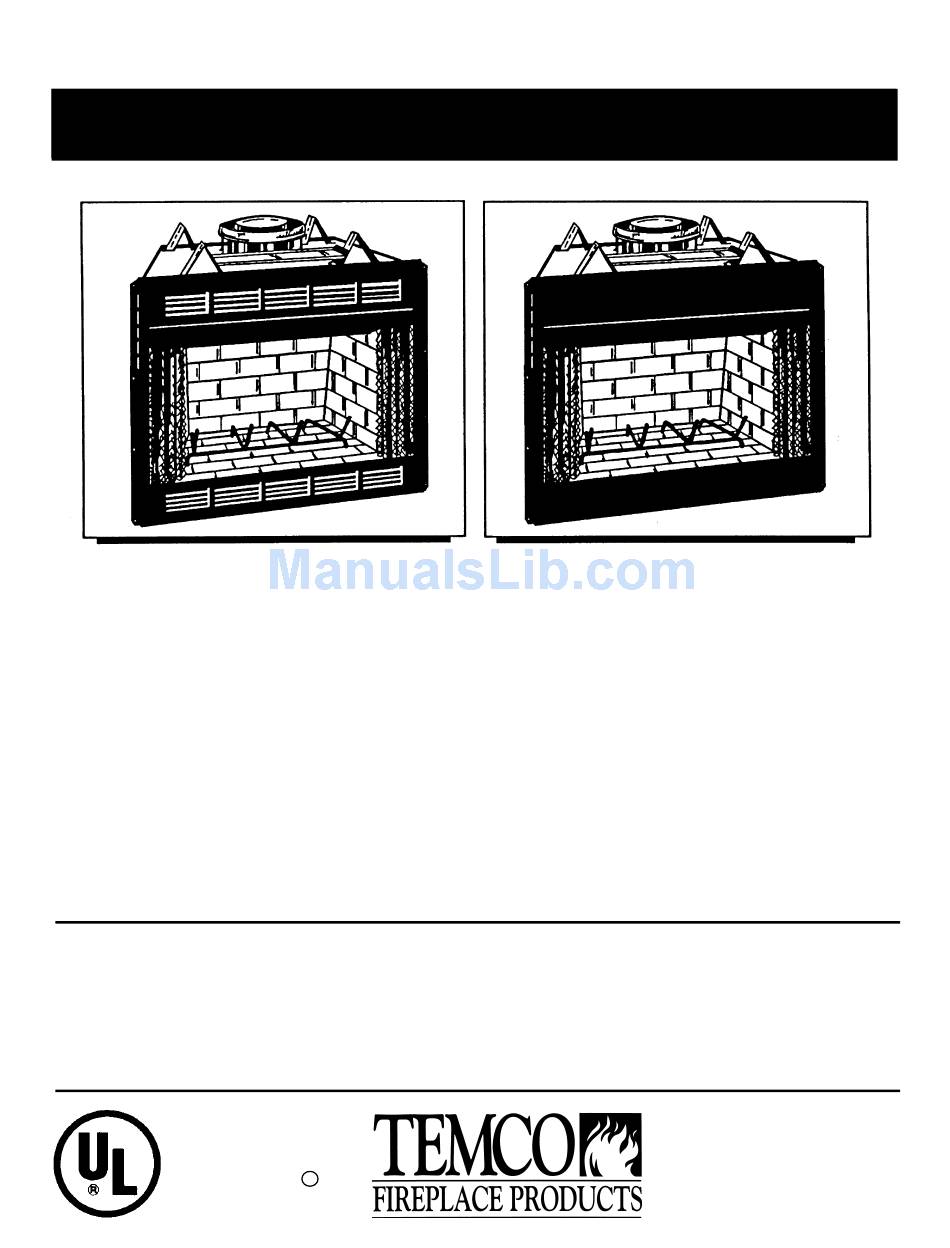

Louvered 39" Heat Circulating Fireplace
TLC39-22
39" louvered heat-circulating fireplace.
Optional Combustion Air Kits AIR-5, AIR-5A, AIR-5B,
AIR-7, AIR-3B.
Optional Glass Doors CLS-4, CLS-3, CX31, CX41.
Optional Blower Kit BL3922. Requires junction box JB-
2.
TLC39-22I (With insulated outer wrap)
39" louvered heat-circulating fireplace with fully insulated
outer wrap.
Optional Combustion Air Kits AIR-5, AIR-5 A, AIR-5B,
AIR-7, AIR-3B.
Optional Glass Doors CLS-4, CLS-3, CX31, CX41.
Optional Blower Kit BL-1. Requires junction box JB-2.
Mobile Home Installation:
TLC39-22I are listed for use in mobile homes with a
TEMCO double-wall 8" diameter air-cooled chimney and
components, listed on p.3, when installed with firestop
This book contains your installation instructions and should
be kept in a safe place. It will be a handy reference guide
to operating your fireplace after installation. For you to
realize all the advantages and use of your fireplace, you
must carefully f o llow all the instructions contained in the
book regarding installation and operation of the appliance.
These instructions should be read carefully in their entirety
before beginning installation.
It is suggested that you wear work gloves and safety
Underwriters
Laboratories Inc.
File MH10105
Click here to print
Installation Instructions for 39" Fireplaces
Models TLC39-22,TLC39-22I,TFC39-22
READ AND SAVE THESE INSTRUCTIONS
Models TLC39-22 and
R
Flush Face 39" Heat Circulating Fireplace
thimble UFT8-1, combustion air kit AIR-3B, and glass
doors CLS-4, CLS-3, CX31, CX41.
TFC39-22
39" flush-hearth heat-circulating fireplace.
Optional Combustion Air Kits AIR-5, AIR-5A, AIR-5B,
AIR-7.
Optional Glass Doors CLS-3, CX31.
BE SURE TO FOLLOW EXACTLY THE SPECIFIC
INSTALLATION RESTRICTIONS THAT APPLY TO THE
MODEL YOU ARE INSTALLING.
these rules exactly. The model number of the fireplace is
located on a metal label behind the firescreen in the
upper right corner of the front of the fireplace.
Listed by Underwriters Laboratories, Inc., File #MH10105.
ICBO Evaluation Service, Inc. Report for Underwriters
Laboratories, Inc. - AA668/TL 157.
glasses to protect your hands and eyes when installing your
freestanding fireplace.
NOTE:
Authorities having jurisdiction, (i.e. building
inspectors, fire marshals, etc.), should be consulted before
installation in order to determine whether a permit is
required.
All models are listed for use in residential construction in
the United States with TEMCO double-wall 8" diameter air-
cooled chimney and components listed on p.3.
Be sure you follow
P.O. BOX 1349 Manchester, TN 37355
P.O. Box 1148 Perris, CA 92572
1773 Parque Industrial Cachanilla
Mexicali, B. C. 21600
REV.
8/14/02 8:05 AM
72350J

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLC39-22 and is the answer not in the manual?

Questions and answers

Summary of Contents for Temco TLC39-22

  • Page 1 These instructions should be read carefully in their entirety All models are listed for use in residential construction in before beginning installation. the United States with TEMCO double-wall 8" diameter air- It is suggested that you wear work gloves and safety cooled chimney and components listed on p.3.
  • Page 2: Table Of Contents

    CONTENTS Introduction ............................Page 3 Temco Chimney System .........................3 A Few Basic Rules ..........................3 Planning Ahead ............................4 Choosing the location for your fireplace ....................4 Outside air kit accessories ........................5 Gas Line ..............................5 Drafts ..............................5 Locating flue pipe placement ........................5 Chimney outlet ............................5 Firebox and chimney system clearances ....................5...
  • Page 3: Introduction

    Guy wire stabilizer is required for chimneys extending PRC-12 Pyramid Cap more than 6' above roof line. LPC-12 Long Pyramid Cap 10.Only TEMCO model glass doors may be installed on TCS-12 Conical Cap these fireplaces. Chimney Enclosures 11.The barometric damper on the Combustion Air Kit allows air to be drawn from above, below, or behind the CEK12-1 12"...
  • Page 4: Planning Ahead

    PLANNING AHEAD CHOOSING THE LOCATION FOR Figure 1 Locations YOUR FIREPLACE: Figure 1 shows some of the many ways your fireplace may be installed. Consider the traffic pattern in your room and the location of doors and windows. A corner location may be best where space is limited.
  • Page 5: Outside Air Kit Accessories

    OUTSIDE AIR KIT AND GLASS DOOR Figure 3 Use of the Plumb Bob ACCESSORIES A fireplace needs a steady supply of air in order to draw properly. Many houses and apartments which are well sealed lack sufficient air for normal operation. IN SUCH HOUSES, IT IS RECOMMENDED THAT A COMBUSTION AIR KIT BE INSTALLED.
  • Page 6: Determining The R-Values

    Figure 4 Framing Members Framing Members THE CAUTIONS BELOW RELATE TO LOCATIONS ON resistance of R = 1.49. FIGURE 4. Determining the R-Values A. The hearth safety strip must be used under the crack The hearth extension must be constructed of non- between the fireplace and the hearth extension when the combustible materials which have a total thermal resistance fireplace is installed on a combustible floor.
  • Page 7: Fireplace Installation

    FIREPLACE INSTALLATION This list of specific instructions will help you make certain that position. every installation operation is done correctly. Complete the STEP 4. LEVEL THE FIREBOX installation steps in the sequence shown. Figure 6 Local building codes should be consulted in all cases as to the particular requirements concerning the installation of factory built fireplaces.
  • Page 8: Installing The Chimney

    STEP 6. FRAMING CEILING AND ROOF OPENING Figure 12 Figure 13 SEE FIGURE 18 FOR INSTRUCTIONS IF THE FLUE-PIPE WILL BE OFFSET BELOW THE FIRST CEILING LEVEL. If you are not using elbows in this installation frame, the ceiling and roof openings are directly above one another in the locations you chose in the Planning Ahead section of this manual.
  • Page 9: Chimney Termination Height 10 Foot Rule Of Thumb

    Figure 14 you require the chimney to incline. Snap lock all sections permanently in place. 2. Adjust the inner section of the elbow into the inside of the inner collar of the firebox or the inner section of the chimney pipe. 3.
  • Page 10 LINEAL, VERTICAL & HORIZONTAL GAIN OF INSTALLED COMPONENTS OFFSET “X” OFFSET “Y” COMPONENT ONLY ACTUAL VERTICAL GAIN (CHIMNEY AT 30 DEG,) (CHIMNEY AT 30 DEG.) TLC3922 39” — — TFC3922 39” — — 8203D ROUND CAP 6” — — 8232E ELBOW (30 DEGREE) —...
  • Page 11 OFFSET AND RISE CHART INCLUDING ONE SET OF ELBOWS AND FLUE SUPPORTS AS NEEDED (NOT INCLUDING FIREPLACE OR TERMINATION CAP) Height Of 8232E Number Of 8204S Chimney Only (inches) ELBOW Chimney Lengths FLUE " X" OFFSET "Y" RISE 12" 18" 36"...
  • Page 12: Flashing And Storm Collar

    STEP 11. INSTALLING FLASHING 4. A metal cover made by a local sheet metal shop is Place the flashing over the chimney pipe where it required to complete a chase installation. This cover penetrates the roof and mark the outline of the flashing on becomes a flashing that prevents water from entering the the roof.
  • Page 13: Installing A Gas Line

    Lining the interior walls of the fireplace enclosure with gypsum wallboard will further reduce cold air All Temco fireplaces are designed to accept a 1/2" gas line. infiltration. (See figure 23.) The gas appliance must be certified, listed or approved for...
  • Page 14: Mobile Home Installation

    8" chimney between minimum height of 13'6" must be maintained when elbows are used. 3. TEMCO glass doors, firestop thimble, and model AlR-3B WARNING: Do not install a fireplace in a sleeping combustion air kit must be installed for mobile home use.
  • Page 15: Finishing Your Fireplace

    There are a wide variety of finishing materials available for using them on the face of the fireplace. Some of these your TEMCO fireplace from formal wall treatments with products contain combustible materials. Combustible wall marble and mantels to rustic wood paneling, stone or brick.
  • Page 16 Figure 27 MANTEL LEG PROJECTION Mantel legs may project along the radiation line as illustrated. REFERENCE DIMENSIONS 1-1/4” min. 1-11/16” 6” min. 2-5/8” 7" min. 3" 8" min. 3-1/2" 10" min. 4-3/8" 12" min. 5-1/4" Hearth Installation Figure 28 (See Note Below) (See Note Below) (See Note Below) (See Note Below)
  • Page 17: Using Your Fireplace

    If the 4. A TEMCO fireplace grate must be used in this fireplace. combustion air kit is installed, close the inlet air dam per. It is pre-installed at the factory as an integral part of the 17.The brick-like refractory on the floor, back and sides is...
  • Page 18: Replacement Parts

    REPLACEMENT PARTS FOR 39" FIREPLACES The following replacement parts are available from your TEMCO dealer. Description Quantity Part # 1. Firescreen rod, straight 62646 2. Screws for screen rods 68188 3. Firescreen with rings 66146 4. Screen retainer 62222 5. Refractory retainer, right side 68316 6.
  • Page 19 The Second Through Fifth Years of Coverage From the second through the fifth year after installation, TEMCO will make available to the original owner, at no charge, at its factory a replacement for any defective part in the fireplace or chimney system except for refractories or grates.
  • Page 20: Warranty

    Customer Copy To register your warranty, please provide the information indicated on this form and mail it to: TEMCO Fireplace Products 301 Perimeter Park Dr. Suite 227 Nashville, TN 37211 Model #_______________________________________ Serial #_________________________________________ WARRANTY REGISTRATION Please Answer the Following Questions (Check Box):...
