Installation manual

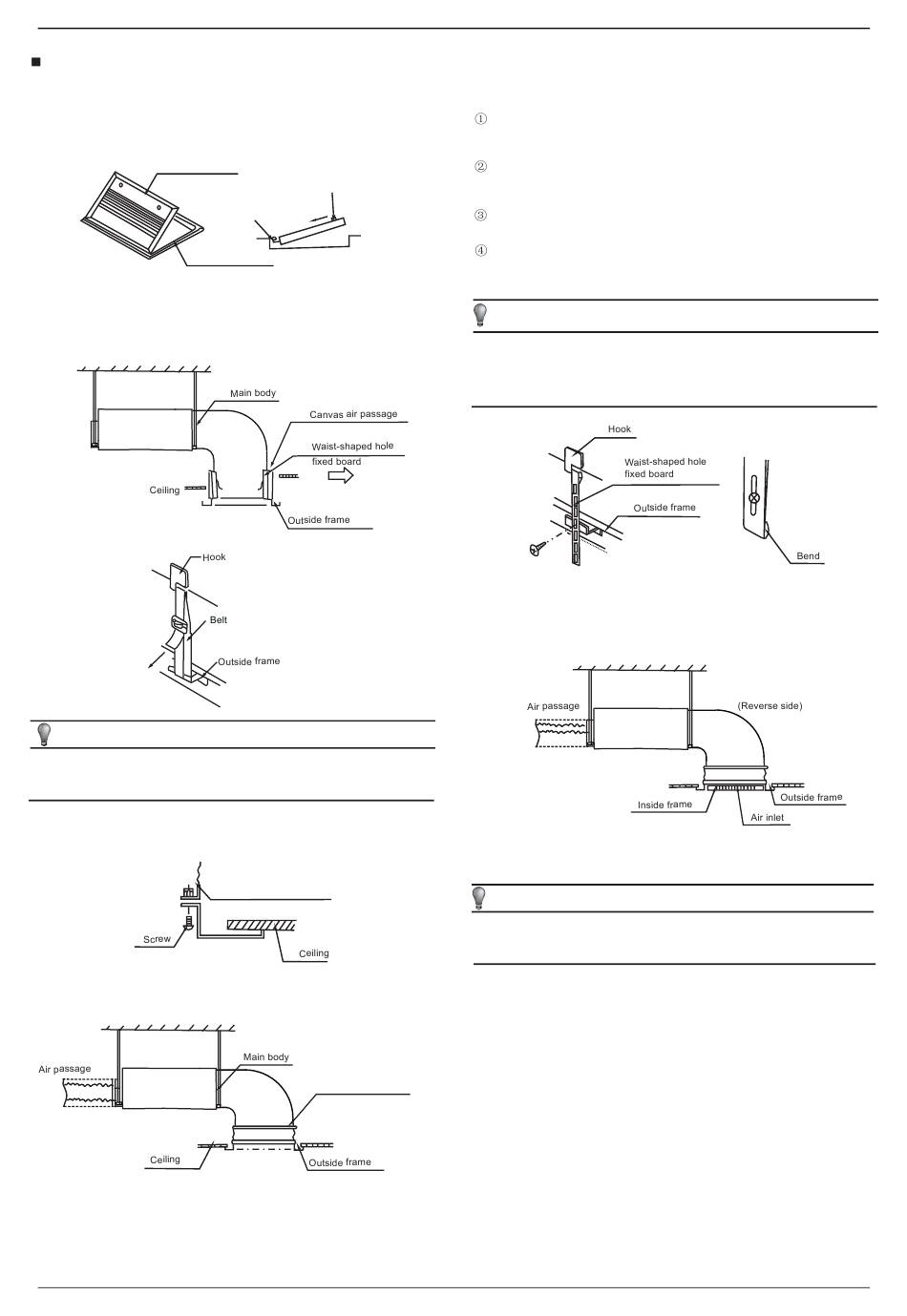

Panel installation
●
Unload inner frame.
Slide the knob, release the buckle from the outside frame hole,
then unload the inner frame.
Inside frame
Outside frame
●
Hang the outside frame on the main body with face down. (4
places at 4 corners).
Hang the belt on the hook of the main body.
The signal wire of the remote control receiver must be drawn
out through the canvas air passage.
●
Fix the outside frame and the canvas air passage with screws.
Screw must be fixed on from the bottom to the top.
●
Hang up the outside frame until it sticks to the ceiling tightly.
Knob
Buckle
Fig.7-5
Fig.7-6
Fig.7-7
NOTE
Canvas air passage
Canvas air passage
Fig.7-9
●
Fix the main body and the outside frame with the fix board of
waist-shape hole (in two places).
Hang one side of the fix board of the waist-shaped hole on the
hook of the main body.
Tighten the other side of the board with screw to the outside
frame.
Cut off the surplus part of the board with pliers.
Bend the top of the broken end.
When hanging up the outside frame with the fix board of
waist-shaped hole and the belt, stick the outside frame
tightly to the ceiling and fix it.
●
Install the inner frame on the outside frame (the inverse sequence
of unloading the inner frame).
Connect the remote control receiver with the indoor unit signal
wires and fix it.
●
Install remote controller.
5
High pressure duct D4+
NOTE
Fig.7-10
Fig.7-11
NOTE
