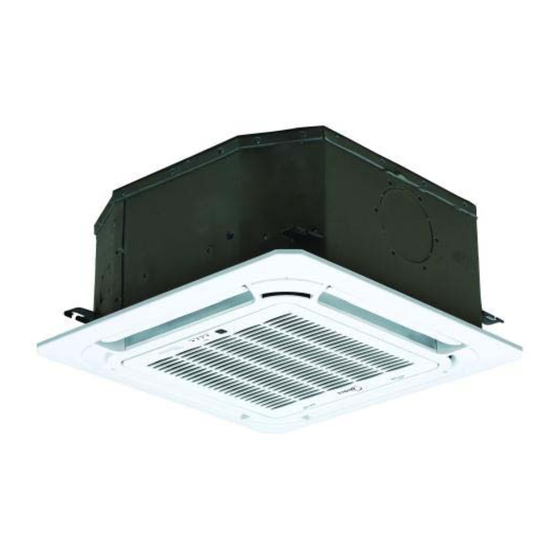

mundoclima MVD CL23130 Installation Manual

mundoclima MVD CL23130 Installation Manual

Cassette 4 ways compact

Advertisement

Quick Links

MVD
Cassette 4 Ways Compact
Installation manual
CL23130 to CL23133
English
www.mundoclima.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the MVD CL23130 and is the answer not in the manual?

Questions and answers

Summary of Contents for mundoclima MVD CL23130

  • Page 1 Cassette 4 Ways Compact Installation manual CL23130 to CL23133 English www.mundoclima.com...
  • Page 2 Installation manual Cassette 4 ways compact CONTENTS PAGE Use the attached accessories parts and specified parts for installation. otherwise, it will cause the set to fall, water leakage, electrical PRECAUTIONS..................1 shock fire. INSTALLATION INFORMATION..............2 INSPECTING AND HANDLING THE UNIT..........2 Install at a strong and firm location which is able to withstand the set' s weight.
  • Page 3 Installation manual Cassette 4 ways compact Carry out the specified installation work after taking into 2. INSTALLATION INFORMATION 2. INSTALLATION INFORMATION account strong winds, typhoons or earthquakes. Improper installation work may result in the equipment falling and causing accidents. To install properly, please read this "installation manual" at If the refrigerant leaks during installation, ventilate the first.
  • Page 4 Installation manual Cassette 4 ways compact 4. ATTACHED FITTINGS Please check whether the following fittings are of full scope. If there are some spare fittings, please restore them carefully. Four-way Four-way NAME SHAPE Cassette Cassette (compact) 1. Installation paper board INSTALLATION FITTINGS 2.
  • Page 5 Installation manual Cassette 4 ways compact 5. INDOOR UNIT INSTALLATION Please adjust the hexangular nuts on the four installation hooks evenly, to ensure the balance of the body. 5.1 Installation place If the drainpipe is awry, leakage will be caused by the malfunction of the water-level switch.
  • Page 6 Installation manual Cassette 4 ways compact Drain side NOTE All the pictures in this manual are for explanation purpose only. They may be slightly different from the conditioner purchased(depend model).The actual shape shall prevail. 5.3 Install The Panel CAUTION 545(Hook-location) 570(Body) Never put the panel face down on floor or against the (Unit: mm)
  • Page 7 Installation manual Cassette 4 ways compact 6. INSTALL THE CONNECTING PIPE Install the panel on the main body with bolt (M5×16) and washer. (Refer to Fig.5-11 ) Adjust the four panel hook screws to keep the panel Check whether the height drop between the indoor unit and horizontal, and screw them up to the ceiling evenly.
  • Page 8 Installation manual Cassette 4 ways compact 90 ° ± 4 Use frozen oil R0.4~0.8 Fig.7-2 Fig.6-1 Table.7-1 Bend the pipe with thumb A(mm) Outside diameter Fig.6-2 Φ6.4mm 12.4 12.0 Φ9.5mm Φ12.7mm 15.8 15.4 Make the ends 19.0 18.6 straight Φ15.9mm Fig.6-3 Φ19.1mm 23.3...
  • Page 9 Installation manual Cassette 4 ways compact 7.2 Check The Leakage The necessary filling amount of refrigerant ● Check all the joints with the leak detector or soap water. (See Refrigerant volume to be added is calculated according to Fig.7-6 as a reference illustration) outdoor unit installation manual .Be sure to add refrigerant measuring by a scale.
  • Page 10 Installation manual Cassette 4 ways compact 8.2 Drainage Test 5) When connecting drainpipe, don’t drag the pipe that would pull the main unit. For this, please arrange bearing points every 0.8 to 1.0 meter to avoid pipe be bended (See Fig.8-1 b). Check whether the drainpipe is unhindered 6) When connect a lengthen drainpipe, apply protective tube to New built house should have this test done before paving...
  • Page 11 Installation manual Cassette 4 ways compact Table.9-1 Terminal board diagram Please refer to the indoor unit wiring diagram for the wiring. Model(W) 1500~5600 Phase 1-Phase Power NOTE Frequency and volt 220-240~50Hz The air-conditioners can connect with Central Control Circuit breaker/fuse (A) 15/15 Monitor (CCM).
  • Page 12 Installation manual Cassette 4 ways compact ENC1 Dial switch Horsepower setting Network address set Code Capacity (Horsepower) ● Network address is set by communication of indoor and Note: The horsepower 1500W(0.6HP) outdoor unit; the address is the same as indoor address, there has been set before is no need to set separately.
  • Page 13 Installation manual Cassette 4 ways compact definition 12. TEST OPERATION 1 means auto wind under auto mode The test operation must be carried out after the entire installation has been completed. 0 means auto wind under non auto mode Please confirm the following points before the test operation: ●...
  • Page 14 ASK FOR MORE INFORMATION Phone: (+34) 93 446 27 80 eMail: info@mundoclima.com TECHNICAL ASSISTANCE Phone: (+34) 93 652 53 57 www.mundoclima.com...

This manual is also suitable for:

Mvd cl23133
