Floor standing MVD DC2
Installation and Owner's manual
CL23580 to CL23596
English
www.mundoclima.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVD DC2 and is the answer not in the manual?

Questions and answers

Summary of Contents for mundoclima MVD DC2

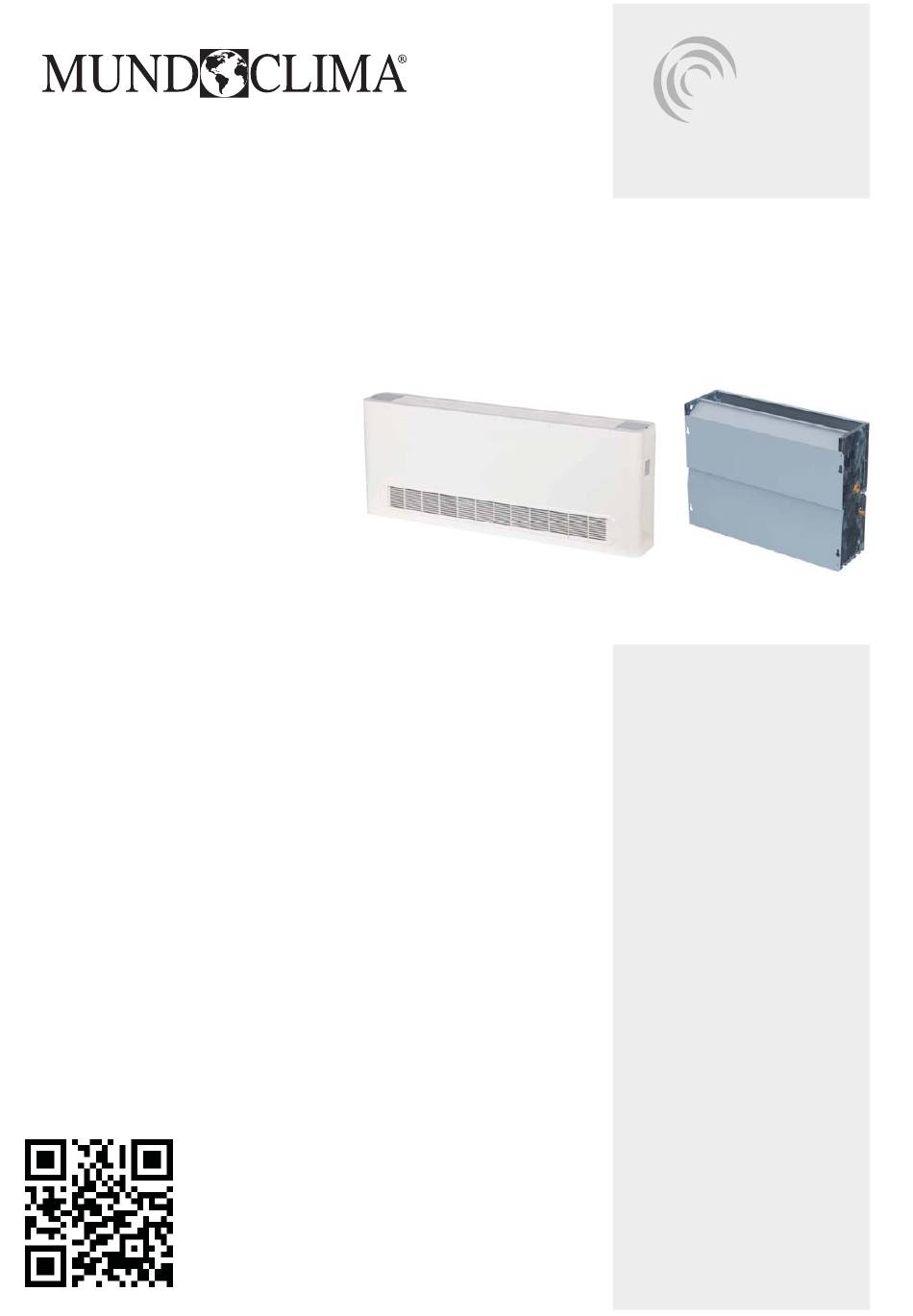

  • Page 1 Floor standing MVD DC2 Installation and Owner's manual CL23580 to CL23596 English www.mundoclima.com...
  • Page 3: Table Of Contents

    Use only electrical cables that fulfil the specifications. All wiring on Contents site must be carried out in accordance with the connection diagram Installation Manual ................1 attached to the product. Make sure that there are no external forces Accessories ..................2 acting on the terminals and wires.
  • Page 4: Accessories

    7) Do not touch the fins of the heat exchanger as this may lead 9) Note the recycling requirements for nails, wood, carton and to injury. other packaging materials. Do not discard these materials 8) Some products use the PP packing belt. Do not pull or tug on directly as these may lead to bodily harm.
  • Page 5: Before Installation

    1. Before Installation Air outlet Air outlet 1. Determine the route to move the unit to the installation site. 2. First unseal and unpack the unit. Then drag the bottom to move the unit. Refrain from exerting force on other parts of the unit, especially the refrigerant piping, water discharge piping, and the plastic parts.
  • Page 6 Dimensions of unit Newly set concrete slab structure Set using embedded appliances, and embedded type of bolts. Knife-type Sliding-type Air inlet grille insertion piece insertion piece Reinforced bar Embedded bolt (hanging and embedded bolt for piping) 149.5 149.5 Figure 3.3 Right Left Air outlet grille...
  • Page 7 Figure 3.11 Dimensions of unit Figure 3.8 Figure 3.9 Figure 3.12 Dimensions of unit (Liquid-end of UHIULJHUDQW SLSLQJ (Gas-end of refrigerant SLSLQJ Air inlet grille 149.5 149.5 Figure 3.13 Left Right Air outlet grille Cover Cover Figure 3.10 Table 3.3 Table.3.2 C (mm) Capacity (kW)
  • Page 8: Refrigerant Piping Installation

    Before the socket cap is installed on the pipe socket, apply some refrigerant Refrigerant Piping Installation oil on the socket (both inside and outside), and then rotate it three or four 4.1 Length and Level Difference Requirements for the Piping times before you tighten the cap.
  • Page 9: Water Discharge Piping Installation

    Water Discharge Piping Installation 5.2 Water Discharge Test 5.1. Water Discharge Piping Installation for Indoor Unit Before the test, make sure that the water discharge pipeline is 1. Use PVC pipes for the water discharge pipes (outer diameter: 37~39 mm, smooth, and check that each connection is sealed properly.
  • Page 10 6.3 Communication Wiring :Copper wire Circular wiring Use only shielded wires for the communication wiring. Any other type of wires terminal may produce a signal interference that will cause the units to malfunction. Proper power wiring connections Do not carry out electrical works like welding with the power on. Insulation tube All shielded wiring in the network are interconnected, and will eventually connect to earth at the same point...
  • Page 11: On-Site Configuration

    On-site Configuration Capacity Settings Indoor unit 2 Indoor unit n(n<=16) Set up the PCB DIP switch on the indoor electric control box to cater to different Indoor unit 1 uses. Once the settings are done, make sure you cut off the main power switch again, and then switch the power on.
  • Page 12: Test Run

    Error Codes and Definitions Factory settings Error Content code SW3_1 Mode conflict Communication error between indoor and outdoor units Reserved Indoor ambient temperature sensor (T1) error Indoor heat exchanger mid-point temperature sensor Clear indoor unit address (T2) error SW3_2 Indoor heat exchanger outlet temperature sensor (T2B) error Reserved Fan error...
  • Page 13: Operation Manual

    Opera on Manual or maintenance is carried out. Do not touch the unit or its remote controller with wet hands, as There are two types of precautions as described below: doing so can lead to electric shocks. Warning: Failure to comply may lead to death or serious injury. Do not allow children to play near this unit, as doing so risks injury.
  • Page 14: Part Names

    To avoid damaging the remote controller, exercise caution when ) YHUVLRQ using it and replacing its batteries. Do not place objects on top of it. The vertical unit is concealed in the wall after installation, with Do not place appliances that have naked flames under or near the air intake from the bottom and air delivery at the top.
  • Page 15: Maintenance

    Method for cleaning the air filter Check regularly a. The air filter can prevent the dust or other particles from entering the unit. If the filter is blocked, the unit will not work well. Clean the filter every two weeks when you use it regularly. b.
  • Page 16: Symptoms That Are Not Faults

    12. Symptoms That Are Not Faults The following symptoms may be experienced during the normal operation of the unit and are not considered faults. Note: If you are not sure whether a fault has occurred, contact your supplier or service engineer immediately.
  • Page 17 13.2 Unit Troubleshooting Symptom Possible causes Troubleshooting steps A power cut has occurred (the power to the Wait for the power to come back on. premises has been cut-off). Power on the unit. This indoor unit forms part of an air conditioning system that has multiple indoor units that are all connected.
  • Page 18 13.3 Remote Controller Troubleshooting Warning: Certain troubleshooting steps that a professional technician may perform when investigating an error are described in this owner's manual for reference only. Do not attempt to undertake these steps yourself – arrange for a professional technician to investigate the problem. If any of the following errors occur, power the unit off and contact a professional technician immediately.
  • Page 19 13.4 Error Codes With the exception of a mode conflict error, contact your supplier or service engineer if any of the error codes listed in the following table are displayed on the unit's display panel. If the mode conflict error is displayed and persists, contact your supplier or service engineer. These errors should only be investigated by a professional technician.
  • Page 20 ASK FOR MORE INFORMATION Phone: (+34) 93 446 27 81 eMail: info@mundoclima.com TECHNICAL ASSISTANCE Phone: (+34) 93 652 53 57 www.mundoclima.com...
