Installation manual
●
There is much evaporating acid or alkaline gas.
●
Other special areas.
●
Notes Before Installation
Select the correct carry-in path.
●
Move this unit as originally packaged as possible.
●
If the air conditioner is installed on a metal part of the building, it
must be electrically insulated according to the relevant standards
to electrical appliances.
● Avoid installing it in a narrow sapce which has a high requirement
to noise.
Remark per EMC Directive 89/336/EEC
For to prevent flicker impressions during the start of the
compressor (technical process), following installation condi-
tions apply.
●
The power connection for the air conditioner has to be done
at the main power distribution.The distribution has to be of
a low impedance, normally the required impedance reaches
at a 32A fusing point.
●
No other equipment has to be connected with this power
line.
●
For detailed installation acceptance, please refer to your
contract with the power supplier if restrictions do apply for
p r o d u c t s l i k e w a s h i n g m a c h i n e s , a i r c o n d i t i o n e r s o r
electrical ovens.
For power details of the air conditioner, refer to the rating
●
plate of the product.
● For any question contact your local dealer.

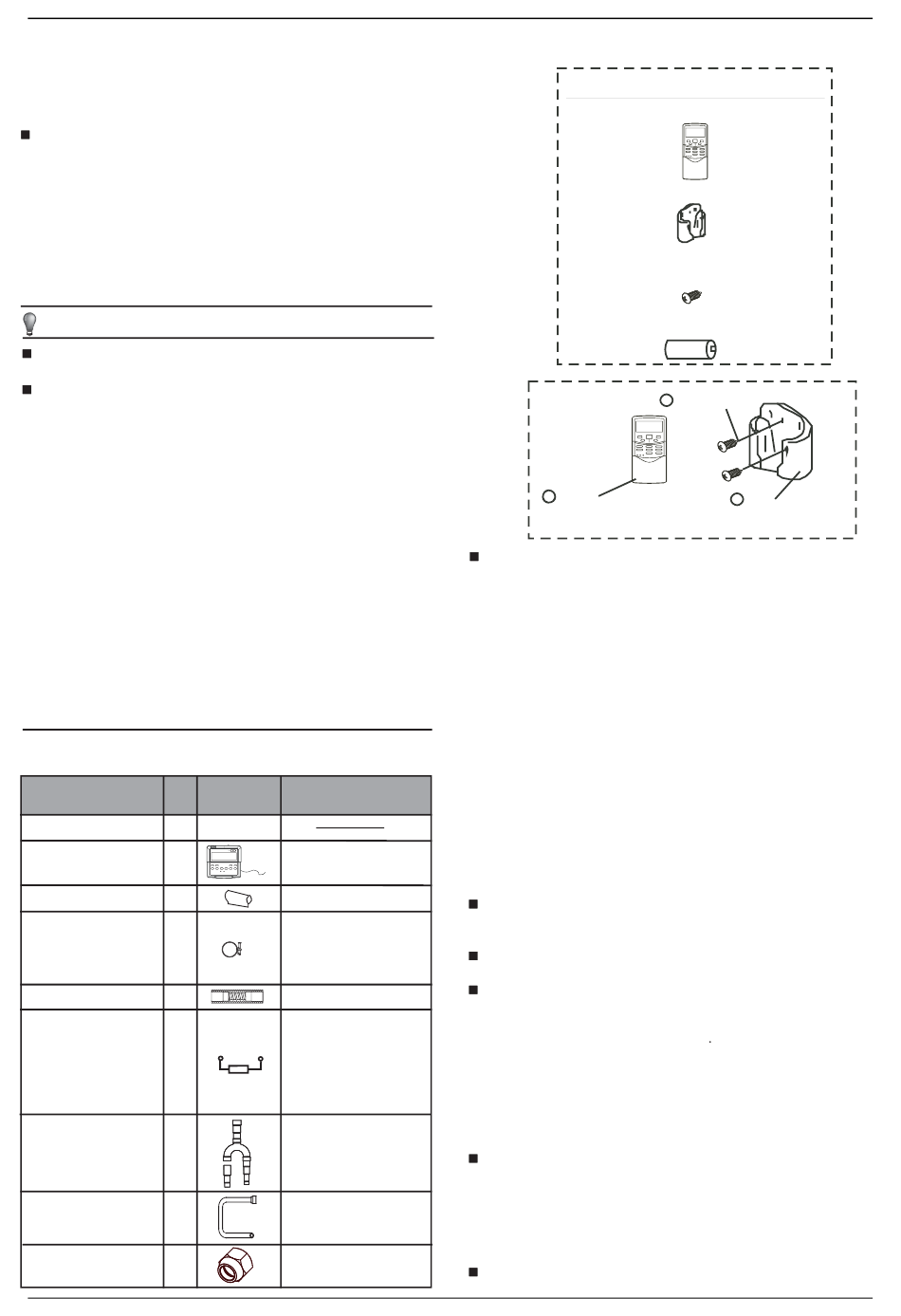

3. ACCESSORIES

Table.3-1
Name of
Q'ty
Accessories
Installation manual 1
1
Wire controller
Pipe insulation material 4
Clasp 1
Water connecting pipe 1
1
Network matching wire
Branch header package 2
EXV connecting pipe ass'y 2
Copper nut 2
NOTE
Outline Usage
(This manual)
Wire control the
air-conditioner
Heat insulation
Chucking the joint which
connect the drain hose
and the outlet of indoor
unit
To connect drain pipe
The indoor unit which at
the terminal of
communication system
shouldconnect a
impedance between port
P and port Q
To connect the AB system
To connect the throttle
components.
Use for pipe connection
of engineering installation
The following are selectable accessories
Remote controller & Its Frame
1. Remote controller....................................1
2. Remote controller holder.........................1
3. Mounting screw
(ST2.9x10-C-H)........................................2
4. Alkaline dry battery(AM4)
..................................................................2
1
Remote
controller
Cautions on remote controller installation
●
Never throw or beat the controller.
●
Before installation, operate the remote controller to determine
its location in a reception range.
● Keep the remote controller at least 1m apart from the nearest
TV set or stereo equipment. (It is necessary to prevent
image disturbances or noise interferences.)
●
Do not install the remote controller in a place exposed to
direct sunlight or close to a heatingsource, such as a stove.
Note that the positive and negative poles are in right positions
when loading batteries.
4. INDOOR UNIT INSTALLATION
Installing Φ10 Hanging Screw Bolts (4 Bolts)
Please refer to the following figure for
measurement between the screw bolts.
Please install with screw bolts.
The handling to the ceiling varies from the constructions, consult
the construction personnels for the specific procedures.
● The size of the ceiling to be handled Do keep the ceiling flat. Con-
solidate the roof beam for possible vibration.
● Cut off the roof beam.
Strengthen the place cut off, and consolidate the roof beam.
●
Carry out the pipe and line operation in the ceiling after
finishing the installation of the main body. While choosing where
to start the operation, determine the direction of the pipes to be
drawn out. Especially in case there is a ceiling, position the
refrigerant pipes, drain pipes, indoor & outdoor lines to the connec-
tion places before hanging up the machine.
The installation of hanging screw bolts.
2
High pressure duct D4+
3
Mounting screw
2
Remot e controller
holder
Fig.3-1
the distance
