mundoclima MVD D4+ Installation Manual page 11

Installation manual

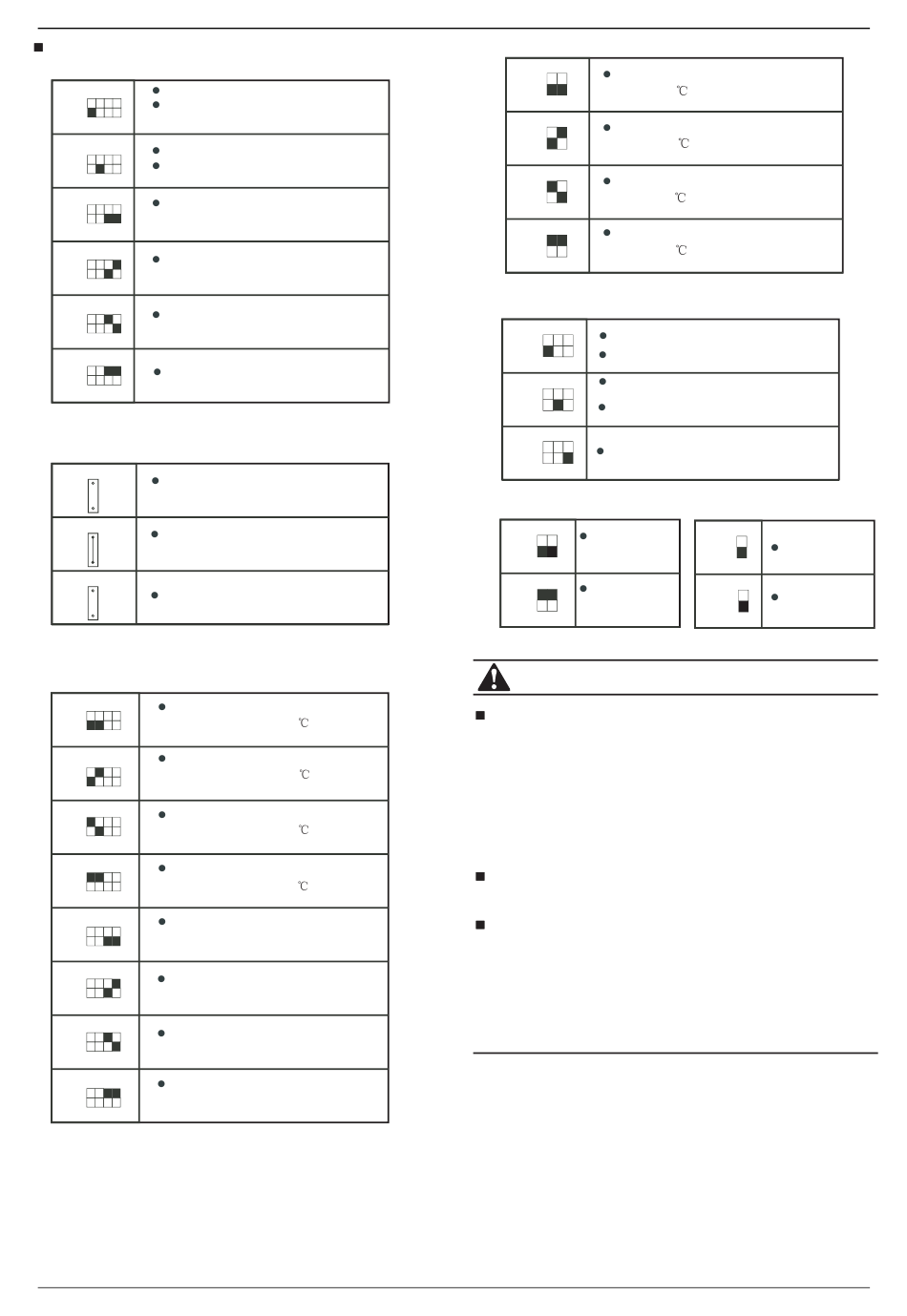

Mainboard codes indication label
SW 1 Definition
SW1 1 means factory test mode
0 means auto addressing mode
ON
(default setting)
1234
SW1
1 means DC fan is chosen
ON
0 means AC fan is chosen
1234
SW1
0 0 means DC fanstatic pressure
ON
is 0 (reserved)
1234
SW1
0 1 means DC fanstatic pressure
ON
is 1 (reserved)
1234
SW1
10 means DC fanstatic pressure
ON
is 2 (reserved)
1234
SW1
11 means DC fanstatic pressure
ON
is 3 (reserved)
1234
J1, J2 Definition
J 1
without jumper
auto restart function
J 1
with jumper
non-auto restart function
J 2
r eserve d
SW 2 Definition
SW2
00 means shutting down the unit
ON
to "stop cold air" at 15
1234
01 means shutting down the unit
SW2
ON
to "stop cold air" at 20
1234
SW2
10 means shutting down the unit
ON
to "stop cold air" at 24
1234
SW2
11 means shutting down the unit
ON
to "stop cold air" at 26
1234
SW2
00 means the time of stopping
ON
TERMAL fan is 4 mintue
1234
SW2
01 means the time of stopping
ON
TERMAL fan is 8 mintue
1234
SW2
10 means the time of stopping
ON
TERMAL fan is 12 mintue
1234
SW2
11 means the time of stopping
ON
TERMAL fan is 16 mintue
1234
" J 1 " fo r
" J1 " f or
SW 5 Definition
SW5
00 means temp. compensation
ON
value is 6
1 2
SW5
01 means temp. compensation
ON
value is 2
1 2
SW5
10 means temp. compensation
ON
value is 4
1 2
SW5
11 means temp. compensation
ON
value is 8
1 2
SW6 Definition
SW6
1 means old display panel
ON
0 means new display panel
1 2 3
SW6 1 means auto air blow under
auto mode
ON
0 means auto air blow under
non-auto mode
1 2 3
SW6
ON
reserved
1 2 3
SW7 Definition
SW7
standard
ON
configuration
1 2
SW7
last unit of
ON
the network
1 2
Please adjust the code ENC1 to the suitable position (both
system A and B should be adjusted for 450 and 560 indoor
unit).
● For 450 unit, two mainboards in the electric control
should set the code ENC1 to 8;
● For 560 unit, two mainboards in the electric control
should set the code to 9.
For the same indoor unit, every mainboard must be differ-
ent indoor unit addresses and network addresses.
When using central controller to control the indoor unit,
please pay attention to the address setting, as the 450
and 560 units have two or more mainboards. We
suggest setting the neighbor address for the mainboards
in the same indoor unit. When using a central controller for
controlling, mainboards in the same unit must be opened
and closed at the same time, for avoiding the unexpected
incident.
10
High pressure duct D4+
under heat mode
under heat mode
under heat mode
under heat mode
0/1 Definition
ON
means 0
ON
means 1
CAUTION
