Fan subassembly is more weightiness, please take careful
during teardown and installation, and keep from hurt by fan
subassembly.

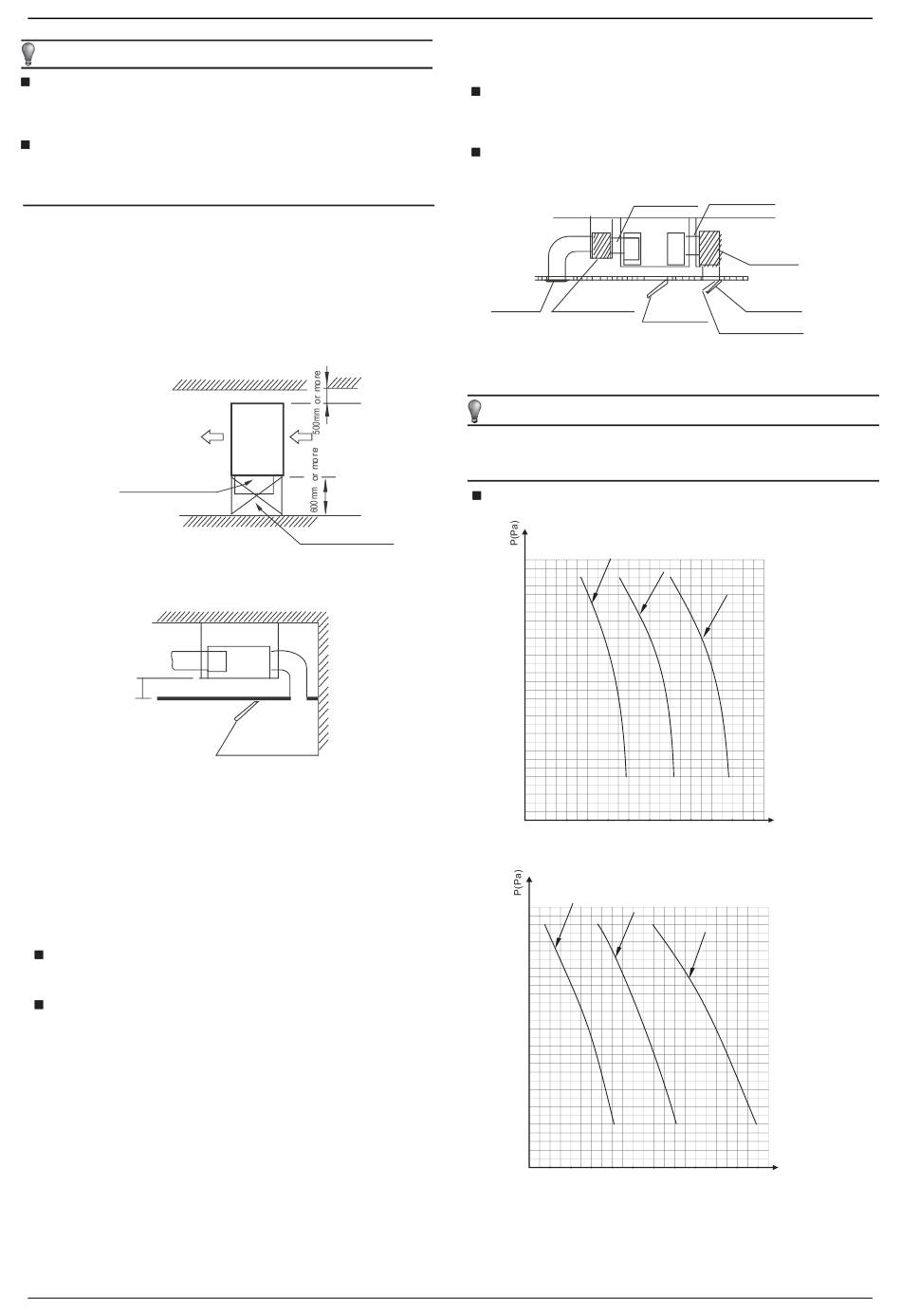

5. INSTALLATION SPACE

Confirm that there is enough room for installation and mainte-
nance.
Maintenance roomage
Maintenance roomage
Confirm the minimum
drain tilt is 1/100 or more

6. REFRIGERANT PIPE

Cover the pipe before connecting to keep rubbish, dust or other
impurities out.
Pipeline to connect the reference air conditioner outdoor unit
requirements.
NOTE
600mmX600mm
checking orifice
Fig.5-1
checking orifice
Fig.5-2

7. DUCT DESIGN

Cover the pipe before connecting to keep rubbish, dust or other
impurities out.
Key points of duct connection
Air outlet
Isolation booth
Other assemblies should be prepared on spot except air
conditioner main body.
High Static Pressure Type
(50Hz)
40KW/h
45KW/h (50Hz)
Low speed
300
280
260
240
220
200
180
160
140
120
100
80
60
40
20
0
4000 4500 5000 5500 6000
56KW/h (50Hz)
Low speed
300
280
260
240
220
200
180
160
140
120
100
80
60
40
20
0
6000 6500 7000 7500 8000
4
High pressure duct D4+
Canvas tie-in Canvas tie-in
Isolation booth
Air inlet
checking orifice
Air dust filter
NOTE
Midium speed
High speed
6500 7000 7500 8000 8500
3
Q(m /h)
Midium speed
High speed
8500 9000 9500 10000 10500 11000
3
Q(m /h)
Fig.7-3
Fig.7-1
Fig.7-2
