Vega505EE
Service manual - English
Valid from serial number:
660320001
60600003
SWL: 230 kg/505 lbs
Safety information
Visual inspection
Inspect lift functions regularly. Check to ensure that material is free from damage.
Before use
Ensure that the product is correctly assembled.
Check slingbar connection and safety latch function.
Check lift and base-width movement.
Check to ensure that the actuator is correctly installed.
Always read the user manual
Keep the user manual where it is accessible to users of the product.
Do not leave the user unattended during a lifting situation.
The lift unit may only be used by persons who have received instruction in the operation of the lift unit.
Manual nr: 632 En Rev 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vega505EE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Handicare Vega505EE

Summary of Contents for Handicare Vega505EE

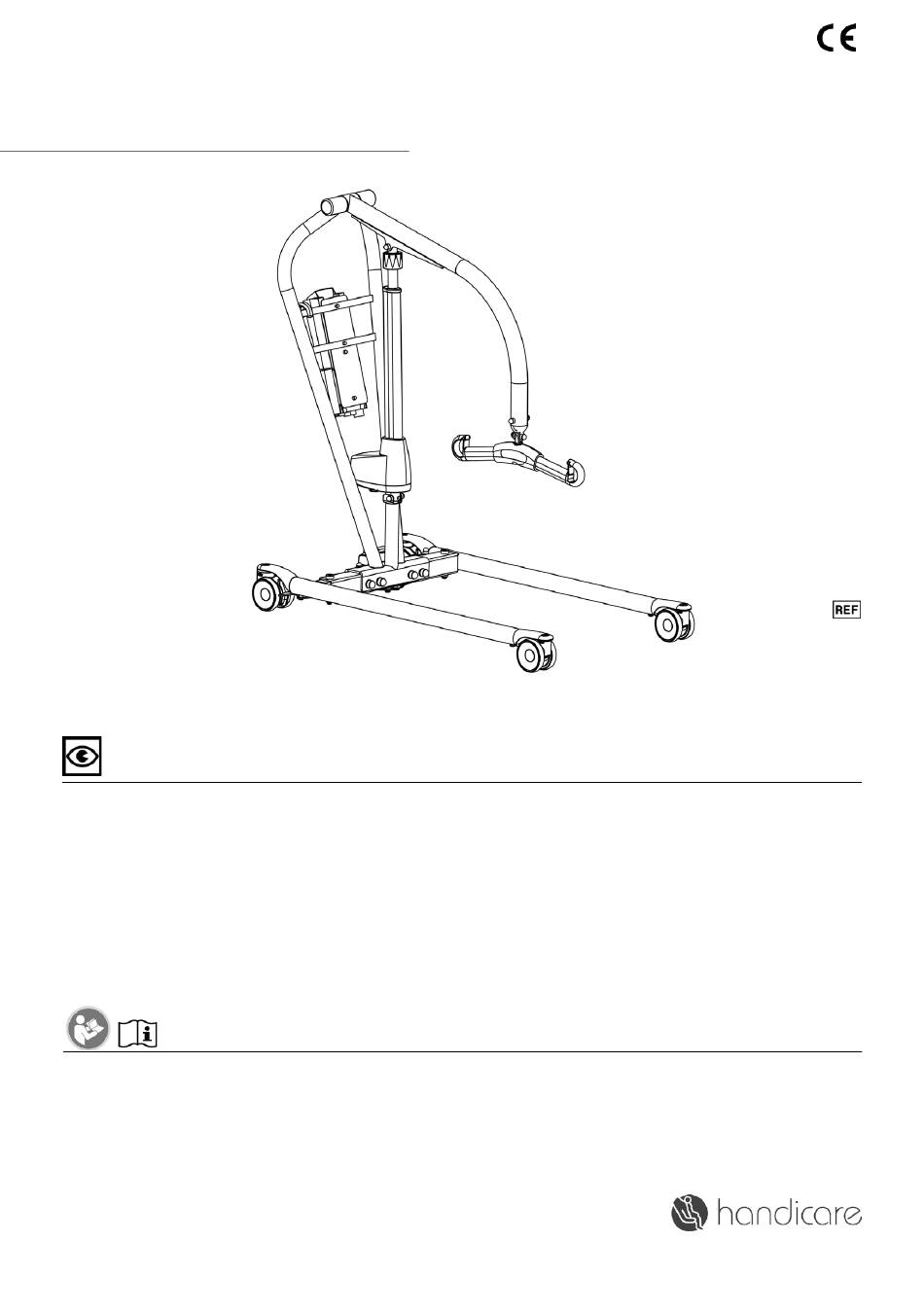

  • Page 1 Vega505EE Service manual - English Valid from serial number: 660320001 60600003 SWL: 230 kg/505 lbs Safety information Visual inspection Inspect lift functions regularly. Check to ensure that material is free from damage. Before use Ensure that the product is correctly assembled.

  • Page 2: Table Of Contents

    Table of contents Assembly -Final inspection ..................Using the product - Important information ................- Trouble-shooting ................... Exploded view and components .......... Spare part list ................11-12 Changing spare parts ............13-14 Periodic inspection - protocol ............15 - Description for periodic inspection ............16 - Periodic inspection - instruction ............

  • Page 3: Assembly

    Assembly Final inspection Check to ensure that no parts have been left in the packaging. Inspect the lift for signs of wear and damage. Check all four castor wheels and castor wheel locks. Check all connections and fixtures including screws and bolts. Check the emergency stop function by activating the emergency stop button, and then pressing either the up or down button.

  • Page 4: Using The Product

    • To ensure optimal function, the lift must be inspected regularly. See section on other maintenance details. • Warranty applies only if repairs or alterations are made to the product by personnel who are authorized by Handicare. • Using lifting accessories other than those approved can entail a risk.

  • Page 5: Exploded View And Components

    Exploded view and components S E R V I C E M A N U A L...
  • Page 6 Exploded view and components S E R V I C E M A N U A L...
  • Page 7 Exploded view and components S E R V I C E M A N U A L...
  • Page 8 Exploded view and components S E R V I C E M A N U A L...
  • Page 9 Exploded view and components S E R V I C E M A N U A L...
  • Page 10 Exploded view and components S E R V I C E M A N U A L...

  • Page 11: Spare Part List

    1 x Front castor 1 x Locking nut M10 80100002 Rear castor 100 mm 1 set 1 x Rear castor 1 x Locking nut M10 80100169 Control box CBJC Vega505EE 1 pce 1 x Control box 80100057 Battery CBJ 1 pce...
  • Page 12 Article no. Product Unit Components Images 80100156 Hand control HB32-4 1 pce 1 x Hand control 80100058 Sling bar lock, for Alu sling bar 1 set 10 x Cargo barrier 20 x Screw M5x12 80100048 Cable for charger EU 1 pce 1 x Charger cable 80100046 Cable for charger UK 1 pce...

  • Page 13: Changing Spare Parts

    Changing spare parts 80100001, 80100002 Front/rear castor 100 mm Using an Allen key, remove the screw that holds the castor in place. Replace the castor, apply Loctite 2701 or similar, and then secure the castor with the screw. 80100045, -46, -47, -48, -52, -59, -60, -61 Connect the charger cable to the control box, and then plug it into a wall socket.
  • Page 14 Tag loss befintligt batteri genom att lyfta det rakt upp ur hållaren på kontrollboxen. Montera det nya batteriet i hållaren. Kom ihåg att batteriet måste laddas minst fyra timmar innan första användning. 80100169 Control box CBJC Vega505EE Aktivera nödstoppen och koppla ur ställdon och handkontroll. Ta bort batteriet, skruva ur de två genomgående skruvarna och tag bort kontrollboxen.

  • Page 15: Periodic Inspection - Protocol

    Periodic inspection - protocol Lift type: Contract no: s/n: Name: Version: Address: Prod. year: Sling bar id.: Situation of use: Home Institution Other Comments: 1. Attention 2. Correct 3. Do not use! Base: Check for visible damage Check: Castor Brakes Screws Mast: Inspect the mast...

  • Page 16: Description For Periodic Inspection

    Description for periodic inspection S E R V I C E M A N U A L...

  • Page 17: Periodic Inspection - Instruction

    Periodic inspection - instruction Base -Check the base for visible damage to the surfaces, finish, etc. Castors -Roll the lift unloaded on the floor, check that the castors roll and turn freely. -Check that the castor fasteners are tight. Brakes -Lock the brakes.
  • Page 18 Battery and cable installations - Check battery and electrical cable. - Verify that all cables are properly inserted. Controlbox -Verify that all functions on the control panel are working Handcontrol -Verify that all functions on the handset are working. Emergency stop -Verify that the lift does not operate when emergency stop is pressed in.

  • Page 19: Maintenance

    -10 °C 700 hPa Service agreements Handicare offers the possibility of service agreements for maintenance and regular testing of your mobile lift. Contact your local Handicare representative. S E R V I C E M A N U A L...

  • Page 20: Symbols

    Symbols Read user manual May not be discarded in domestic waste The product complies with the requirements of the Medical Devices Directive 93/42/EEC. Type B, according to the degree of protection against electric shock. The device is intended for indoor use. Class lI equipment Always read the user manual Technical Information...

  • Page 21: Dimensions

    Dimensions All measurement are in mm/inch Tolerance +/- 5 mm/ 0.2” 668/26.3 250/9.8 685/26.9 637/25 675/26.5 925/36.4 1210/47.6 S E R V I C E M A N U A L...
  • Page 22 All measurement are in mm/inch Tolerance +/- 5 mm/ 0.2” 670/26.3 - 1065/41.9 1240 550/21.6 - 925/36.4 1141 860/33.8 1031 700/27.5 490/19.3 310/12.2 350/13.7-380/14.9 350-380 • Turning radius is 615 mm/24.2 inch • The total weight of the lift is 42,8 kg •...
  • Page 23 S E R V I C E M A N U A L...
  • Page 24 Handicare AB Torshamnsgatan 35 SE-164 40 Kista, SWEDEN Tel: +46 (0)8-557 62 200 Fax:+46 (0)8-557 62 299 E-mail: info@handicare.se www.handicare.com Handicare AB is quality and environmentcertified in accordance with ISO 9001, ISO 13485 and ISO 14001.
