Vega505EE
SystemRoMedic
TM
A
B
C
D
E
Art. no.
extension
00
02
03
04
F
07
08
09 (special)
Manual nr: 630 Rev 12
1
2
RAL code
Color
Stainless steel polished
Blanc
RAL 9010
White
RAL9005
Black
RAL3003
Red
RAL5002
Blue
RAL9001
Créme white
Divers
Color
1
2
SWL: 230 kg / 505 Ibs
3
4
User manual – English
3
4
5
REV.
POS.
60600003
5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vega505EE and is the answer not in the manual?

Questions and answers

Related Manuals for Handicare Vega505EE

Summary of Contents for Handicare Vega505EE

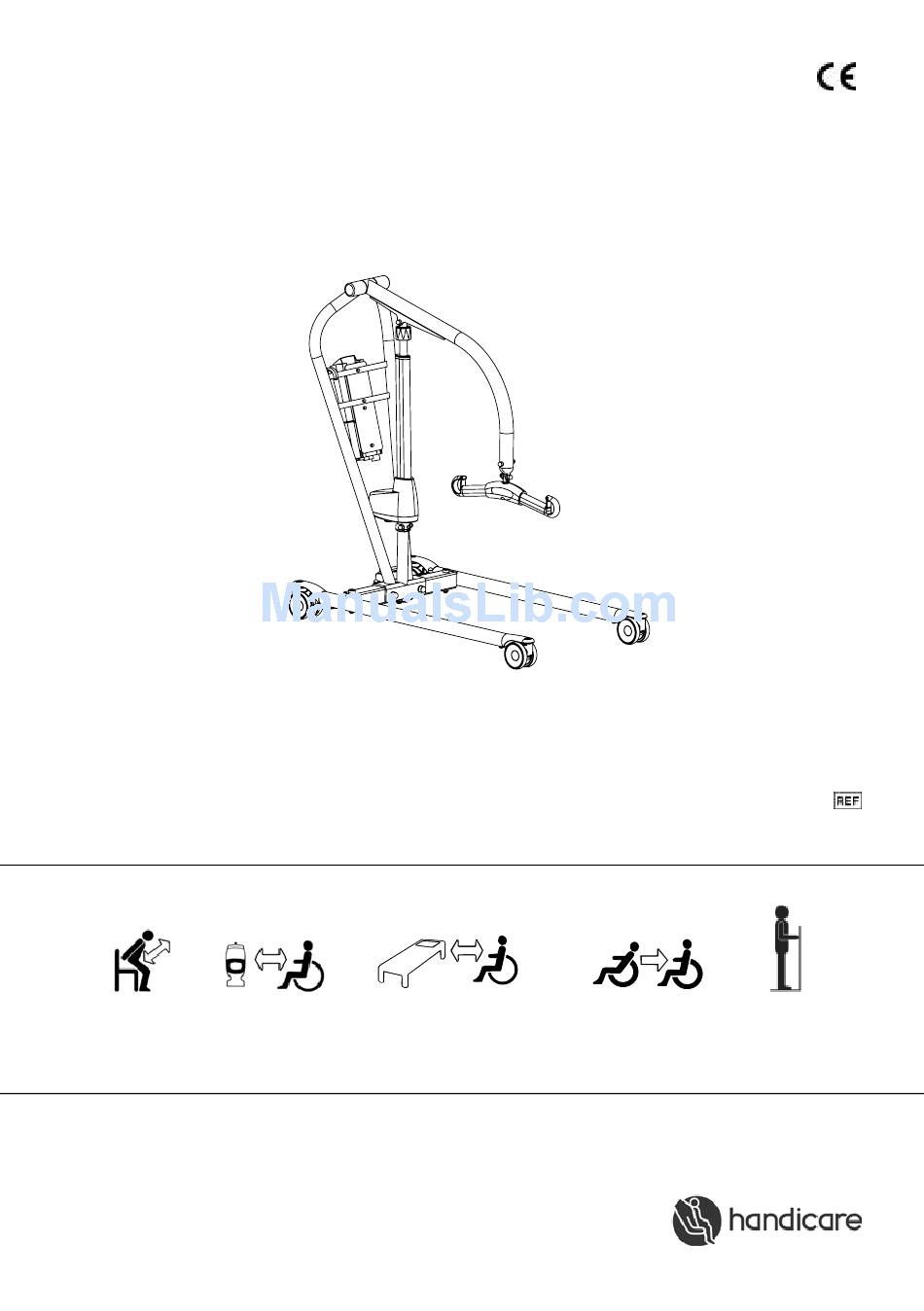

  • Page 1 Vega505EE SystemRoMedic User manual – English REV. POS. Art. no. RAL code Color extension Stainless steel polished Blanc RAL 9010 White RAL9005 Black 60600003 RAL3003 RAL5002 Blue RAL9001 Créme white 09 (special) Divers Color SWL: 230 kg / 505 Ibs...

  • Page 2: Safety Information

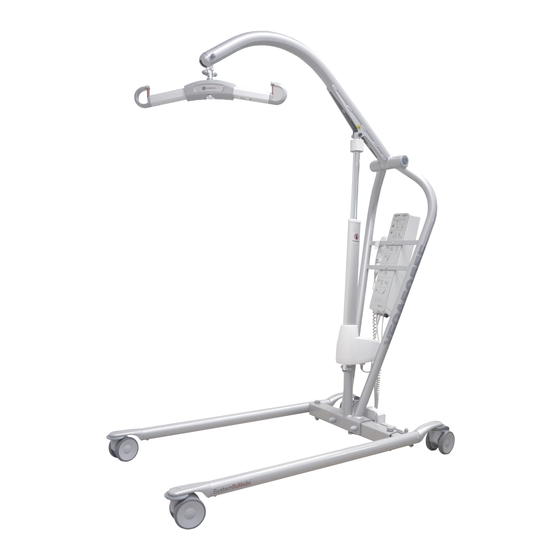

    Hand control Vega505EE is a mobile patient lift adapted for safe and easy lifting of users weighing up to 230 kg/505 lbs. Vega505EE features a unique design with a lift arm that can be both raised to an almost upright position and lowered all the way...
  • Page 3 SHEET 1 OF 1 This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.

  • Page 4: Final Inspection

    Final inspection Check to ensure that no parts have been left in the packaging. Inspect the lift for signs of wear and damage. Check all four castor wheels and castor wheel locks. Check all connections and fixtures including screws and bolts. Check the emergency stop function by activating the emergency stop button, and then pressing either the up or down button.

  • Page 5: Using The Product

    • To ensure optimal function, the lift must be inspected regularly. See section on other maintenance details. • Warranty applies only if repairs or alterations are made to the product by personnel who are authorized by Handicare. • Using lifting accessories other than those approved can entail a risk.

  • Page 6: Charging Batteries

    Charging batteries A tone sounding when using the lift indicates that the battery need recharging. Charge the lift after use to ensure that the battery is always fully charged. Lock the castor wheels when charging the battery. 1. Connect the charging cable to a power outlet and in the connection for charger cable. The symbol for charging is shown on the display.

  • Page 7: Hand Control

    Service information read-out Basic service information can be read out on the display. To get the service information on the display please press the lift arm up button for half a second. The information will be shown for ½ minute or until other buttons are activated. •...

  • Page 8: Emergency Stop

    Emergency stop To activate emergency stop Depress the red emergency stop button on the control box. Resetting Turn the button in the direction of the arrows until the button pops out. To prevent battery discharge, we recommend that the emergency-stop button is pressed in when the lift is not in use.
  • Page 9 Accessories Lifting slings Handicare’s SystemRoMedic™ line includes a wide range of functional and comfortable, high-quality lifting slings that are adapted for all types of lifting and for users with different needs. The lifting slings are available in several materials and in sizes ranging from XXS to XXL.

  • Page 10: Maintenance

    +50 °C -10 °C 700 hPa Service agreements Handicare offers the possibility of service agreements for maintenance and regular testing of your mobile lift. Contact your local Handicare representative. U S E R M A N U A L SystemRoMedic...
  • Page 11 Symbols White/blue Read user manual May not be discarded in domestic waste The product complies with the requirements of the Medical Devices Directive 93/42/EEC Type B, according to the degree of protection against electric shock The device is intended for indoor use Class lI equipment Important Be observant...

  • Page 12: Technical Information

    Technical Information Lifting speed 37 mm/s without load. Batteries Two 12 V, 2.9 Ah valve-regulated, sealed, lead accumulator (gel-type batteries) Charger Max. 400 mA Motor (mast) DC 24 V, 9,7 Amp. IP X4. Operationtime: 10% at maximum continous operation of 2 minutes, maximum 5 cycles per minute.
  • Page 13 Dimensions Vega505EE 668/26.3 250/9.8 685/26.9 637/25 675/26.5 925/36.4 1210/47.6 All measurement are in mm/inch U S E R M A N U A L SystemRoMedic...
  • Page 14 Dimensions Vega505EE 670/26.3 - 1065/41.9 1240 550/21.6 - 925/36.4 1141 860/33.8 1031 700/27.5 490/19.3 310/12.2 350/13.7-380/14.9 350-380 All measurement are in mm/inch • Turning radius is 615 mm/24.2 inch • The total weight of the lift is 42,8 kg • The weight of the heaviest part is 25,8 kg •...
