5G WiFi Module Installation

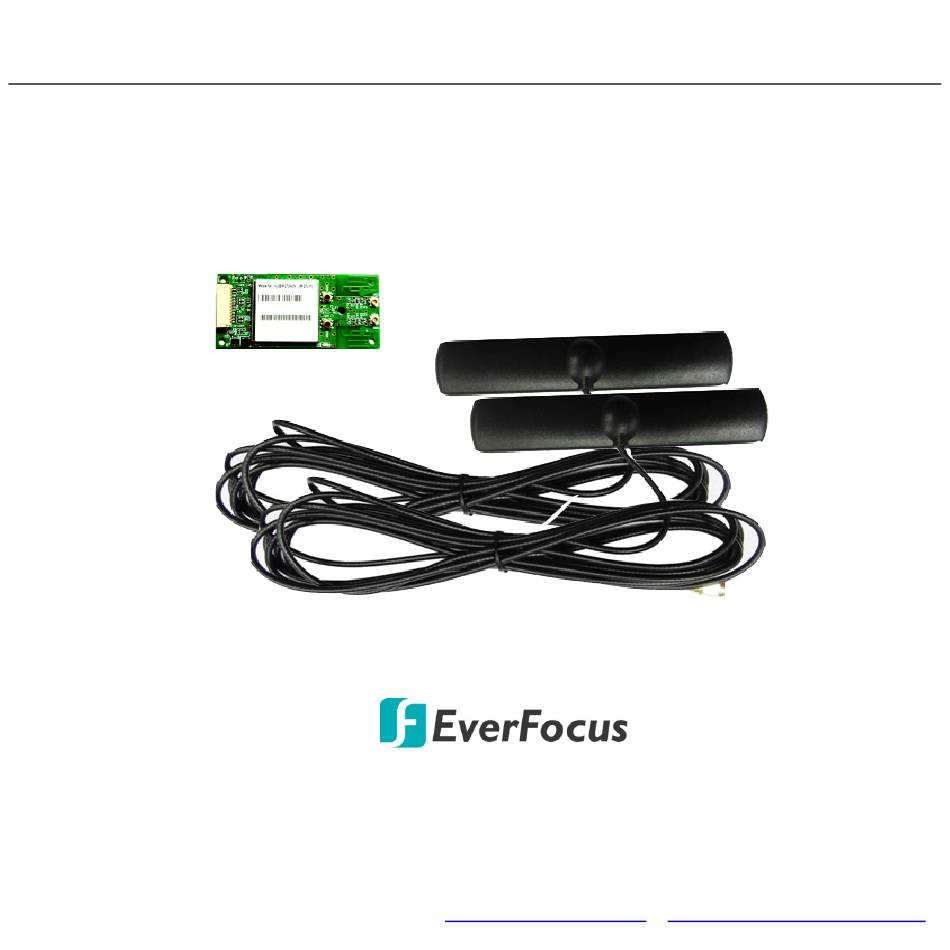

Quick Installation Guide
WiFi Antenna
WiFi Module
Copyright © EverFocus Electronics Corporation
Release Date: March, 2018
EverFocus Taiwan 12F-1, No.79, Sec. 1, Shin-Tai Wu Road, Hsi-Chih, New Taipei City, Taiwan
TEL: +886 2 2698 2334 FAX: +886 2 2698 2380
www.everfocus.com.tw marketing@everfocus.com.tw
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for EverFocus HD Series
Summary of Contents for EverFocus HD Series
- Page 1 Quick Installation Guide WiFi Antenna WiFi Module Copyright © EverFocus Electronics Corporation Release Date: March, 2018 EverFocus Taiwan 12F-1, No.79, Sec. 1, Shin-Tai Wu Road, Hsi-Chih, New Taipei City, Taiwan TEL: +886 2 2698 2334 FAX: +886 2 2698 2380 www.everfocus.com.tw marketing@everfocus.com.tw...
-
Page 2: Supported Models
1. Supported Models The 5G WiFi module supports the following EverFocus mobile DVRs: HD Series FHD Series One-DIN Series EMV800 HD EMV400S FHD EMV400SSD EMV1200 HD EMV400 FHD EMV800SSD EMV800 FHD EMV402S EMV1200 FHD EMV802S 2. Package Content Item Image... -
Page 3: Wifi Module Installation
3. WiFi Module Installation Except for EMV400S FHD, the way to install WiFi module onto all the Mobile DVRs is the same. Note: EMV400S FHD does not feature an I/O board inside the Mobile DVR. We will introduce how to install WiFi module onto EMV400S FHD separately. Please refer to 4. - Page 4 3. Screw the Metal Plate onto the I/O board. a. Screw the 2 Copper Pillars onto the pillars on the I/O board. b. Screw the Metal Plate onto the Copper Pillars using the supplied 2 Pillar Screws. Metal Plate 4. Screw the 5G WiFi Module onto the Metal Plate using the supplied 4 Module Screws.
- Page 5 5. Use the Module Cable to connect the 5G WiFi Module to the I/O board. Module Cable 6. Connect the WiFi Antenna to the 5G WiFi Module. a. Connect one end of the RF Cables to the 5G WiFi Module. RF Cable RF Cable b.
- Page 6 c. Insert the other end of RF Cables through both of the antenna holes (Ant.2 and Ant.4), and then screw the RF Cables using the supplied Rings and Hexagon Nuts. Hexagon Nut Ring d. Screw the WiFi Antenna to the RF Cables (Ant.2 and Ant.4). 7.
- Page 7 4. WiFi Module Installation on EMV400S FHD 1. Unscrew the four screws on the rear-panel. Pull out the Main Board from the housing. 2. Screw the Metal Plate onto the Pillars on the Main Board. a. Find the 2 Pillars on the Main Board and then place the 2 Plastic Spacers on the 2 Pillars.
- Page 8 b. Screw the Metal Plate onto the Pillars using the supplied 2 Pillar Screws. Metal Plate 3. Screw the 5G WiFi Module onto the Metal Plate using the supplied 3 Module Screws. 5G WiFi Module Metal Plate...
- Page 9 4. Use the Module Cable to connect the 5G WiFi Module to the Main Board. Module Cable 5. Connect the WiFi Antenna to the 5G WiFi Module. a. Connect one end of the RF Cables to the 5G WiFi Module. RF Cable RF Cable...
- Page 10 b. On the rear-panel of the mobile DVR, remove the WiFi Antenna Plugs (Ant.2 and Ant.3). c. Insert the other end of RF Cables through both of the antenna holes (Ant.2 and Ant.3), and then screw the RF Cables using the supplied Rings and Hexagon Nuts.
- Page 11 5. Appendix: Antenna Plugs The table below indicates the function of each Antenna Plug supported by each model. Model Ant1 Ant2 Ant3 Ant4 EMV800 HD* 3G/4G 4G/WiFi WiFi EMV1200 HD* 3G/4G 4G/WiFi WiFi EMV400 FHD* 3G/4G 4G/WiFi WiFi EMV400S FHD* 3G/4G 4G/WiFi WiFi...
- Page 12 FAX: +81 3 5625 8189 www.everfocus.com www.everfocus.co.jp sales@everfocus.com info@everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed and und hergestellt mit qualitativ manufactured with high quality materials hochwertigen Materialien und and components which can be recycled Komponenten, die recycelt und wieder and reused.
